ABB PVS-100 User Manual

- 88 -
000839BG
5 - Installation
Ethernet connection
The ethernet connection allows a direct data transfer to the ABB server
for monitoring purpose.
When the inverter will be powered on, network parameters are
automatically set and the inverter start transmissing telemetry data to the
Aurora Vision
®
CLOUD platform.
The connection of the ethernet communication cable must be made on
the specic connectors
39 40
located on the Communication and control
board
28
inside the wiring box
02
. If the inverters of the plant need to be
connected in daisy chain or ring conguration use both connectors.
The cable should be compliant to the following specication:
• Cable type: Patch or Cross type, 100BaseTx, CAT5e (or higher) with
shielding STP or FTP.
• UV-resistant if used outdoors
• Type of plug: metallic shielded RJ45
• The maximum length that can reach these cables is 100 meters, and
it is always advisable not to let them pass by the power cords to avoid
interference with data transmission.
• Maximum inverters number connected over one single daisy chain is 40
In order to avoid ground loop (that could create communication issues) the shield of any
Ethernet cable must be connected to the RJ45 plug in only one side, the other side of the
shield should be leaved oating. This could be guaranteed by crimping the shield or the screen
of the ethernet cable to the RJ45 connectors only at one end of each cables.

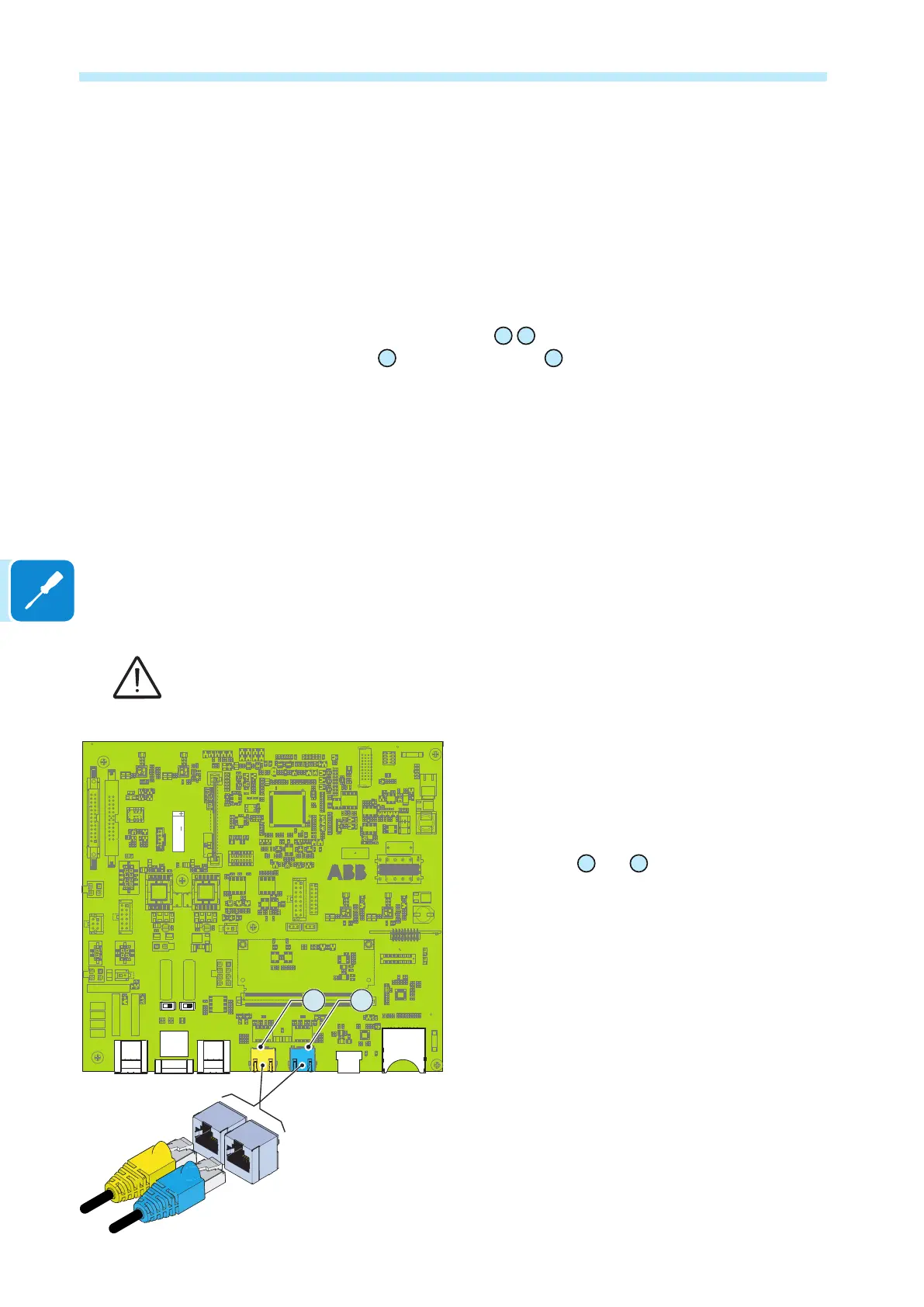

Connection of ethernet cable is made trought the two
RJ45 connectors
39
and
40
.
The two RJ45 connectors LAN1 and LAN2
are equivalent to each other and can be used
interchangeably for the input or for the output of the
line in realising the connection of the inverters.
J2 X1
X2
S5S4
J7
J1
J5 J6
1
2
1
8
7
432
ZGN.V2Q15.2
39 40

ABB PVS-100 Specifications

General

Rated AC power output	100 kW
AC Voltage	400 V
Topology	Transformerless
Cooling Method	Forced Air
Operating temperature range	-25°C to +60°C (derating above 45°C)
Cooling	Forced air
Frequency	50/60 Hz
