ABB PVS-100 User Manual

- 27 -
000826AG
2 - Characteristics

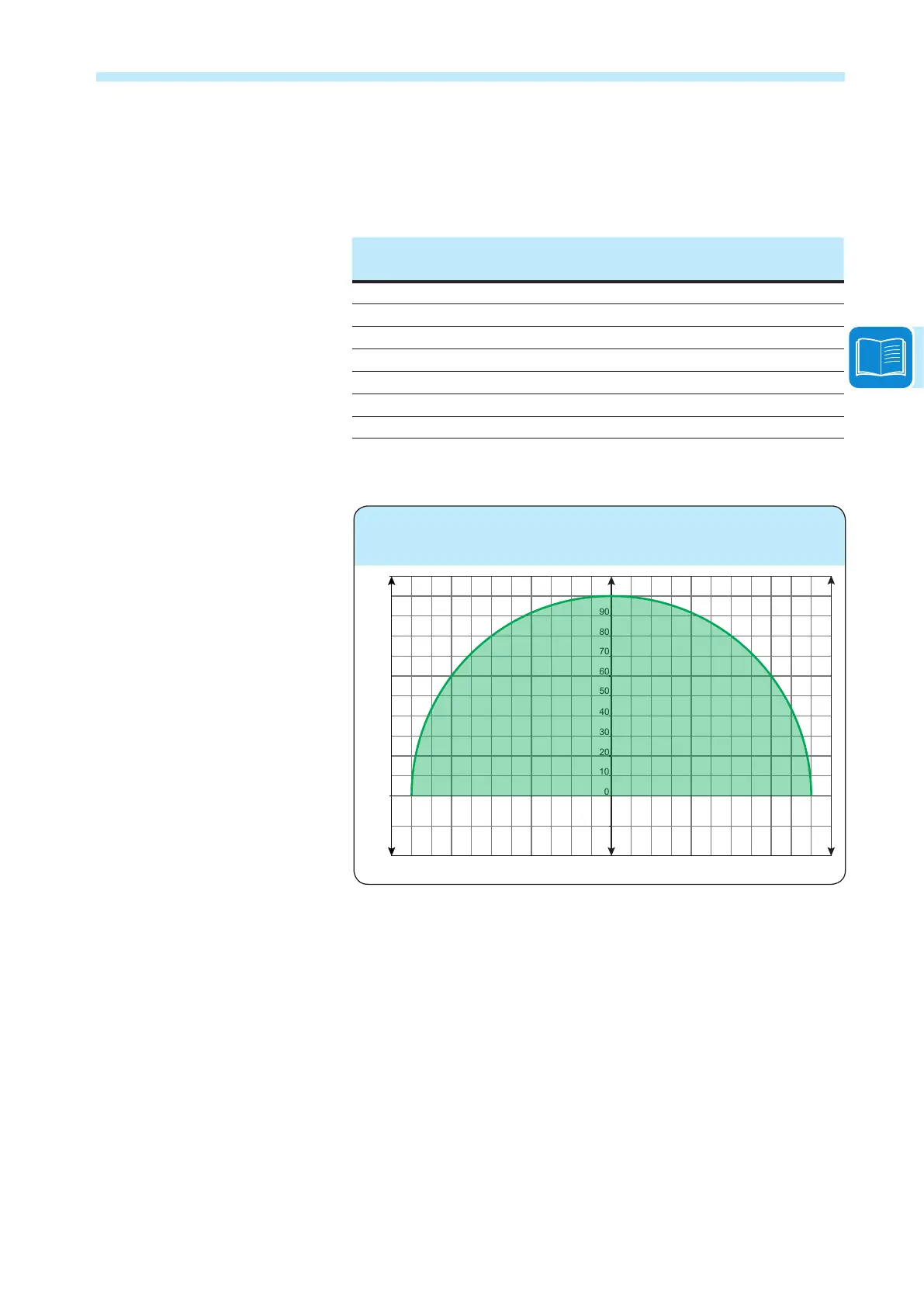

P- Q curve capability
Based on the standard network on the country the capability of P-Q curve
can be reduced.
Test conditions
PVS-100-TL PVS-120-TL
Ambient temperature *40 °C
Rated output voltage (Un) 400 Vac 480 Vac
Rated active power (Pn) 100 kW 120 kW
Nominal apparent power (Sn) 100 kVA 120 kVA
Rated reactive power (Qn) 100 kVAR 120 kVAR
Cosphi -0 ... 1 ... 0 +
Capability with grid voltage 1.0xUn
*Thermal derating could be occured if input voltage is over 800V.
P (%)
-20
-10
Q/Pn (%)
P (%)
0
10
20
30
40
50
60
70
90
100
80
-100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 +10 +20 +30 +40 +50 +60 +70 +80 +90 +100
Capability P-Q
