4 - Lifting and transport

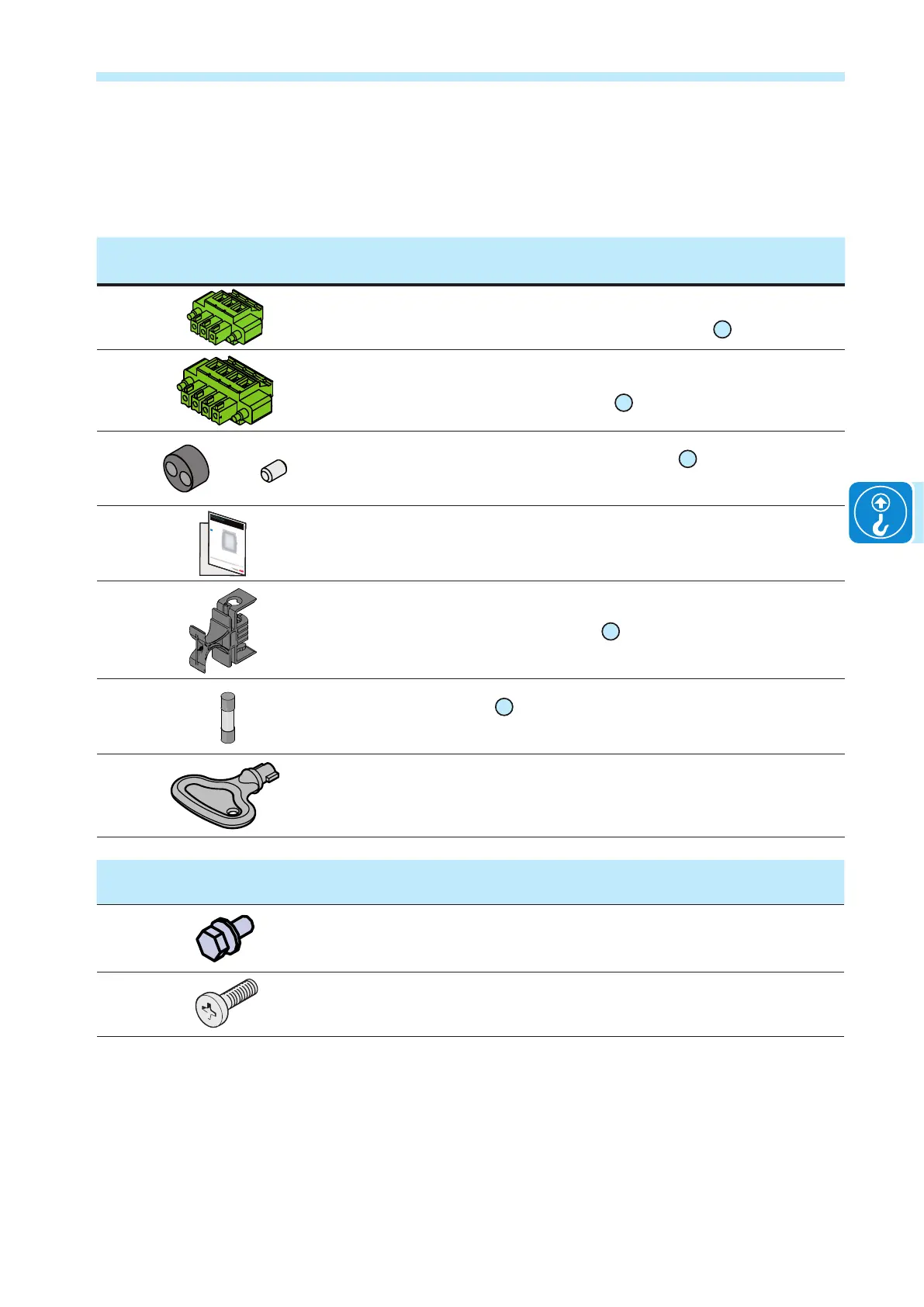

List of components supplied
The following list shown the supplied components required to correctly
install and connect the inverter.
Components available in the kit supplied with the wiring box Qty
Connector for connection of the congurable relay, aux re-
lay and RS485 (pre-installed on communication board
28
)
4
Connector for connecting the Remote ON/OFF signal
(pre-installed on communication board
28
)
1
Two-hole gasket for M25 signal cable glands
12
and
cap
2 + 2
In addition to what is explained in this guide, the safety and installation information provided in the installation manual must be read and followed.
The technical documentation and the interface and management software for the product are available at the website.
XXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXX
ABB solar inverters
Technical documentation -
Fuse holder for positive string fuses
19
24
Positive string fuses
19
(
gPV - 1000Vdc - 15A)
24
Key tool for front cover quarter cam-lock 1
Components available in the kit supplied with the brackets Qty
M8 screws with washers for mechanically securing the
half-brackets
2
M6 screws for mechanically securing the bracket with
the wiring box
2
