ABB PVS-100 User Manual

- 17 -
000824AG
2 - Characteristics

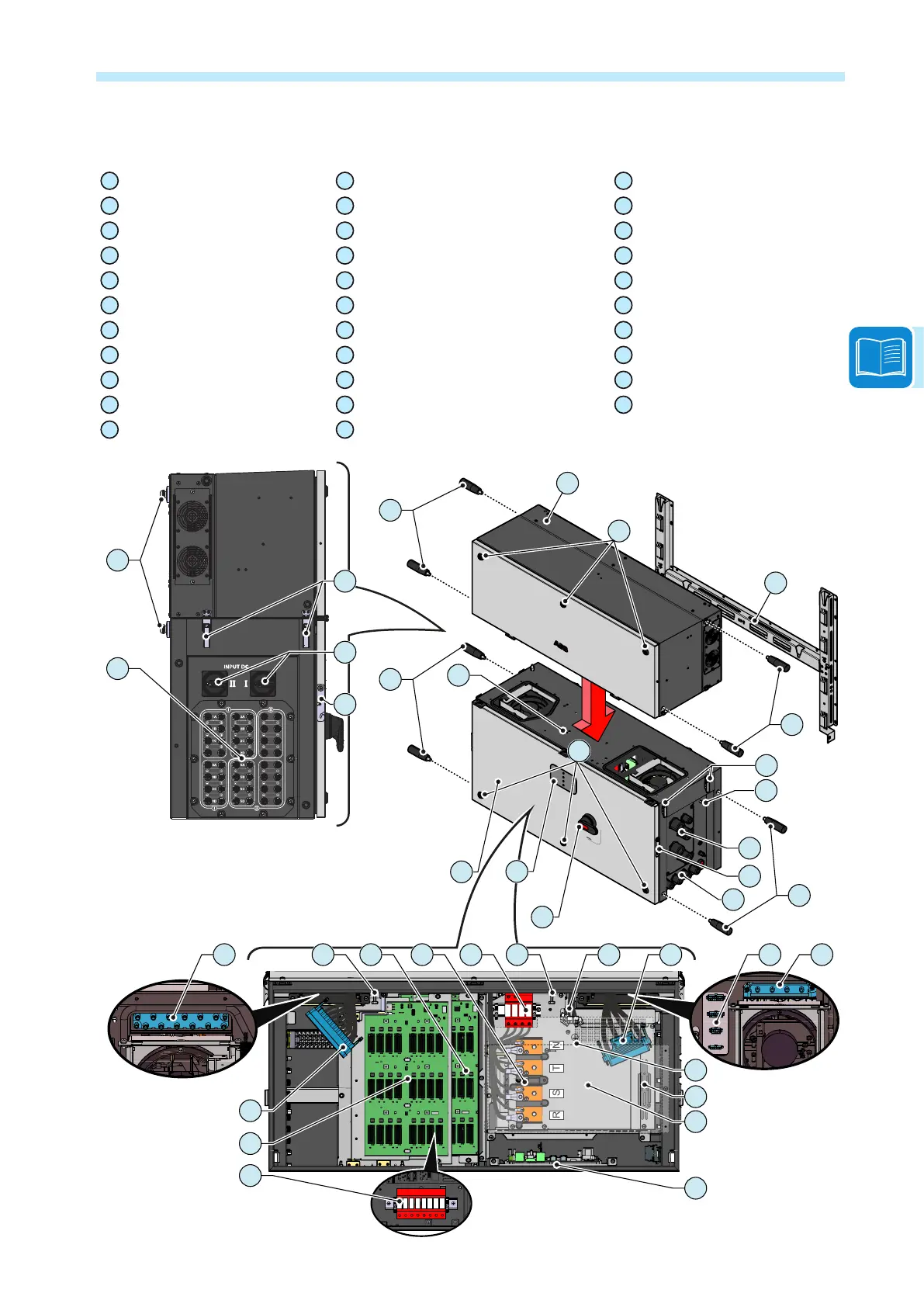

List of main reference components
01
Power module
12
Service cable glands
23
Interface signal connectors (male)
02
Wiring box
13
Rear pins for bracket assembly
24
AC interface power connector (male)
03
Mounting bracket
14
Cover support brackets
25
Protective earth point (int.)
04
Handles
15
DC disconnect switches
26
Multi-functional tool
05
Cover quarter cam locks
16
DC input quick t connectors
27
AC protective shield
06
Side latch
17
DC interface connector (male)
28
Communication board
07
Front wiring box cover
18
Junction screws
29
DC interface connector (female)
08
Status LEDs
19
Positive string fuses plate
30
Interface signal connectors (female)
09
AC disconnect switch (-SX2, -SY2 only)
20
Negative string fuses (-SX2, -SY2 only) plate
31
AC interface power connector (female)
10
Protective earth point (ext.)
21
AC connection busbar
32
DC overvoltage surge arresters
11
AC panel
22
AC overvoltage surge arresters
PVS
R S T N
6A
6B
6C
6D
4A
4B
4C
4D1D
03
01
05
05
04
04
06
04
28
25
26
27
23 2429
04
07
08
09
11
14
10
12
14
02
06
15
13
16
17
19
32
18 1820 21 22
3130

ABB PVS-100 Specifications

General

Rated AC power output	100 kW
AC Voltage	400 V
Topology	Transformerless
Cooling Method	Forced Air
Operating temperature range	-25°C to +60°C (derating above 45°C)
Cooling	Forced air
Frequency	50/60 Hz
