ABB PVS-100 - Storage; Weight of the Modules of the Equipment

- 44 -
000850BG
4 - Lifting and transport
Storage

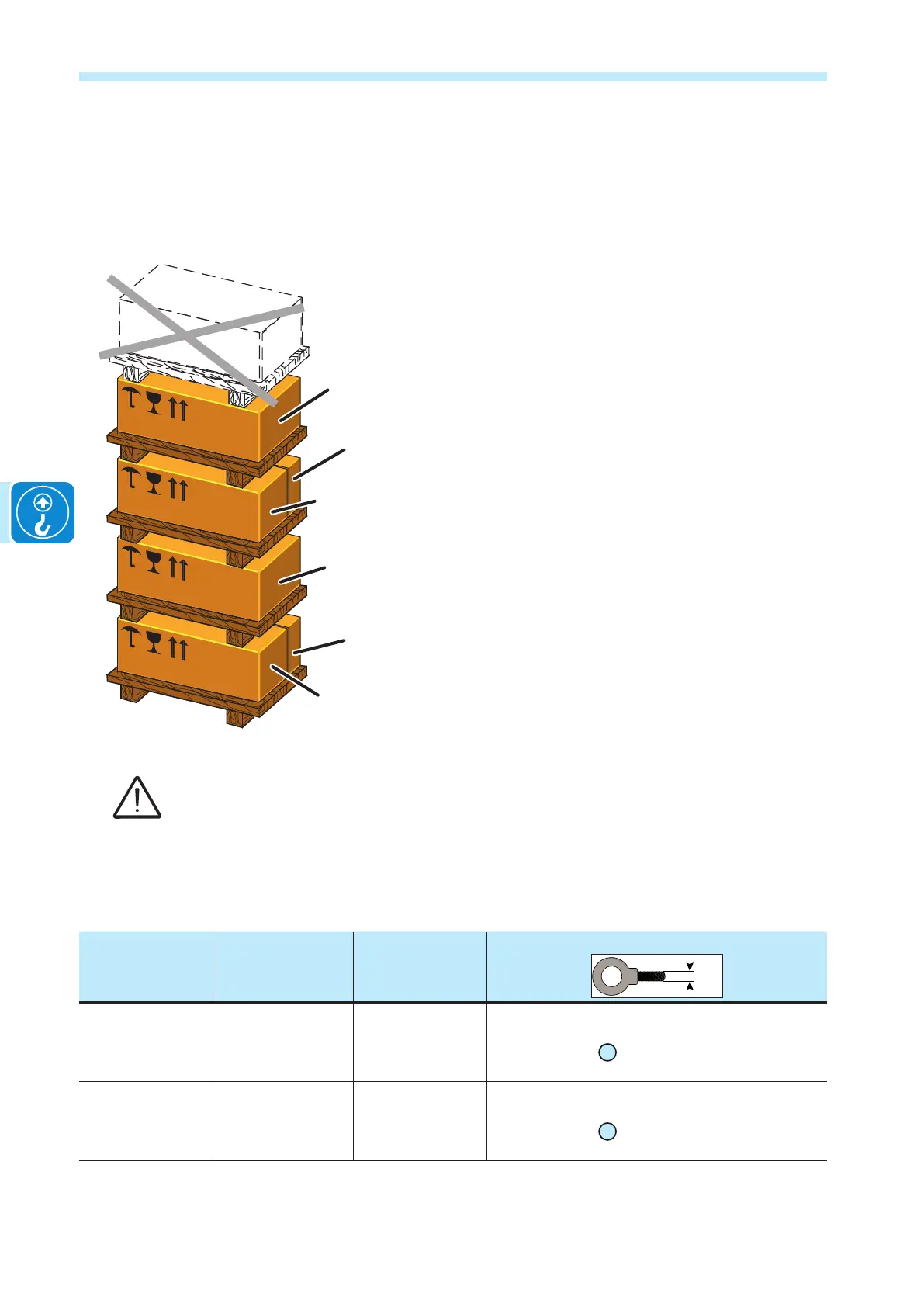

If the package with the power module part is stored correctly, it can
withstand a maximum load of 2 stacked units (power module+wiring
box+bracket).
DO NOT stack with equipment or products other than those indicated.
Accessory components are in separate packages and can be piled separately
Weight of the modules of the equipment
Table: Weights Weight
(kg)
Lifting points
(n°#)
Holes or Eyebolts UNI2947
ø M
(mm)
Power module 70 kg 4
M 12
kit of handles
04
and eyebolts (to be ordered)
Wiring box ~55 kg 4
M 12
kit of handles
04
and eyebolts (to be ordered)
Wiring
box
Bracket
Power
Module
Wiring
box
Bracket
Power
Module
