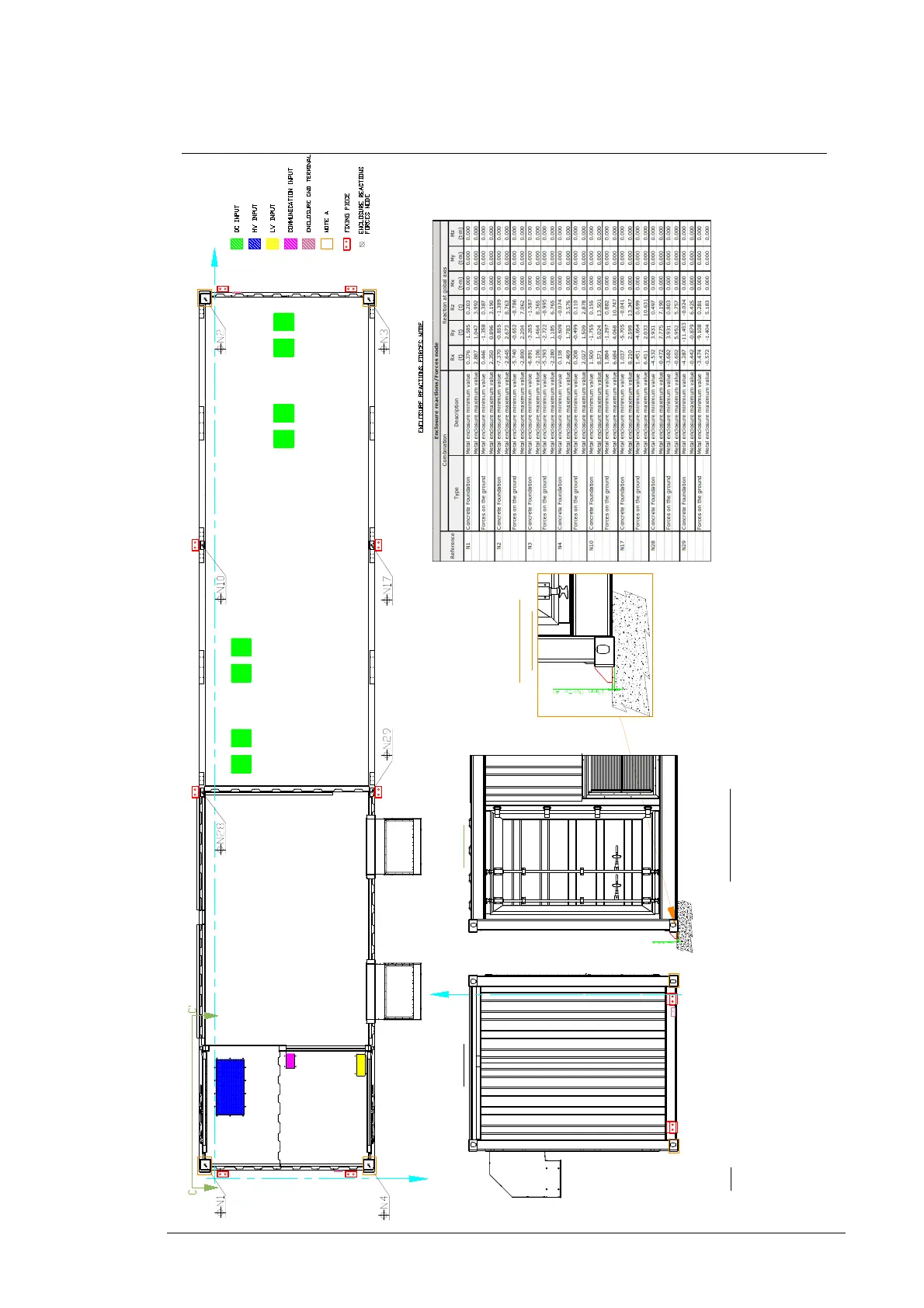

CORNER DETAIL
(See Note A)
+Z
SITE REQUIREMENTS
Place the MW Smart Solar Station a little higher than the surroundings to prevent corrosion caused by surface water collecting against the substation.
- Tilt the surface of the surrounding ground min. 3 cm per meter. This makes sure that there is a proper flow of the surface water away from the substation.
- Consider the local conditions such as frost, rain (humidity) and drought.
The MW Smart Solar Station is heavy. Pay attention to the proper planning and constructing of the foundation. Improper foundation may cause settling of the substation, difficulties to open the doors, etc.
Measure the level of the foundation and the tilting of the surface of the surrounding ground around the foundation. Do not place substation too low!
Measure the straightness of the foundation. Maximum tilting of the foundation surface below the substation is 0.1 degrees.
Notes:
(A) The container perimeter must rests on foundation, so is
necesarry lower of the corner container according to
CORNER DETAIL above.
LEFT SIDE C-C` View
+X
+Y
