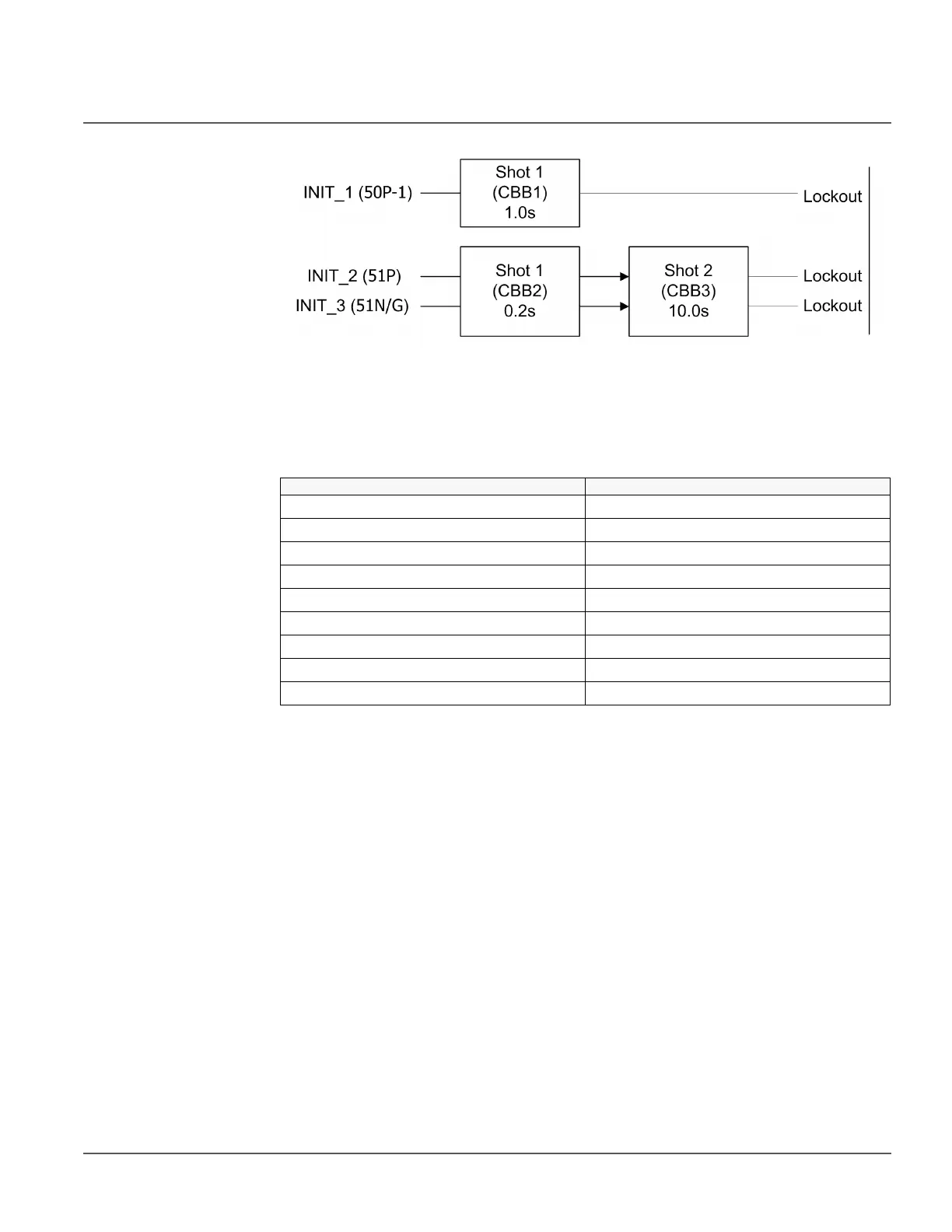

Figure 165: Three shots with three initiation lines
If the sequence is initiated from the INIT_1 line, that is, the overcurrent protection high
stage, the sequence is one shot long. On the other hand, if the sequence is initiated from
the INIT_2 or INIT_3 lines, the sequence is two shots long.
Table 296: Settings for configuration example 2
Setting name Setting value
Shot number CBB1 1
Init signals CBB1 1 (line 1)
First reclose time 1.0s (an example)
Shot number CBB2 1
Init signals CBB2 6 (lines 2 and 3 = 2+4 = 6)
Second reclose time 0.2s (an example)
Shot number CBB3 2
Init signals CBB3 6 (lines 2 and 3 = 2+4 = 6)
Third reclose time 10.0s
