ABB RER620

To Next Page

To Previous Page

1MAC309294-MB F Section 9

Other functions

RER620 439

Technical Manual

9.2.3 Connections

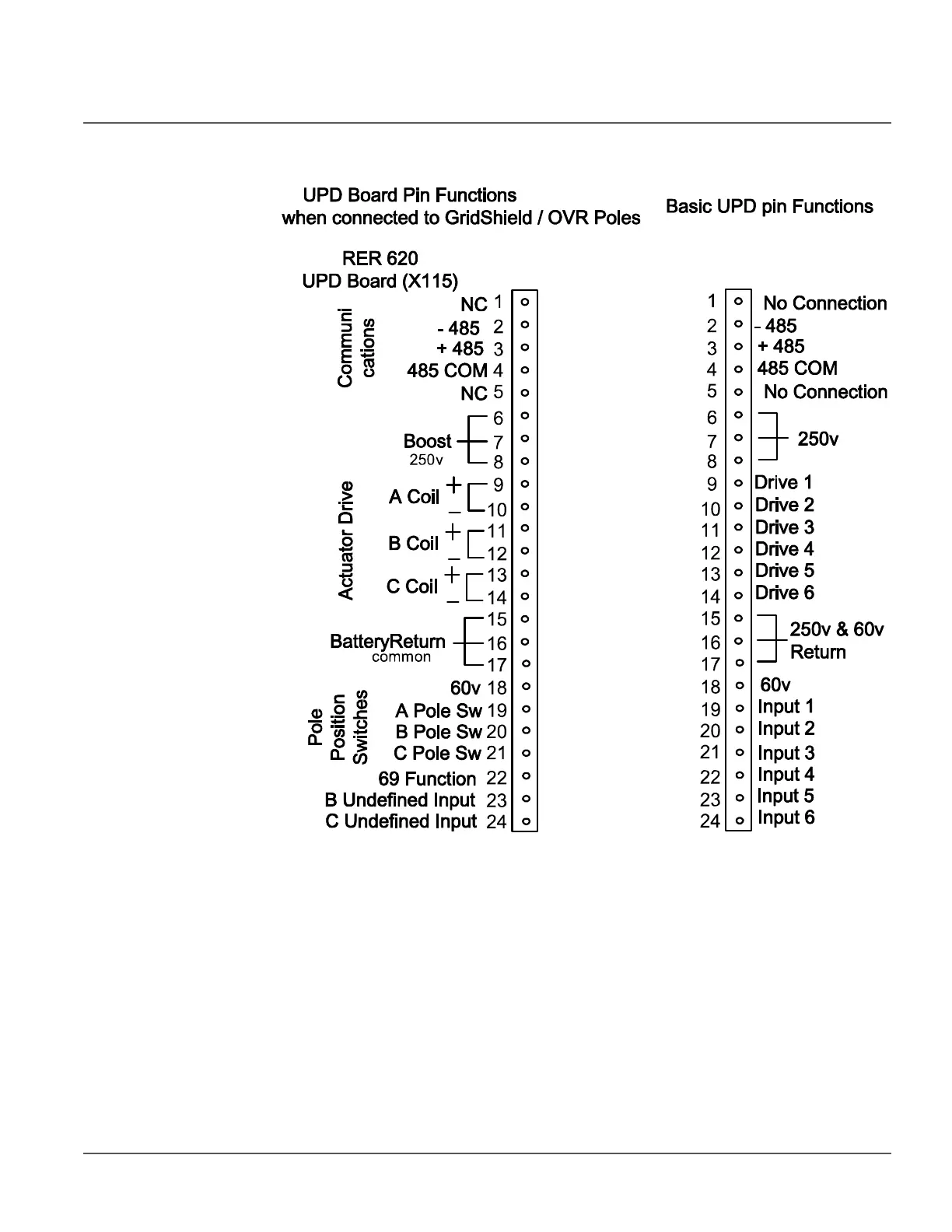

Figure 227: Universal Power Drive (UPD) connections
