9.6.4 Settings
Table 408: SPCGGIO Outputs 1…16
9.7 Set-reset flip flops SRGAPC
9.7.1 Function block

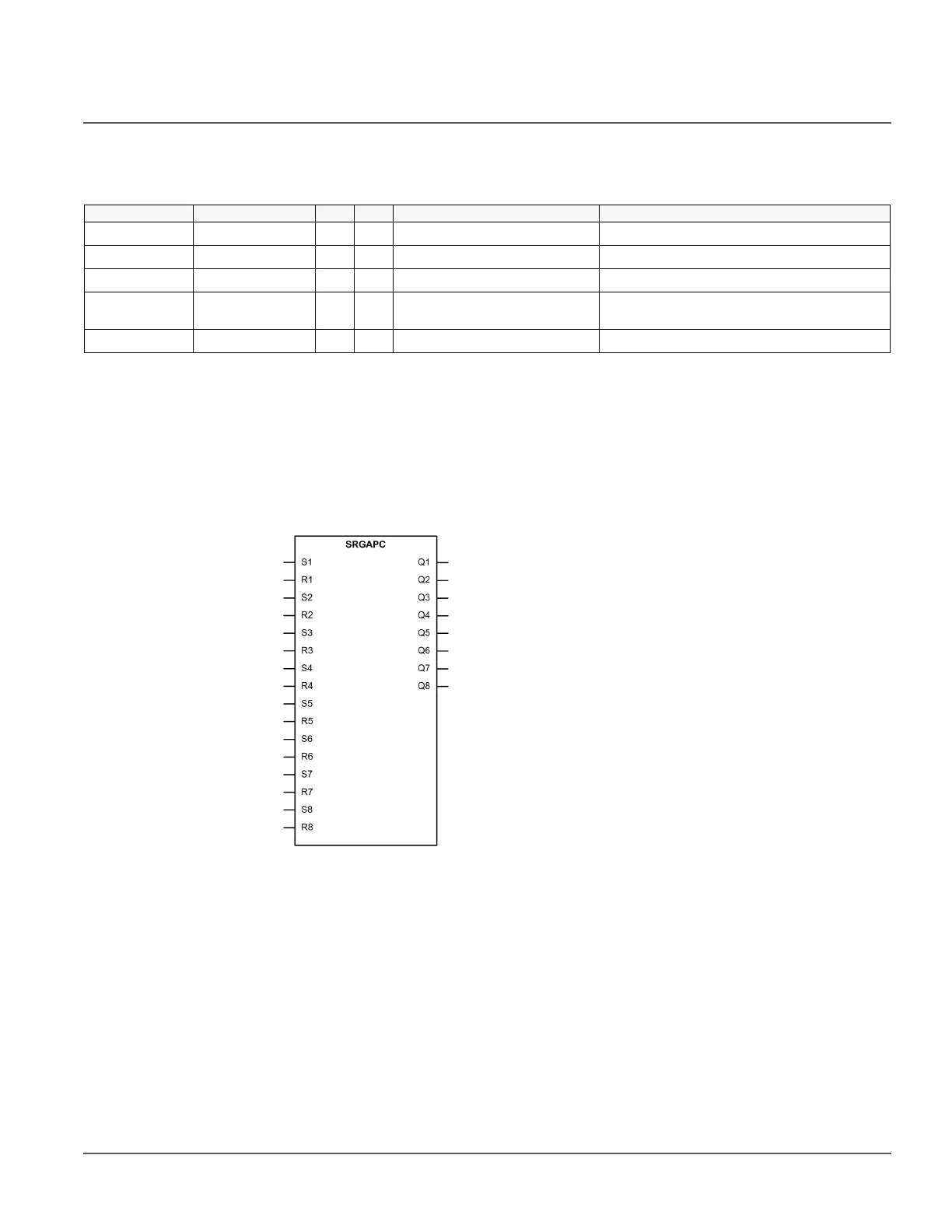

Figure 233: Function block
9.7.2 Functionality
The SRGAPC function block is a simple SR flip-flop with a memory that can be set or that
can reset an output from the S# or R# inputs, respectively. SRGAPC contains eight
independent set-reset flip-flop latches where the SET input has the higher priority over the
RESET input. The status of each Q# output is retained in the nonvolatile memory. The
individual reset for each Q# output is available on the LHMI or through tool via
communication.
Parameter Values Unit Step Default Description
Operation mode Off
Toggle
Pulsed Off Mode of operation for the function
Pulse length 10…3600000 ms 1000 Length of the output pulse generated by the
function
Description SPCGGIO Output SPCGGIO Output User defined Description
