9.4 Move function block MVGAPC
9.4.1 Function block

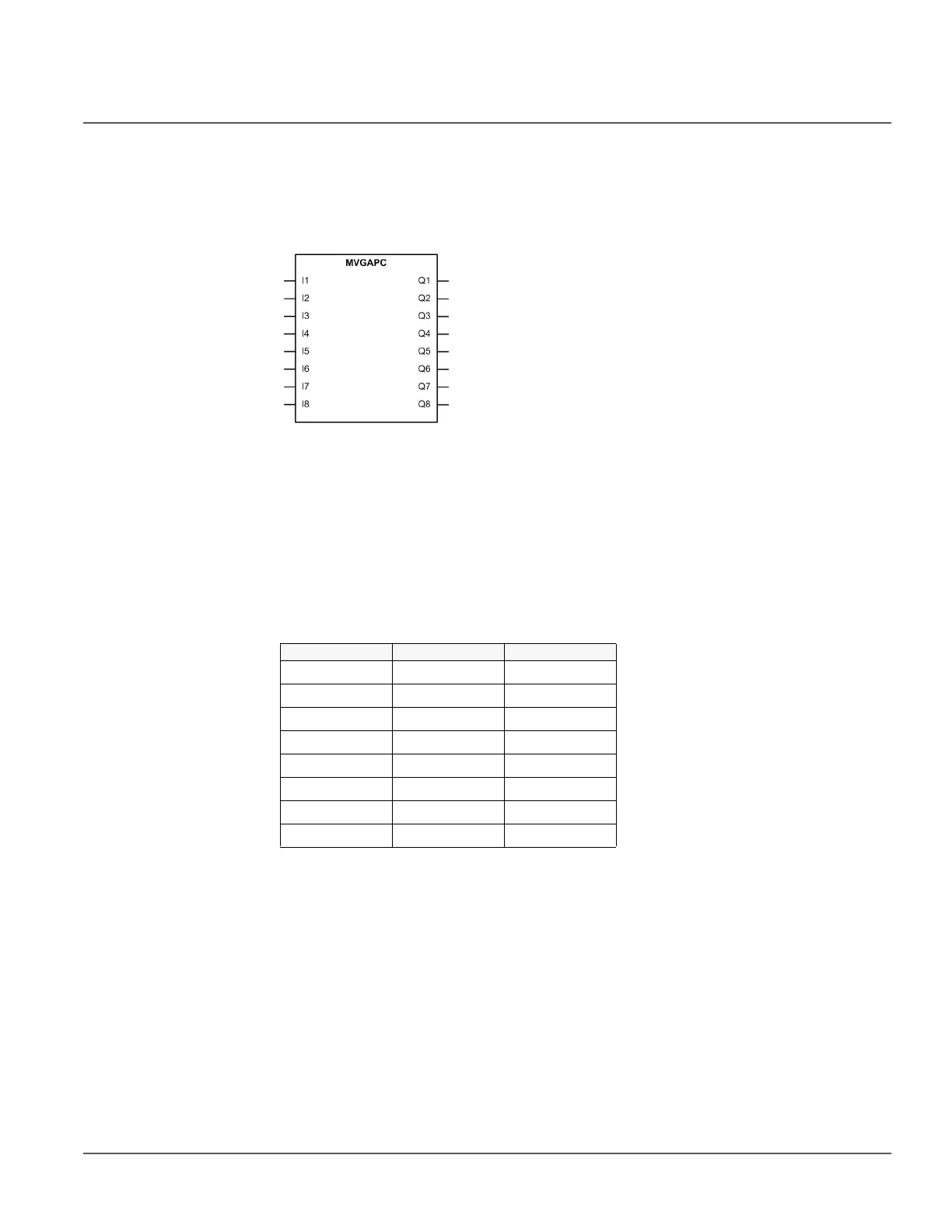

Figure 229: Function block
9.4.2 Functionality
The move function block MVGAPC is used for user logic bits. Each input state is directly
copied to the output state. This allows the creating of events from advanced logic
combinations.
9.4.3 Signals
Table 398: MVGAPC Output signals
Name Type Description
Q1 BOOLEAN Q1 status
Q2 BOOLEAN Q2 status
Q3 BOOLEAN Q3 status
Q4 BOOLEAN Q4 status
Q5 BOOLEAN Q5 status
Q6 BOOLEAN Q6 status
Q7 BOOLEAN Q7 status
Q8 BOOLEAN Q8 status
