RER620 overview
26 RER620
Technical Manual
2.2 Local HMI

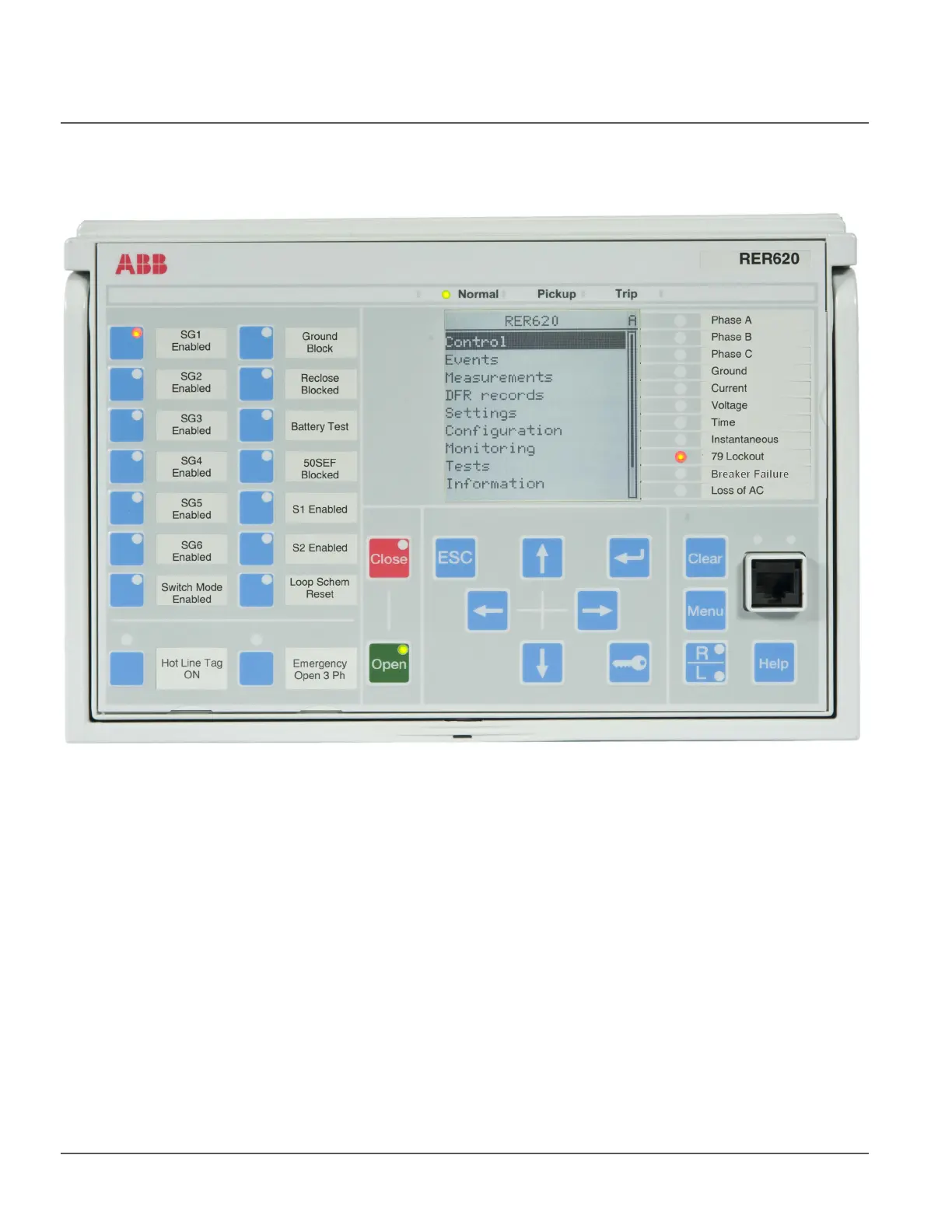

Figure 3: LHMI
The LHMI of the relay contains the following elements:
•Display
•Buttons
• LED indicators
• Communication port
The LHMI is used for setting, monitoring and controlling.
2.2.1 LCD
The LHMI includes a graphical LCD that supports two character sizes. The character
size depends on the selected language.
