ABL Wallbox eM4 Single Installation Manual

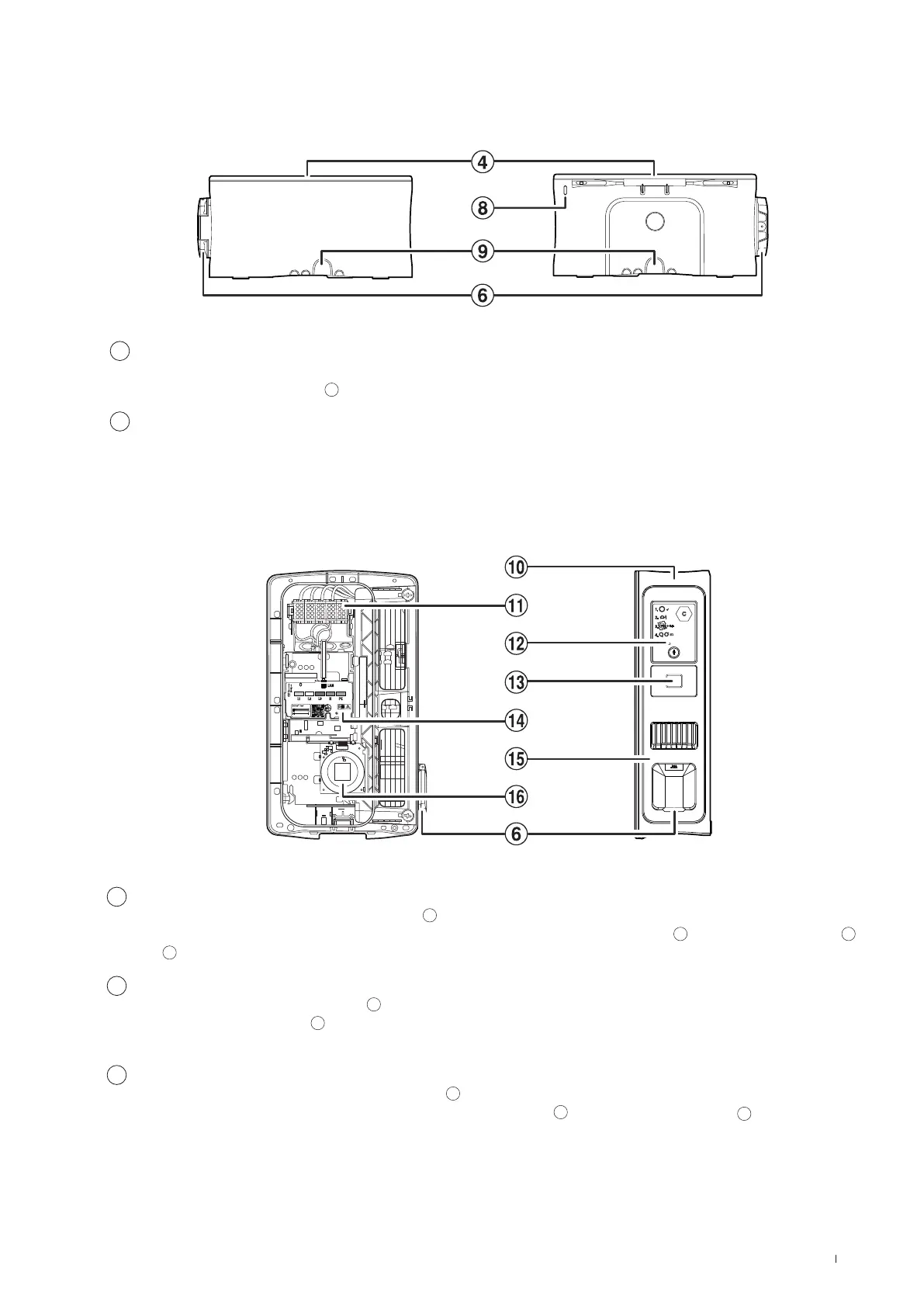

11The Wallbox eM4Single at a glance
View from above and below
The following illustration shows the top and bottom of the Wallbox eM4Single.
Top Bottom
8
Key opening
Insert the supplied key through this opening and push it upwards to open the internal lock on the left-hand side of the housing
cover (see also below, RCCB flap
12
).
9
Housing inlets
The inlets on the top and bottom can be opened with combination pliers or a similar tool and are used for inserting the power
and data cable from above or below (see page25).
Interior and side view
The following illustration shows the Wallbox eM4Single with the housing cover open and from the right-hand side.
16 mm 85 mm
Interior view/ electronics Right-hand side
10
Housing
The wallbox housing integrates the power module
15
and the additional electronic components for communication in a group.
The wallbox is securely fastened at the installation location by means of the suspension points
1
and the attachment points
2
and
7
.
11
Terminal block
Directly in front of the supply cable area
3
is the terminal block for connecting the power line: The connection pattern is shown
on the communication module
14
. In a group installation, the connection diagram must be adapted for each wallbox to avoid a
phase imbalance (see “Electrical connection of the wallbox” onpage28).
12
RCCB flap
The RCCB flap protects the RCCB of the power module
15
and is locked and unlocked using the key supplied. The locking mech-
anism is also used to lock/unlock the right-hand side of the housing cover
4
(see also above, Key opening
8
).
Front
