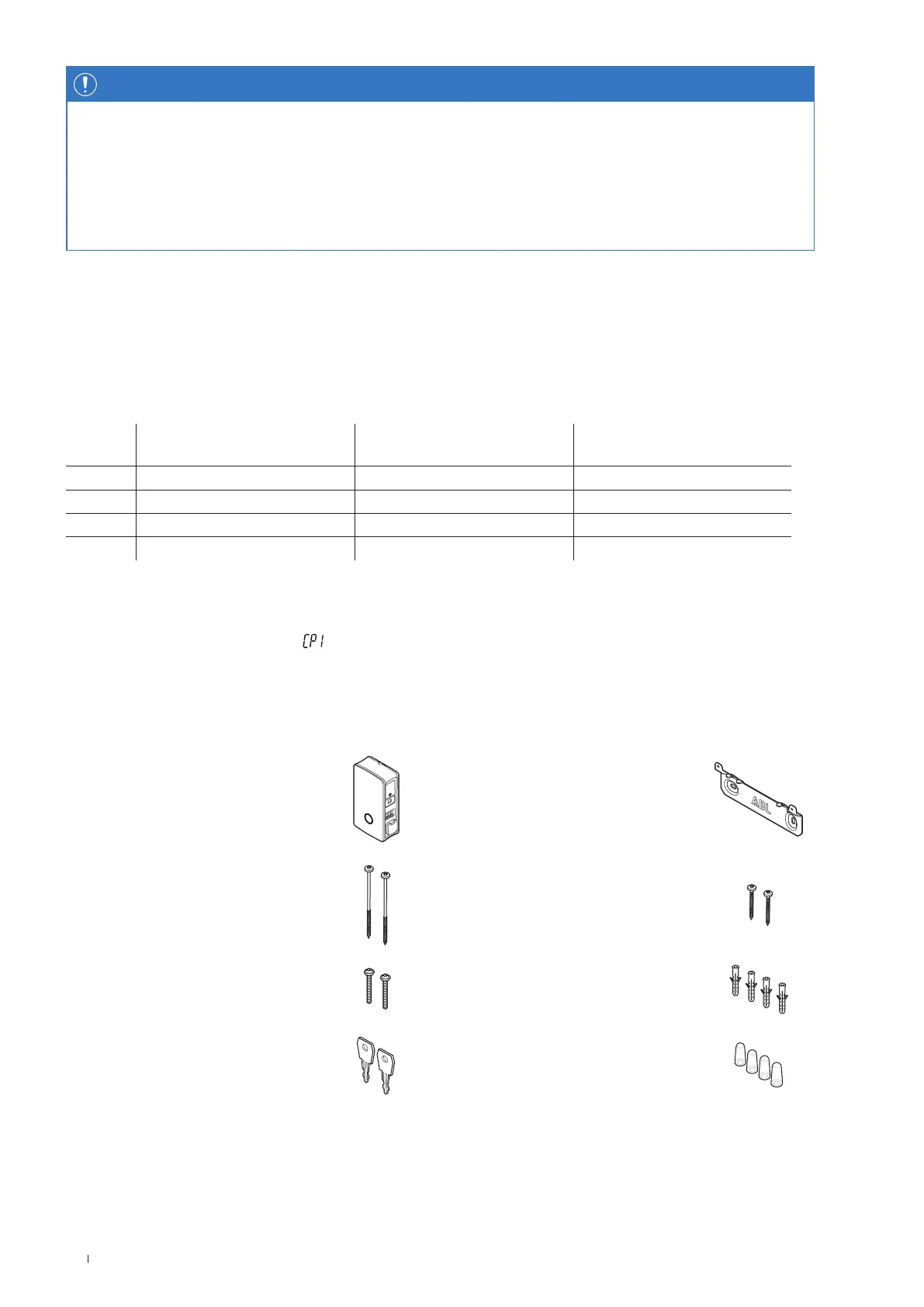

18 Introduction to the Wallbox eM4Single
NOTE
Compatibility with backend providers
The Wallbox eM4Single is available as a reevready product, which is specially prepared for operation with the backend solutions
from reev. For more information, please visit:
https://reev.com
x Alternatively, the Wallbox eM4Single is also compatible with other backends for managing the charging infrastructure. To
check the compatibility, please contact the desired backend provider.
External load shedding in accordance with VDEAR-N4100
The terminal EN1 installed on the main module is used to connect a control control cable in accordance with VDEAR-N4100. The local
energy supplier can use this control cable to remotely switch the charging function of the wallbox o or on. The cable length between
the wallbox and a suitable ripple control receiver/ VDE-FNN control box has been tested up to a maximum of 30 metres.
In addition to switching the two charge points on and o, there is also the option to limit the maximum current set for charging via two
further, externally wired resistor values.
Position Resistance ±10%
Maximum set
current limited to
Resulting charging current
(e.g.: 32A/ 16A)
1 min. 27 kOhm 0% 0A/ 0A
2 4.7 kOhm 30% 9A/ 5A*
3 1.5 kOhm 60% 19A/ 10A
4 max. 100 Ohm 100% 32A/ 16A
* If the resulting charging current falls below the limit of 6A, no charging occurs!
In a charging group, the control cable is connected to the Controller, which then regulates the current for all charge points in the group.
In all other configurations (multi-group, stand-alone), the control cable must be connected to the wallbox with the first charge point
(assignment in line 2 of the energy meter: ).
Components included with the wallbox
The product is delivered including the following components:
x Wallbox eM4Single, 1pc. x Installation rail, 1pc.
x TX30 wafer head screw, 6×140mm,
2pcs.
x TX30 plug screw, 6×60mm, 2pcs.
x TX30 half-round head screw, 6×60mm,
2pcs.
x Wall plugs 8×50mm, 4pcs.
x Key, 2pcs. x Insulating cap, 4pcs.
