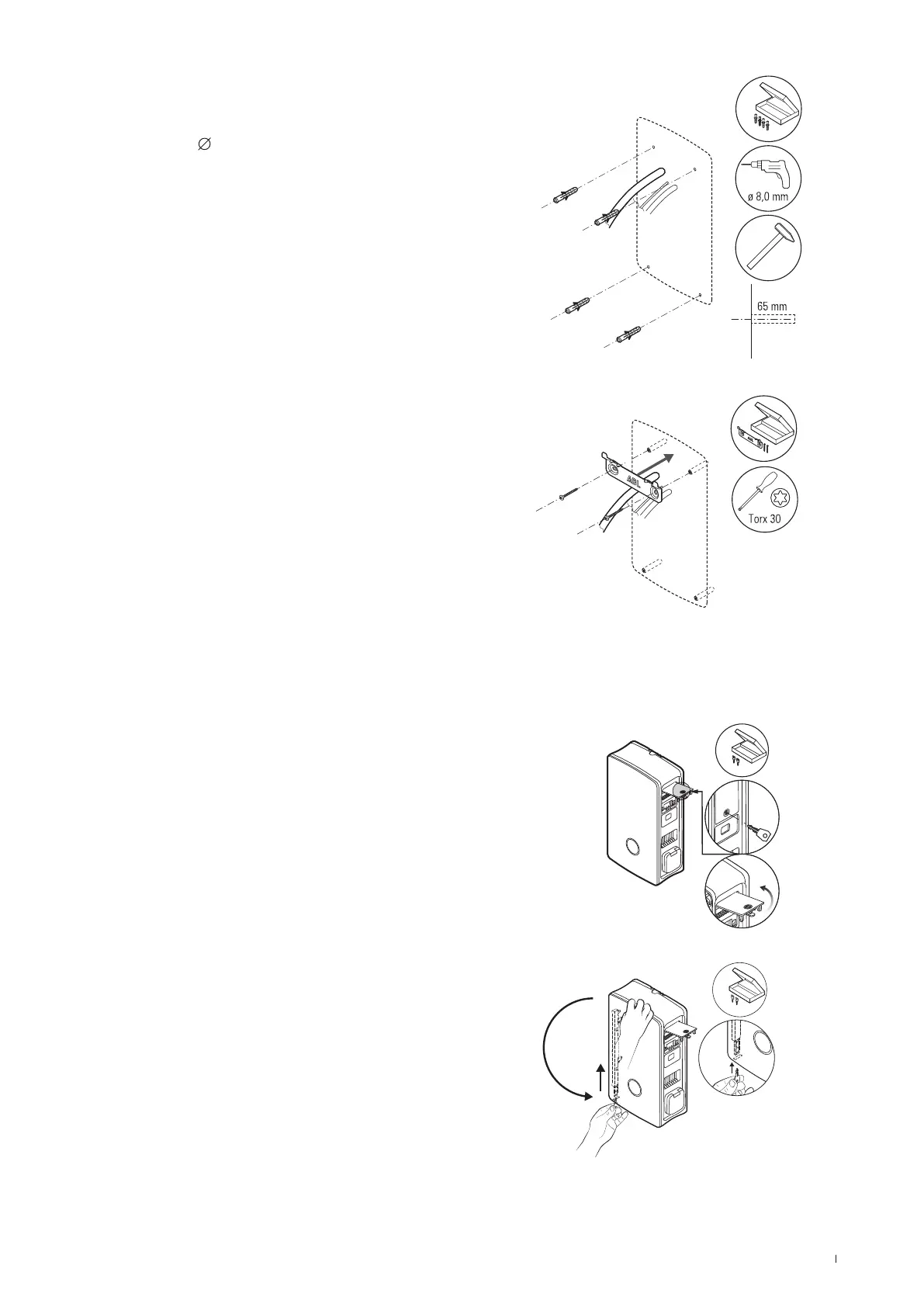

27Preparing and fixing the wallbox in place
4 Pre-drill the four marked fixing points with the electric drill
and drill bit ( 8mm).
5 Drive the wall plugs into the pre-drilled fixing points with the
hammer.
6 Screw the mounting rail into the two upper mounting points
using the two TX30 plug screws and the Torx screwdriver.
Preparing and fixing the wallbox in place
Continue to prepare the wallbox:
1 Unlock the side RCCB flap using the key supplied and flip it up
to unlock the right-hand side of the housing cover.
2 Insert the key through the key opening on the bottom left-
hand side and push it upwards to unlock the left-hand side of
the housing cover.
J Open the housing cover to the front.
1.
2.
1.
2.
