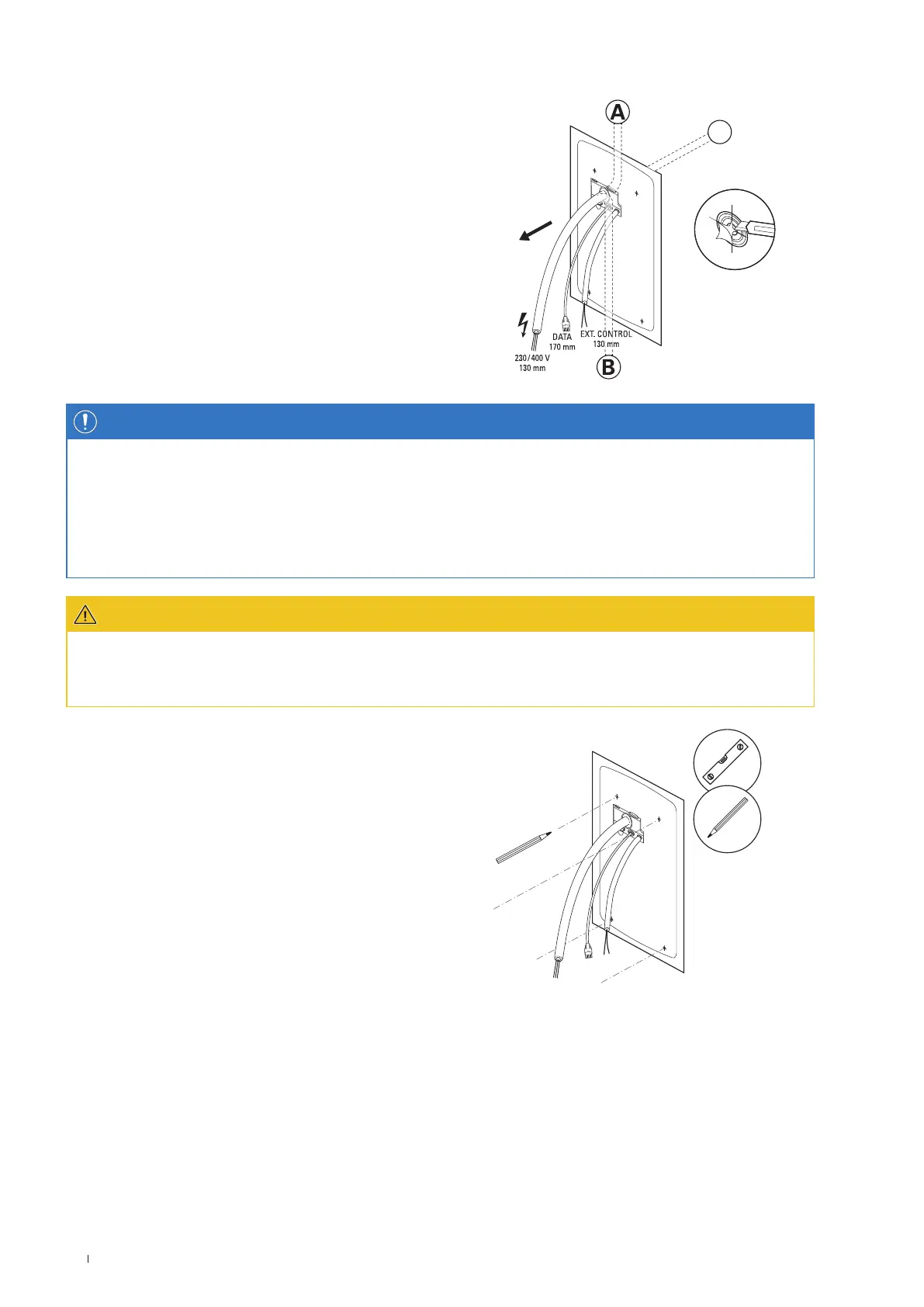

26 Installation of the Wallbox eM4Single
Proceed as follows:
1 Prepare the drilling template for insertion of the cables, if
necessary.
J If directly inserting the power line from behind, cut the
grommet marked C on the drilling template.
J If inserting the data and control cables, cut the grom-
mets marked DATA and EXT. CONTROL on the drilling
template.
C
NOTE
Recommended cable lengths for wiring in the wallbox
ABL recommends the following cable lengths to ensure problem-free connection in the wallbox:
x Power line: at least 130mm
x Data cable: at least 170mm
x Control cable: at least 130mm
ATTENTION
Length of data and control cable
Please note that the length of the data and control cables from the tapping point (router, switch, ripple control receiver, VDE-FNN
control box, etc.) has been tested to a maximum of 30 metres.
2 Using the spirit level, align the drilling template level and
plumb on the installation position.
3 With the pencil, mark the four fixing points.
