22 Installation of the Wallbox eM4Single
Installation of the Wallbox eM4Single
The entire installation of the Wallbox eM4Single must be carried out by a qualified specialist electrical contractor.
DANGER
Dangerous electrical currents
Electrical installation, as well as final testing and certification for operation must be carried out by a qualified specialist electrical
contractor, who, on the basis of their specialist training and experience, as well as their knowledge of the relevant standards, is
able to assess and carry out the working steps described in this manual and recognise potential hazards.

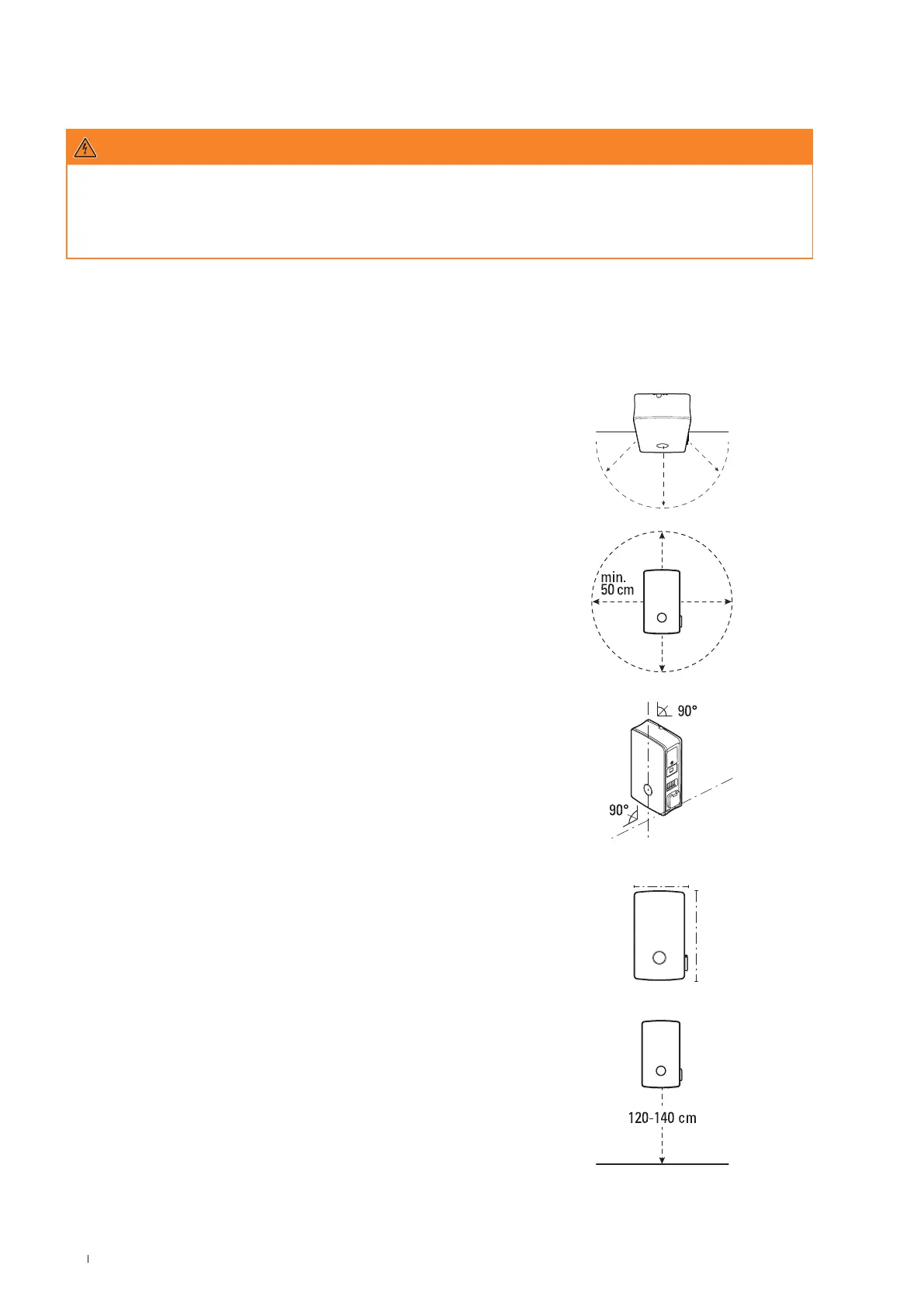

Installation site requirements
The Wallbox eM4Single is suitable for installation in enclosed spaces such as garages as well as in outdoor areas such as company car
parks. Please note, however, that the permissible ambient conditions (see “Technical specifications” onpage58) must be adhered to
in order to guarantee the functionality of the wallbox at all times.
x The installation site must be freely accessible.
x Minimum distances to other technical installations must be observed. A
minimum distance of 50cm is recommended.
x The installation surface must be level and suciently load-bearing (mini-
mum: weight of the wallbox plus two charging cables).
x The mounting surface must measure at least 516×428mm (height x
width). Also take into account the couplings of the charging cables.
307 mm
516 mm
x The installation height should be between 120 and 140cm (ground to
bottom edge of housing).
