Introduction to the Wallbox eM4Single

Thank you for choosing the Wallbox eM4Single from ABL. The eM4Single is the ideal solution for ecient vehicle charging in private

environments, in public areas and for large group solutions in semi-public company or hotel car parks. In addition to the simple mechan-

ical and electrical installation, the ABL Conﬁguration App for mobile devices (iOS, Android) ensures a quick and straightforward

setup.

The Controller and Extender variants of the Wallbox eM4Single are available as reev ready versions for use with backend solutions by

reev, which oer an intuitive interface for the administration and invoicing of all charging operations.

Further information on technical data is available in the appendix from page58.

Identifying your wallbox

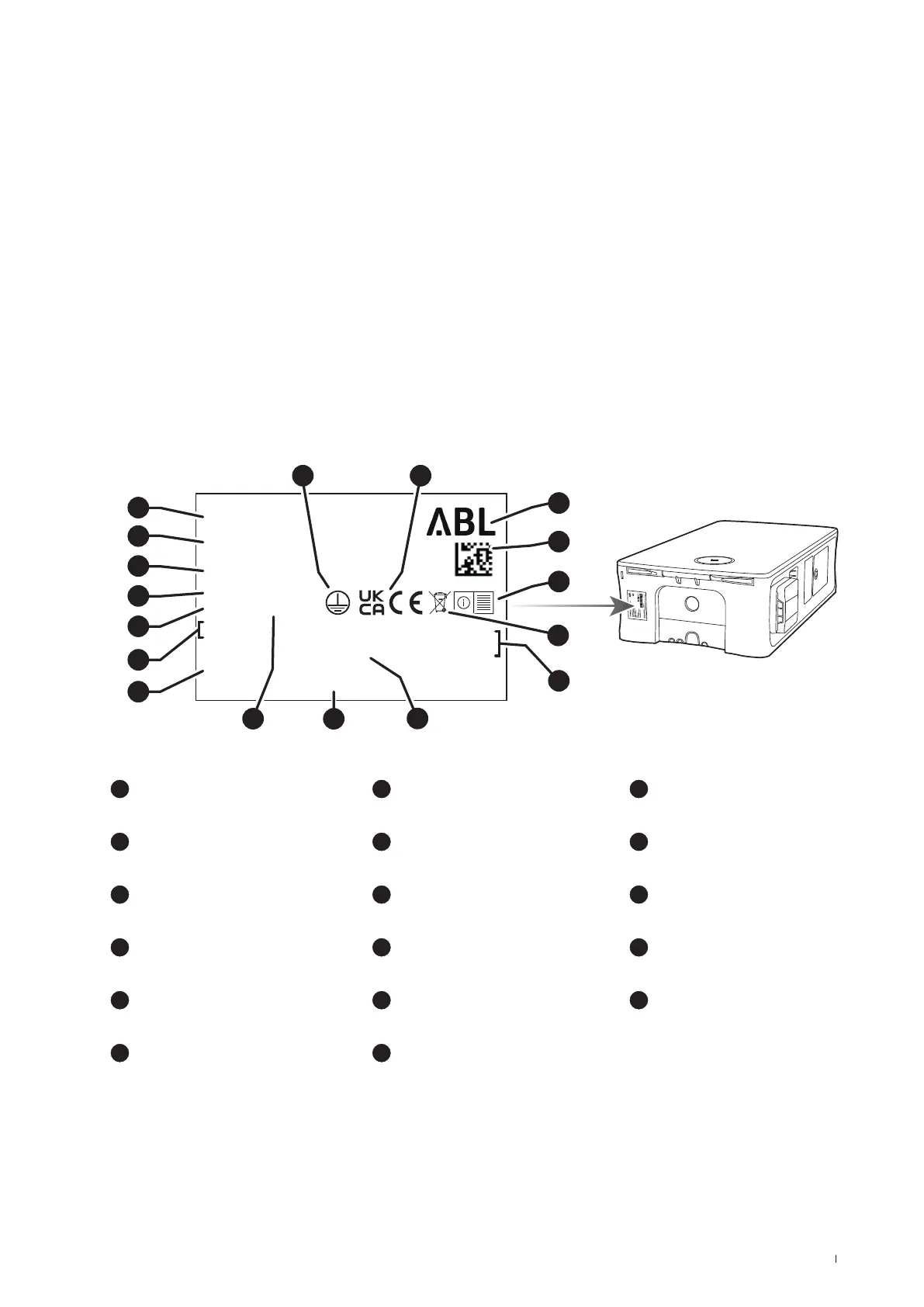

The model variant of the Wallbox eM4Single can be unambiguously identiﬁed on the rating plate located on the inside of the housing

cover. Please verify the information listed below on the rating plate.

The following information is especially relevant:

x Model number and indication of product category (Controller or Extender)

x External power supply

1234567891011

12345678910112023-11-17

Controller -1000000XX

Wallbox eM4 Single

Typ: 4WS-22xNxx

~230/400V 50Hz 32A

3P+N+PE 22kW

Class A kWh EN50470-3

IEC 61439-7 AEVCS

IEC 61851-1

IP55 -25˚C bis 40˚C

ABL GmbH

• Albert-Büttner-Straße 11 • D-91207 Lauf / Pegnitz

UK Authorised Representative: Atlantic Bridge Ltd, 19 Willowside, Woodley, Berkshire RG5 4HJ

MADE IN GERMANY

Product number and category

(Controller or Extender)

Manufacturer and manufacturer's

address

M Date printed

B Type speciﬁcation (eM4Single) H Manufacturer's logo N Authorised representative (UKCA)

C Connection requirements I DataMatrix code/product number O Temperature range

D Class of accuracy J 'Read instructions' advice P Symbol protection class I

S Degree of protection (housing) K Disposal advice Q CE/ UKCA marking

F Standards L Barcode/serial number
