ABL Wallbox eM4 Single Installation Manual

24 Installation of the Wallbox eM4Single

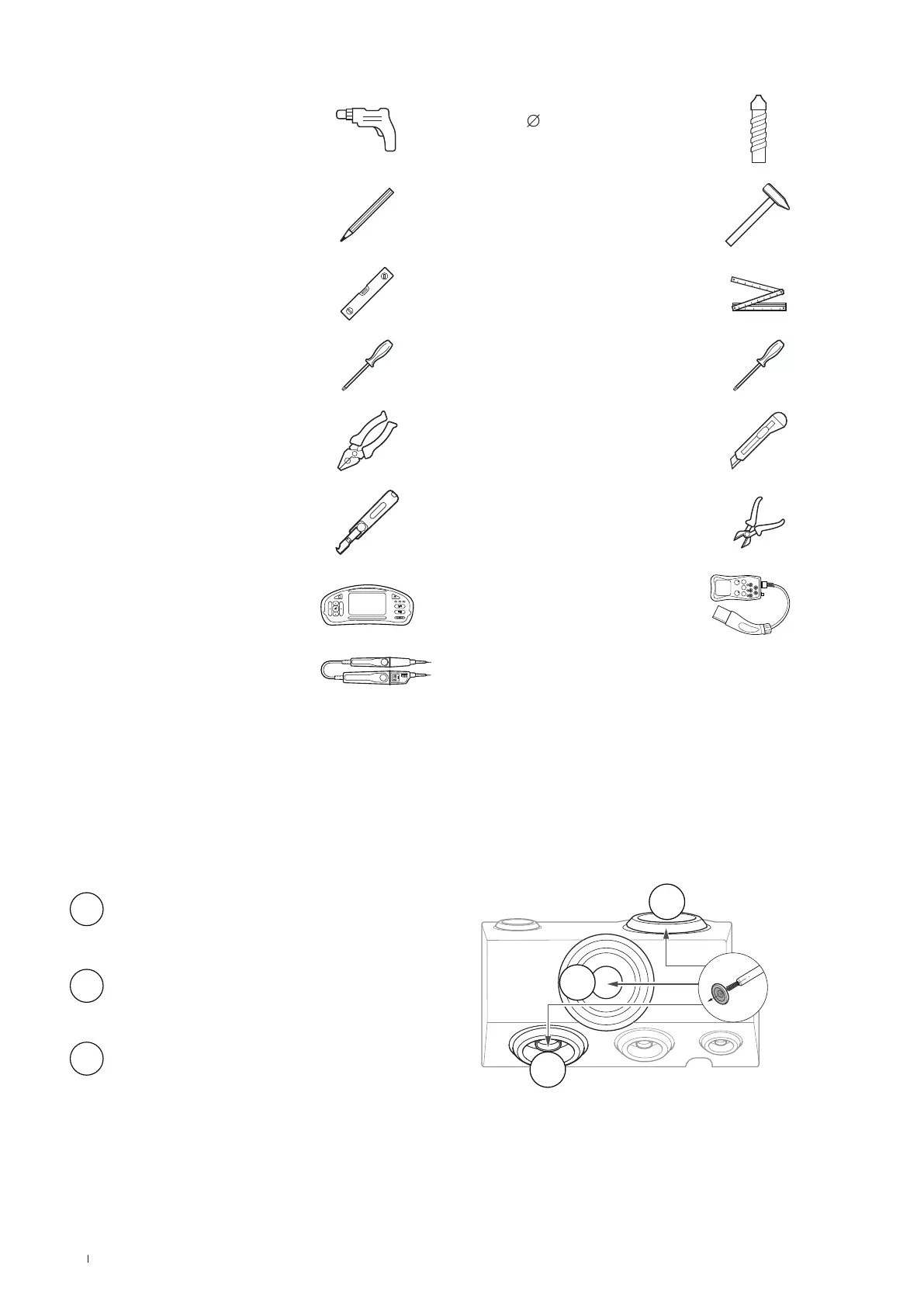

In addition, you will need the following tools and accessories:
x Electric drill
x 8 mm drill bit suitable for the
respective mounting surface
x Pencil
x Hammer
x Spirit level x Tape measure
x Phillips screwdriver x Torx screwdriver (TX 30)
x Universal pliers x Utility knife
x Stripping tool x Side cutters
x Multi-purpose installation tester x Vehicle simulation adapter
N PE
L1 L2 L3
x Voltage tester
Inserting the power and data cables
The Wallbox eM4Single oers the option of inserting the supply cables from above, from below or directly through the rear wall via the
supply cable area of the housing. Depending on which you choose, you may need to prepare the wallbox and break out the pre-stamped
inlets at the top and bottom of the housing.
Power line in
The grommets in inlets A, B and C, which are designed as “push-out” membranes, can be pierced directly with the power line.
A
C
B
This inlet is intended for flexibly routing the power line
over the upper edge of the housing.
A
C
B
A
C
B
This inlet is intended for flexibly routing the power line
over the lower edge of the housing.
A
C
B
This inlet is intended for direct insertion of the power
line from a wall outlet into the wallbox.
