52 Error resolution and maintenance

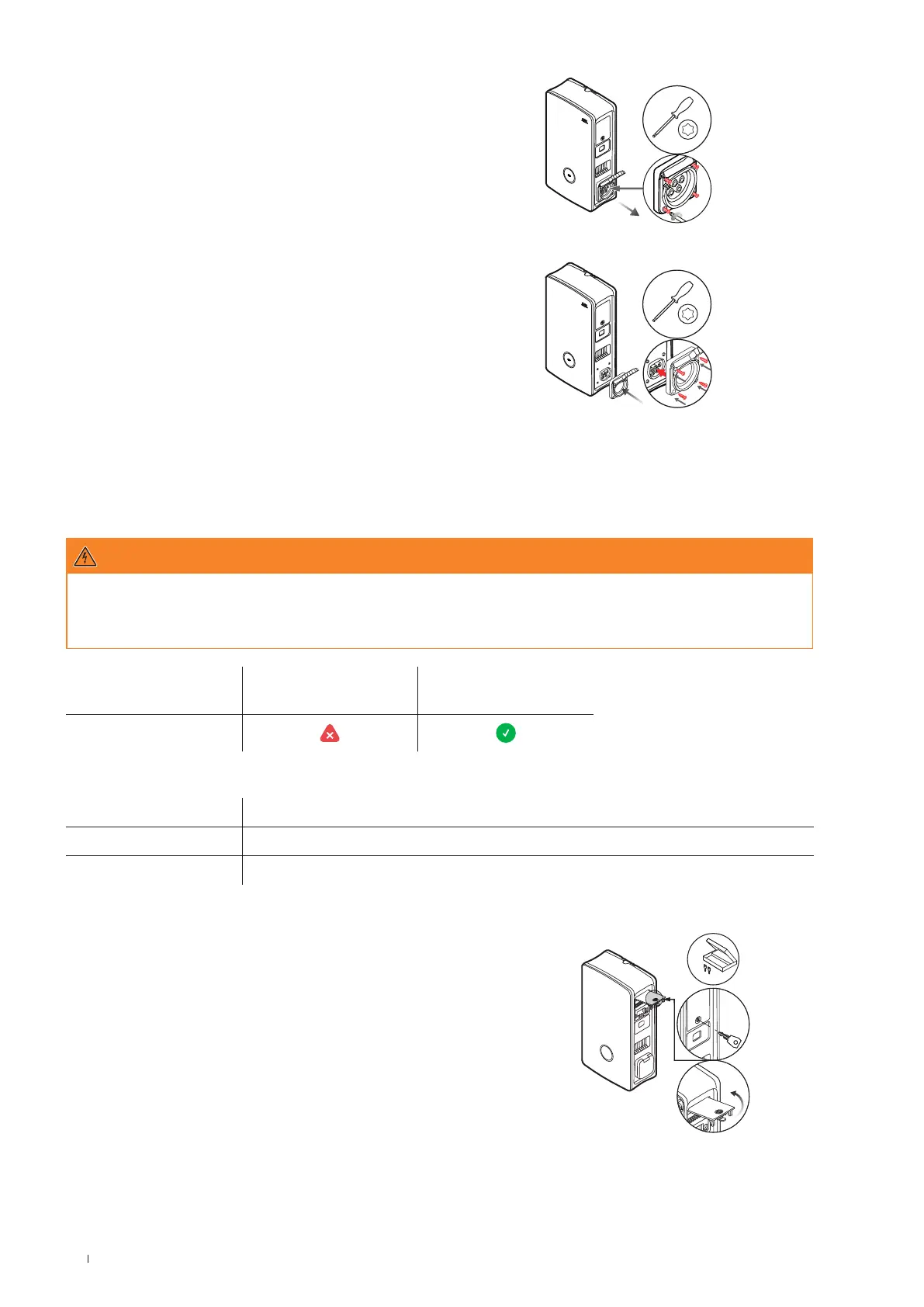

2 Loosen the four screws with a Torx TR 20 screwdriver and

pull the charging ﬂap o the wallbox.

4×

3 Place the new charging ﬂap over the frame of the Type 2

socket on the housing and screw it in place with the four

screws supplied and the screwdriver.

4×

This completes the replacement of the charging socket ﬂap. If necessary, repeat the procedure for the wallbox’s second charging socket.

Replacing the housing cover

You can replace the housing cover of the Wallbox eM4Single if it is damaged or no longer closes reliably.

DANGER

Removing the housing cover during installation

If necessary, you can also remove the housing cover during installation of the wallbox. Please note, however, that the wallbox

must never be connected to the electricity grid when the housing cover is removed.

End customer

Specialist electrical

contractor

Construction

Required components:

Number/ spare part 100000260/ Spare part eM4 SG front ABL

Accessories Key for RCCB ﬂap, supplied with the wallbox

Tool –

Proceed as follows to replace the wallbox housing cover:

1 Unlock the side RCCB ﬂap using the key supplied and ﬂip it up

to unlock the right-hand side of the housing cover.
