43Control Board settings and reboarding

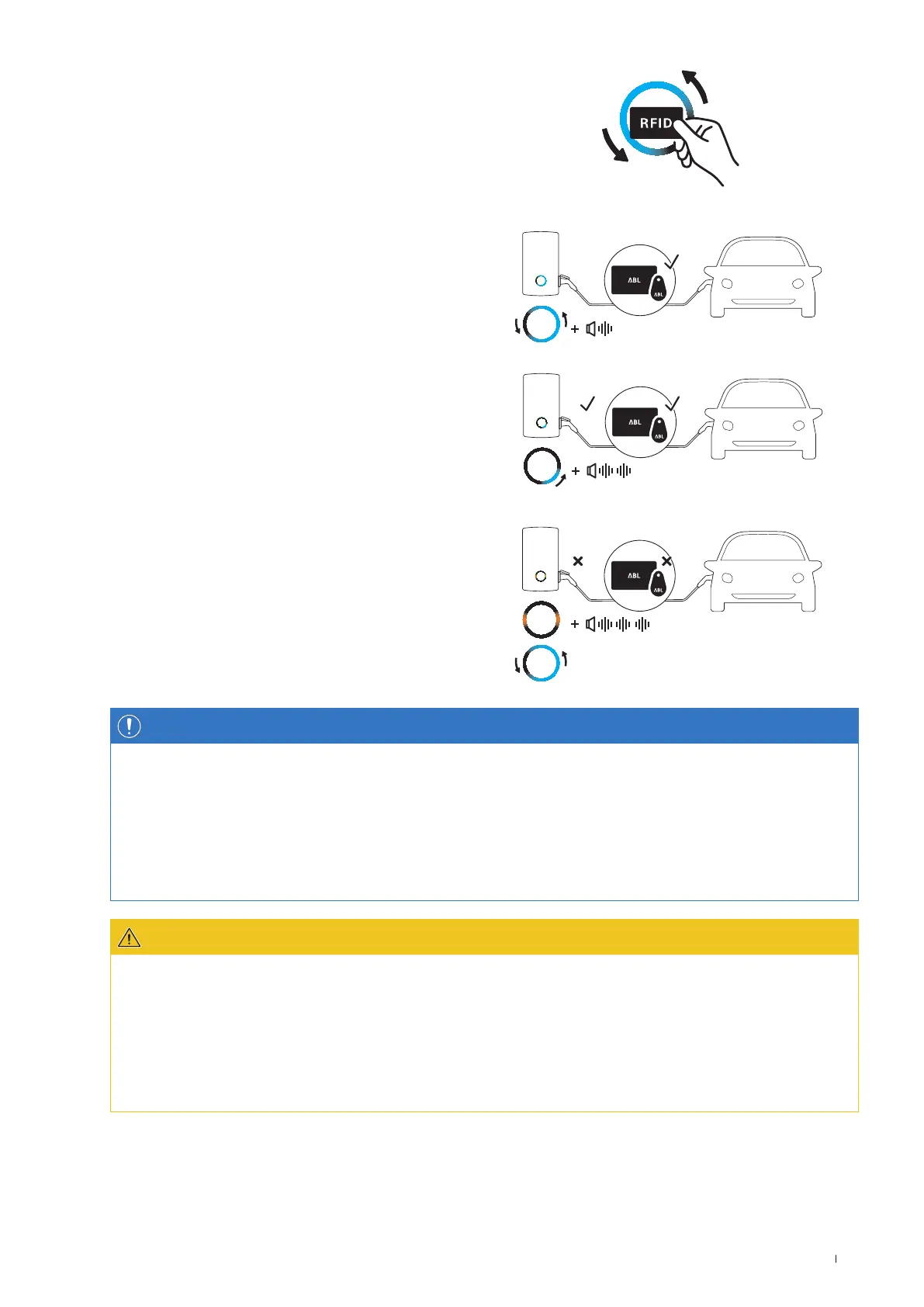

5 Hold a valid RFID card in front of the status indicator.
6 Check the status indicator and acoustic signals of the
wallbox.
x If the RFID card has been read successfully, the wallbox
emits a short sound signal and checks the authentication
of the RFID card.
x After successful authentication, the wallbox emits two
further short sound signals and activates the charging
operation.
x If the authentication is not successful, the status indi-
cator lights up orange and the wallbox emits three long
sound signals.
NOTE
The authentication of the RFID card is not successful
If the RFID card could not be verified, do one of the following:
x Remove the charging connector from the charging socket of the wallbox and wait until the status indicator pulsates green
again. Then repeat steps 2 to 6.
x Operating the wallbox with a backend: Please contact the issuer of the RFID card.
x Operating the wallbox without backend: Make sure that the RFID card has been registered to the relevant wallbox.
ATTENTION
RFID card not readable
If the antenna of your RFID card is blocked or damaged, the card cannot be recognised.
x Remove the RFID card from its protective cover or card holder to register at the RFID reader.
x Do not make any modifications to the RFID card: The card must never be perforated, stamped, folded, have stickers attached,
or otherwise be manipulated mechanically.
x Make sure that the RFID card corresponds to a standard that is supported by the wallbox.
