AcuRev 2100 Series Power Meter: Web Manual
Chapter 3: Appearance and Dimensions
3.1 Denition of RJ45

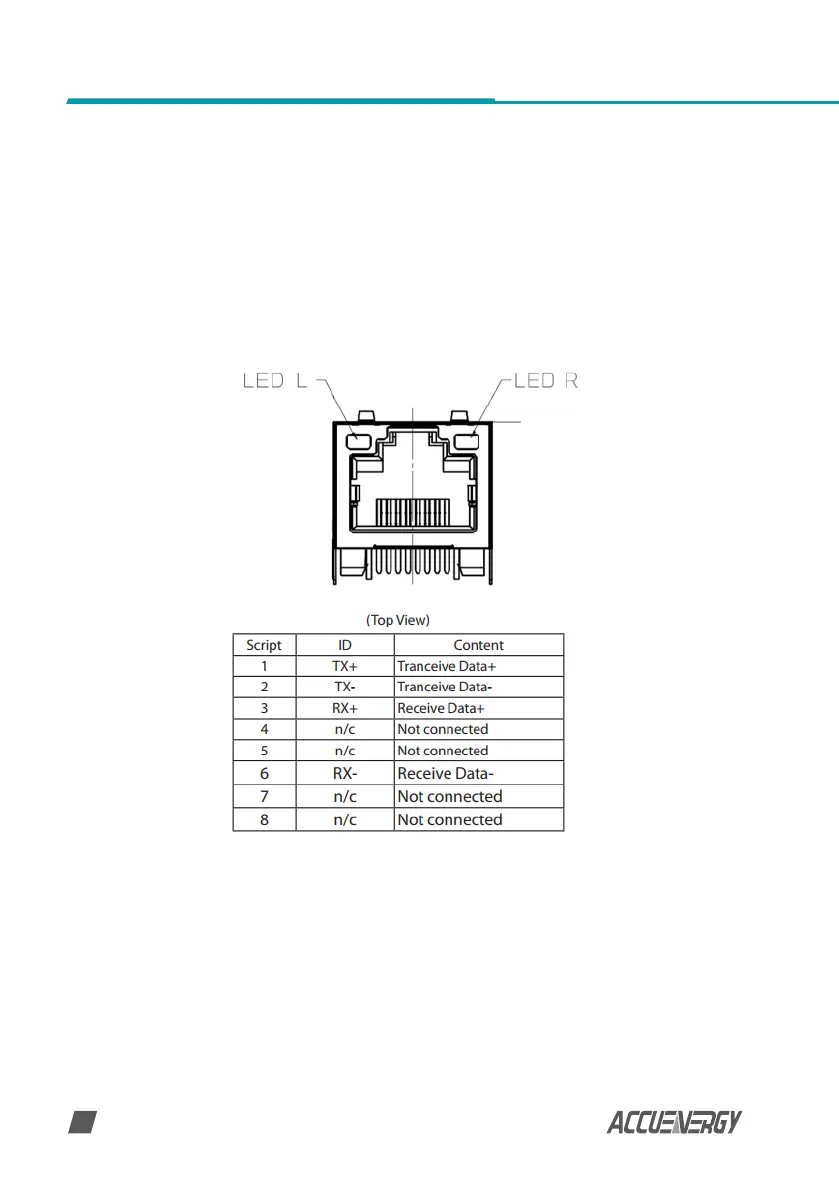

The AcuRev 2100 uses two standard RJ45 connectors to access the Ethernet network. The
mechanical and electrical characteristics of the connector are consistent with the requirements
of IEC 603-7.
LED_L (Yellow): Displays the speed status. When the LED is on it indicates 100Mpbs, whiles an
o LED represents a speed of 10Mbps.
LED_R (Green): Displays the link and activity status. When the LED is on it indicates the link
status. When the LED is ashing it indicates that there is activity.
