AcuRev 2100 Series Power Meter: Web Manual
6.6 Settings
6.6.1 Meter

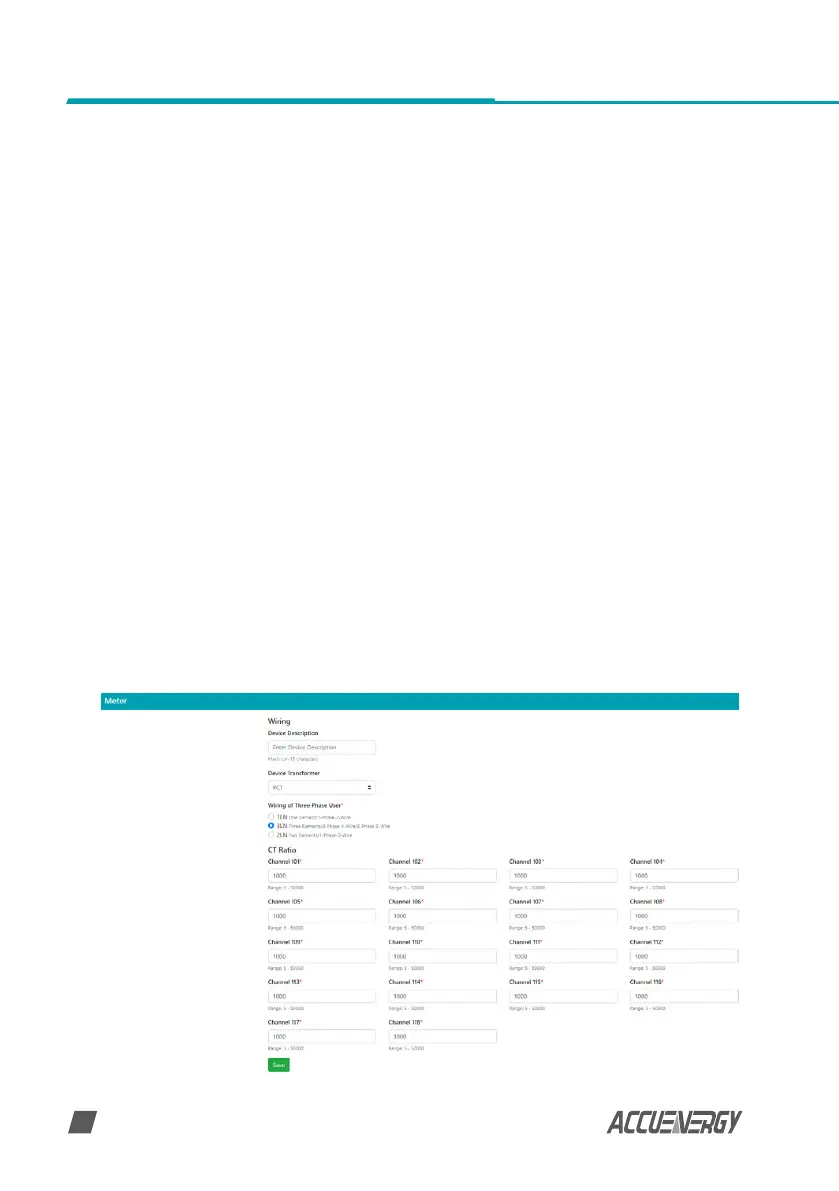

The basic metering configurations needed to set up the meter can be applied from the
web interface by clicking on the Settings and selecting the Meter. The meter settings page
includes the following settings:
• Device Description: A description for the meter can be provided in this eld which will
display on the Dashboard page.
• Device Transformer: Users can select the secondary output of the CTs being used on the
meter. Users can select RCT or 333mV for the mV model and 80mA/100mA/200mA for
the mA model.
NOTE: Users cannot mix and match CTs, for example if users have the mV current input model they
cannot mix and match RCT and 333mV CTs.
• Wiring of Three Phase User: Select the type of wiring that the meter will be monitoring
from the modes available. Users can select 1LN, 2LN, 3LN.
• CT Ratio: Set the rating of the CT that is connected to the meter to measure the current
for each channel. For example if a 200A:333mV CT is being used, “200” must be entered
in the CT ratio setting.
