29

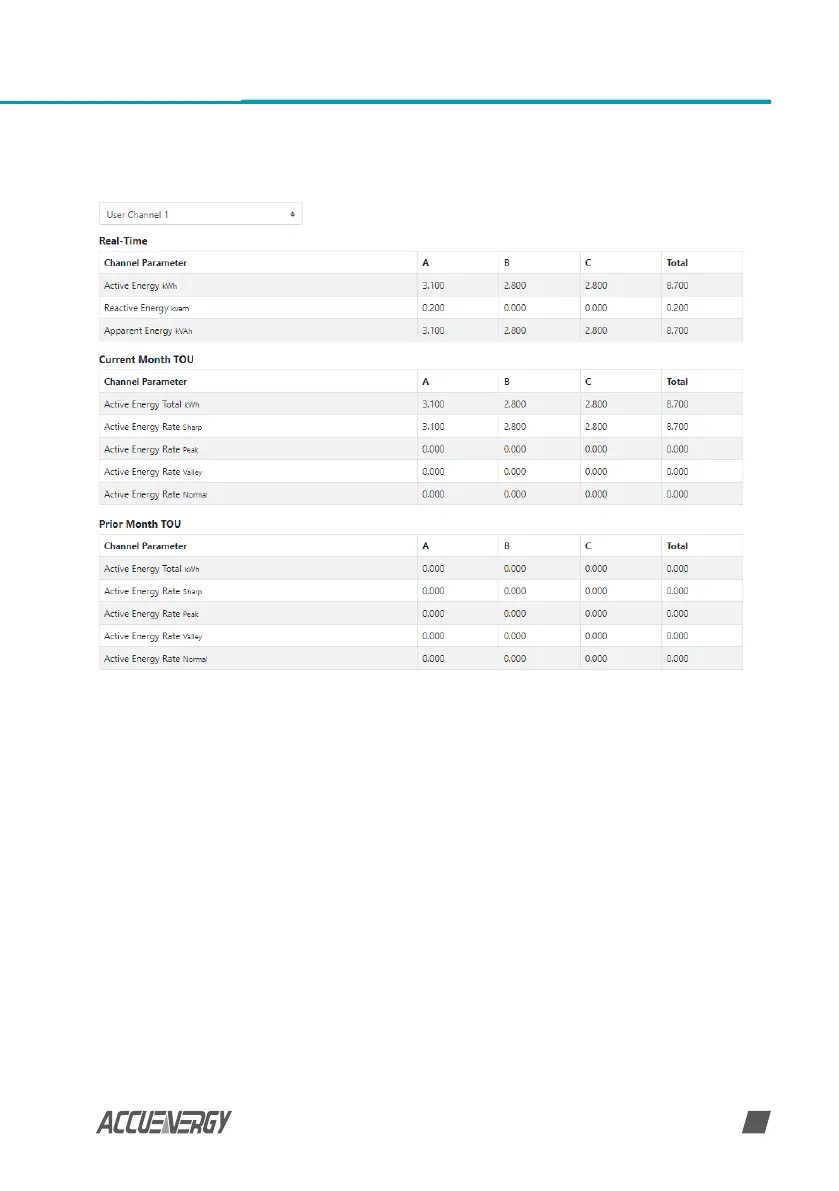

Users can select and view the energy for each circuit by using the drop-down menu below the
main energy table. The individual circuit energy table is presented below the main table.
6.3.4 Harmonics
The Harmonics web page will show the harmonics of the voltage and the current waveform
being measured. It will display the harmonics of each phase in graphical and tabular format.
Select between voltage and current to view their respective harmonics.
In the harmonic page users can view the THD, Voltage/Current unbalance factor, Even/Odd
THD, Crest Factor and THFF readings.
The parameters on this web page are updated every 15 sec.
Chapter 6: Web Interface Readings and Parameter Settings
