P5271/P5290/P5390W/P5271i
Condential
I

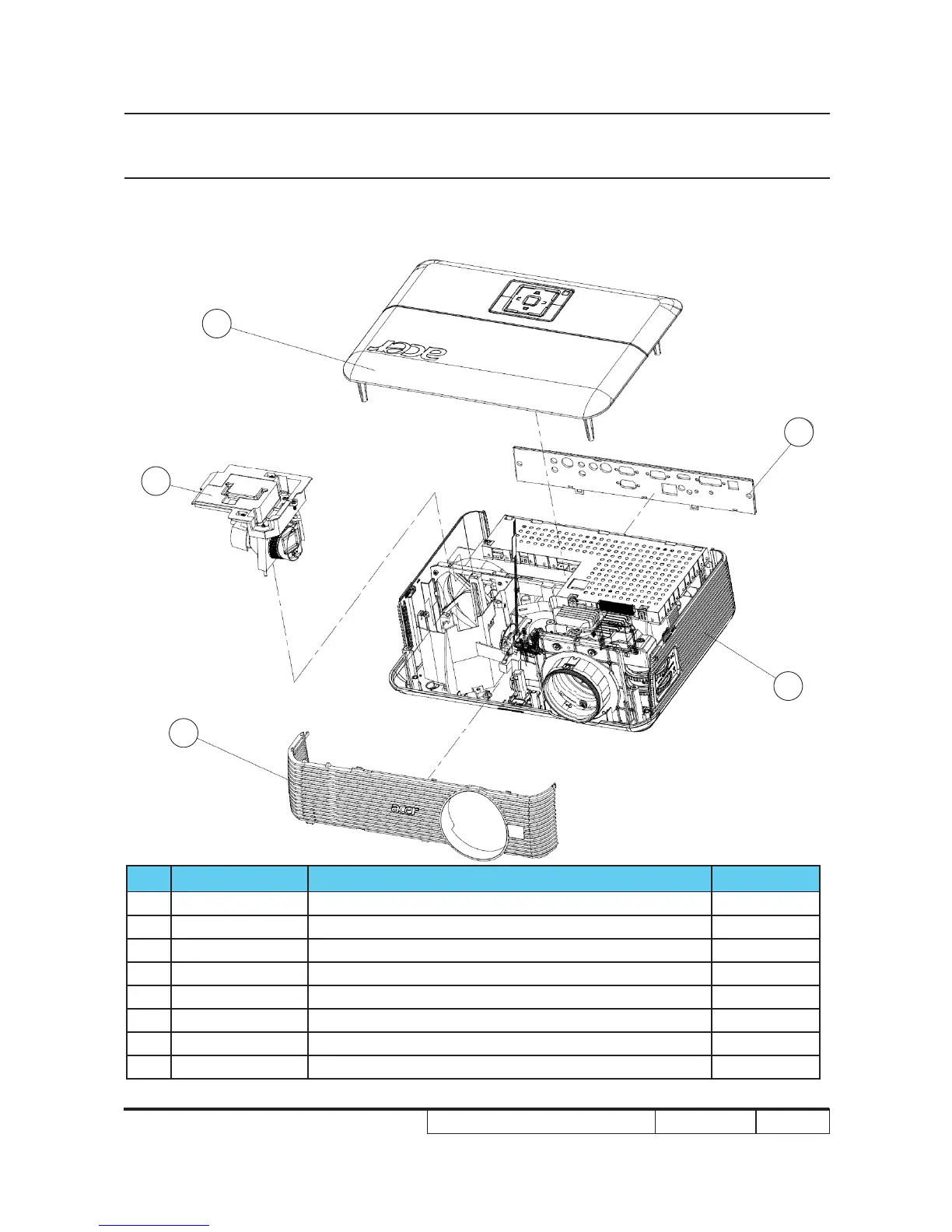

Note: This chapter is only designed to show the exploded image of the projector. For updated part
numbers, please refer to RSPL report.
Item P/N Description Parts Supply
1 70.8EP03G001 ASSY BOTTOM HOUSING MODULE P5290
2 70.8BV02G001 FRONT COVER MODULE P5271
3 70.8BV03G001 TOP COVER MODULE P5271
4 SP.8BV01GC01 LAMP MODULE FOR PROJECTOR P5271/P5271i V
4 SP.8EP01GC01 LAMP MODULE FOR PROJECTOR P5290/P5390W V
70.8BV40GR01 ASSY BACK COVER MODULE P5271(SERVICE) V
70.8EP10GR01 ASSY BACK COVER MODULE P5290(SERVICE) V
5 51.8BV15H001 BACK COVER P5271
3
4
2
1
5
Appendix A (Exploded Image)
