P5271/P5290/P5390W/P5271i Condential XIV

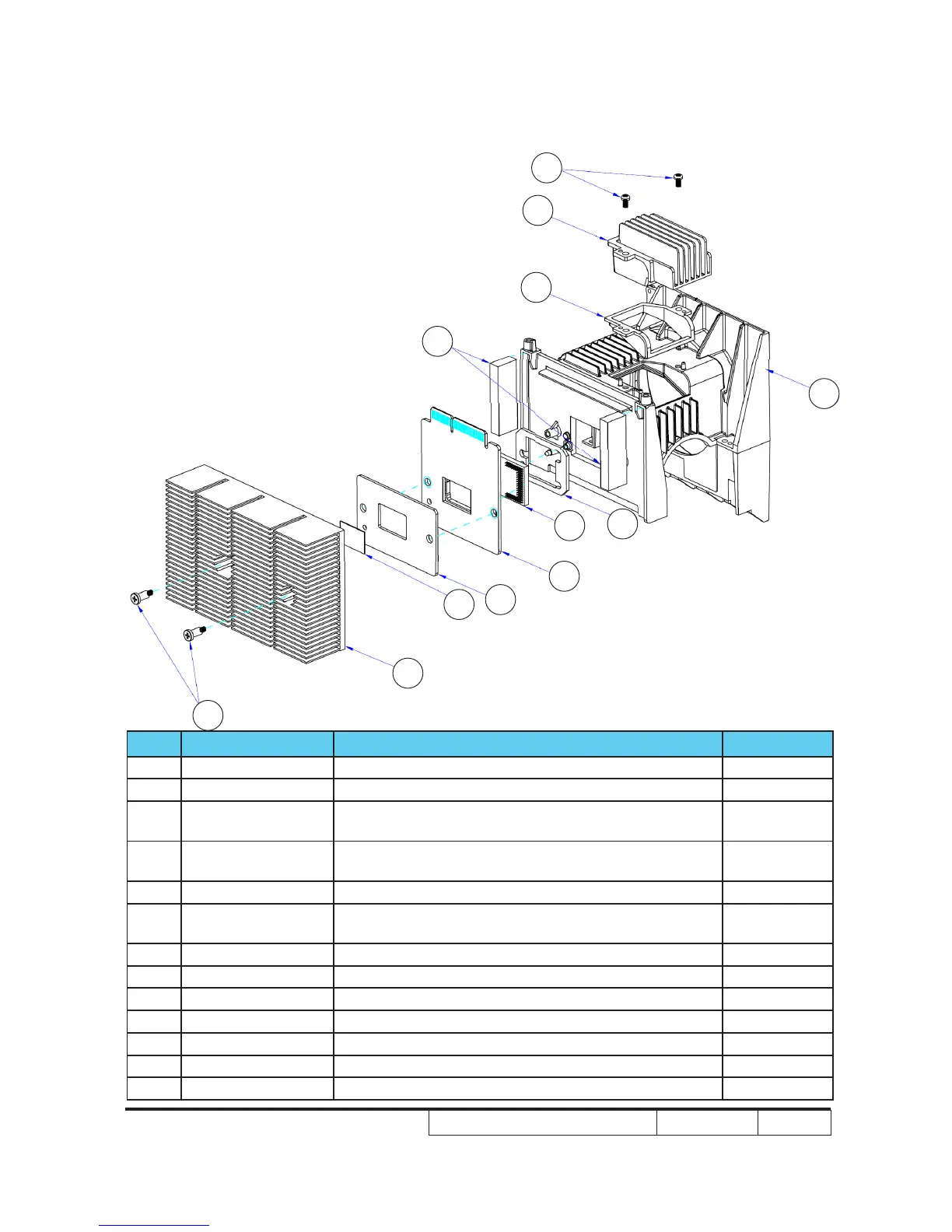

ASSY ENGINE TOP MODULE
Item P/N Description Parts Supply
1 41.8BV01G001 EMI GASKET W6*H13*L40
2 48.8CQ01G003 0.55” XGA 2xLVDS SERIES 450 DMD -8 TI 1076-603cB V
2 48.8EJ01G001
0.65’’ WXGA 2xLVDS SERIES 450 DMD -8 TI 1280-
603cB
V
3 52.8BY01G001
ENGINE OFF LIGHT HEATSINK SILCONE RUBBER
X20/A20
4 52.8CP02G001 DMD BOARD RUBBER X1161
5 52.8CP04G001
S450 0.55” XGA/SVGA DMD thermal pad, FUJIPOLY,
Sarcon XR-HE, 18.4x12.5x0.5 mm
6 52.8CP01G001 DMD RUBBER X1161
7 61.8BY01G021 ENGINE TOP COVER Mg Z20
8 61.8BV27H001 ENGINE HEATSINK Z20 P5271
9 61.8BY03G001 ENGINE OFF LIGHT HEATSINK AL X20/A20
10 80.8BV02G002 PCBA DMD BOARD FOR P5271(S450) V
11 85.1A326G060 SCREW PAN HEAD MECH M2.6*6 BLACK
12 85.4A826G118 STEP SCREW FOR TYPEX DMD M2.6*11.8mm,X15 V
12
8
5
4
6
2
7
3
9
1
10
11
To Next Page
