P5271/P5290/P5390W/P5271i Condential XV

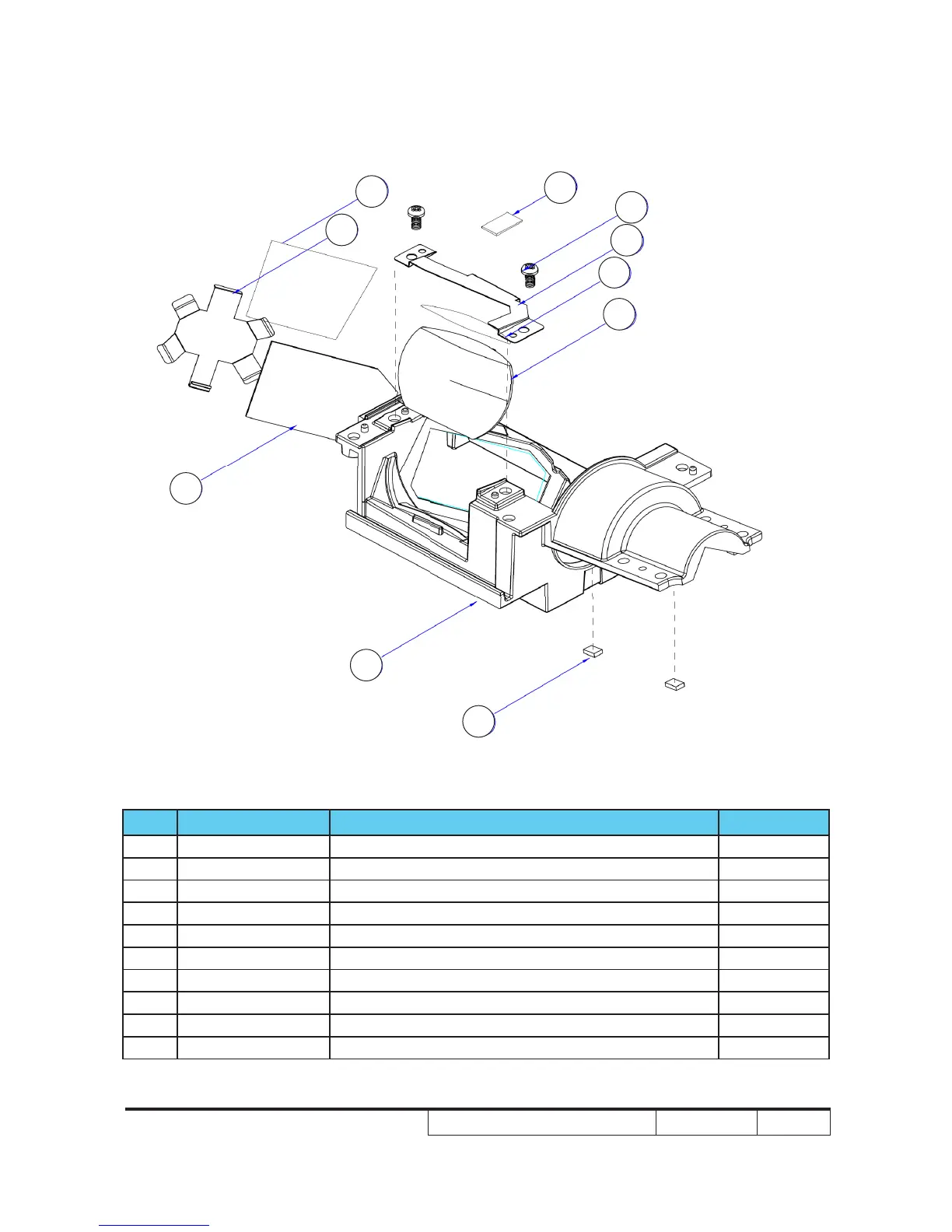

ASSY ENGINE BOTTOM MODULE
Item P/N Description Parts Supply
1 23.8BV02G001 ONE SURFACE COATING 37.2 x 23.2 mm FOR X20
2 23.8BV06G001 ASPHERICAL GLASS RELAY X20 L1. ψ36.5 mm
3 51.8BY01G001 ENGINE BOTTOM BMC X20/A20
4 52.85808G001 PORON-LENS BLACK XB31
5 52.8BY03G001 ENGINE BOTTOM MIRROR SPONGE HT800 X20/A20
6 61.8BY08G001 ENGINE MIRROR SPRING SUS301 X20/A20
7 61.8BY10G001 ENGINE RELAY FIXED PLATE SUS301 X20/A20
8 85.1A626G050 SCREW PAN MECH M2.6*5 BLACK NYLOK
9 51.8BY31G001 MIRROR MYLAR EX765
10 51.8BY37G001 ENGINE RELAY MYLAR X20/A20
5
9
6
1
3
4
2
7
8
10
