P5271/P5290/P5390W/P5271i Condential XVI
Item P/N Description Parts Supply
1 23.8CQ19G002
YO 6S HE3 CW R81Y41G84C31W52B71, URD20 MO-
TOR
70.8BV43GR01 ASSY COLOR WHEEL MODULE P5271(SERVICE) V
2 52.83615G001 COLOR WHEEL DISC RUBBER, EzPro755
3 61.83628G002
COLOR WHEEL SHOULDER SCREW NICKEL M2*4.8
FILLIST
4 61.8BY09G001 ENGINE COLOR WHEEL HOLDER SECC X20/A20
5 80.8AA04G001 PCBA PHOTO SENSOR BOARD FOR 1409X
6 51.8BY35G001 COLOR WHEEL PHOTOSENSOR MYLAR FOR EX765
7 85.1A626G040 SCREW PAN MECH M2.6*4 BLACK NYLOK

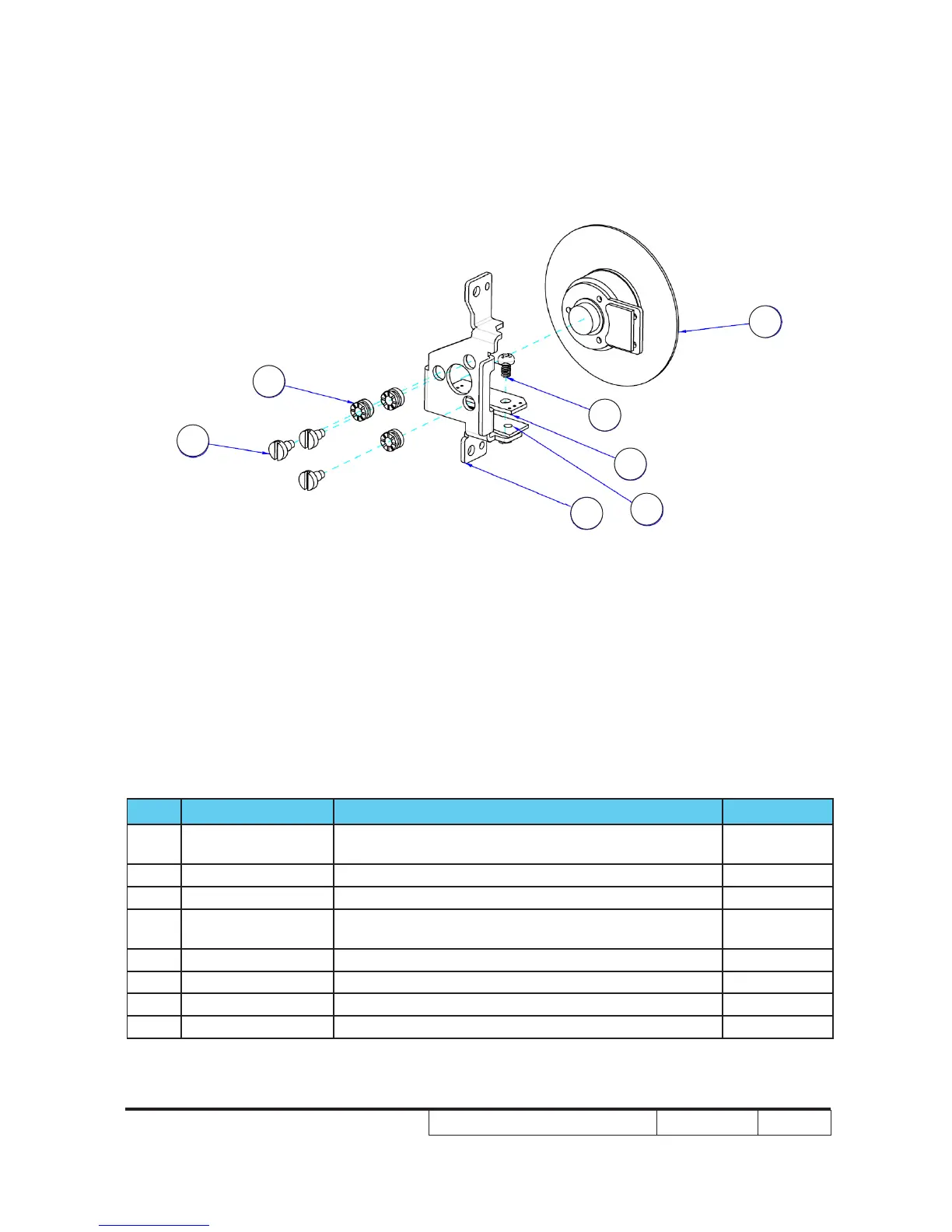

ASSY COLOR WHEEL MODULE
3
2
1
7
5
4
6
