ACO 3116 - Display and Output Configuration

― 21 ―
LCD adjustment
<Menu> 3/3
Moni/Level :AC
AutoPwrOff :OFF
LCD cont :*
Baud rate :9600
Setting
4)If you want to go back to the measurement mode, pressing it three times returns to the
Menu
button.

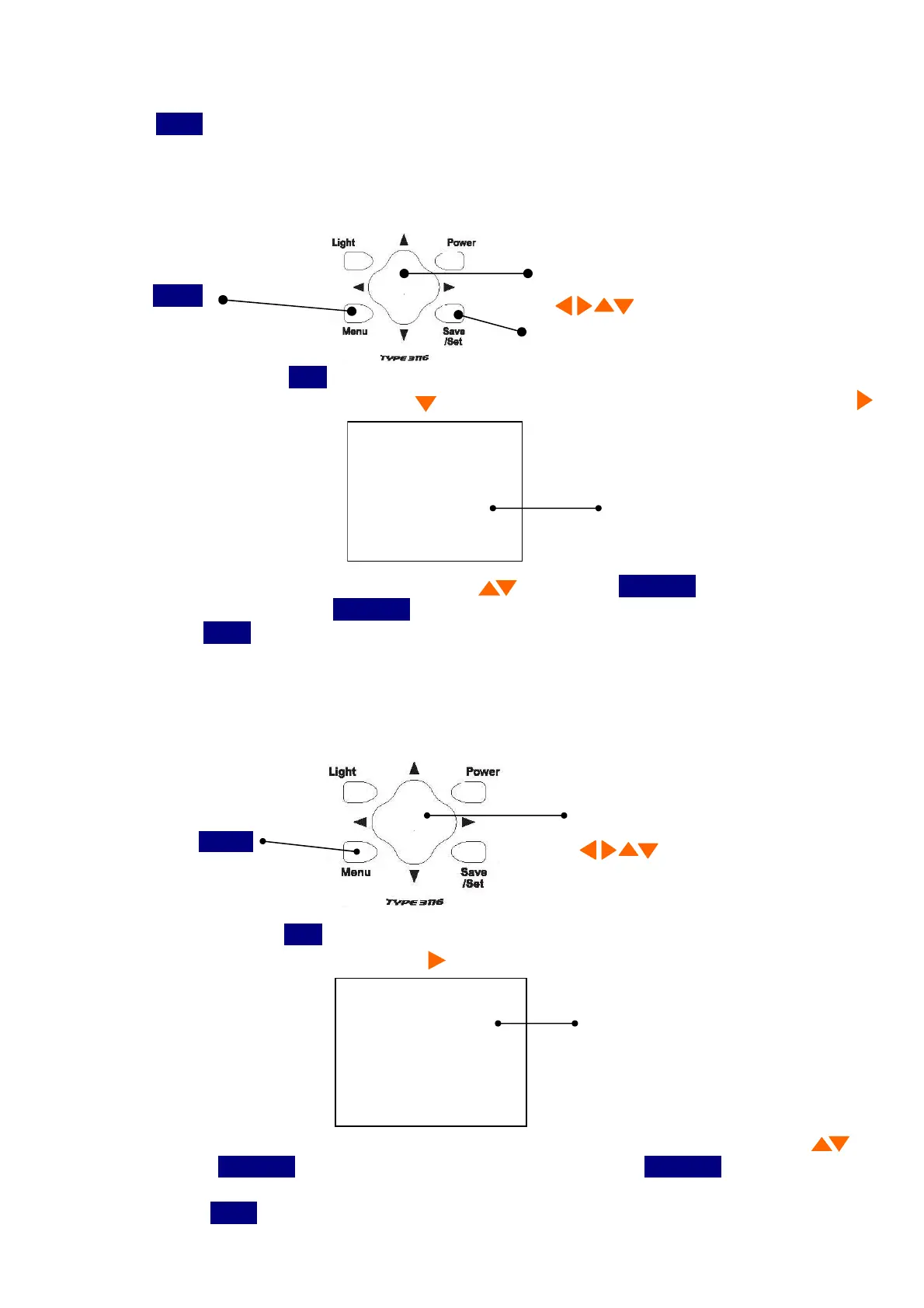

LCD contrast adjustment
You can adjust LCD contrast, when the batteries were low, or when the new batteries were
installed. The procedure is as follows.
1) When you press the
Menu
button three to return to the following screen appears.
2) Select
LCD cont
with
Cursor
button , then move the cursor rightward with cursor button .
3) Adjust the LCD contrast with cursor button , then press
Save/Set
button to save the
setting. After pressing
Save/Set
button, the cursor moves to leftward.
4) Press the
Menu
button one to return to the measurement screen.
Waveform output／Adjustment of head receiver output
When adjust the wave pattern output (AC) and the head receiver output (-3,-2,-1,0,+1,+2,+3,+4),
operate it in the following procedures.
Menu
1）When you press the
Menu
button three to return to the following screen appears.
2）Select
Moni/Level
with
Cursor
button , then move the cursor rightward with cursor button.
<Menu> 3/3
Moni/Level :AC
Waveform output / Adjustment of
AutoPwrOff :OFF
head receiver output
LCD cont :*
Baud rate :9600
3）Adjust the Waveform output / Adjustment of head receiver output with cursor button ,
then press
Save/Set
button to save the setting. After pressing
Save/Set
button, the cursor
moves to leftward.
4）Press the
Menu
button one to return to the measurement screen.
The four directions of cursor button
Menu
Save/Set
The four directions of cursor button
