― 8 ―

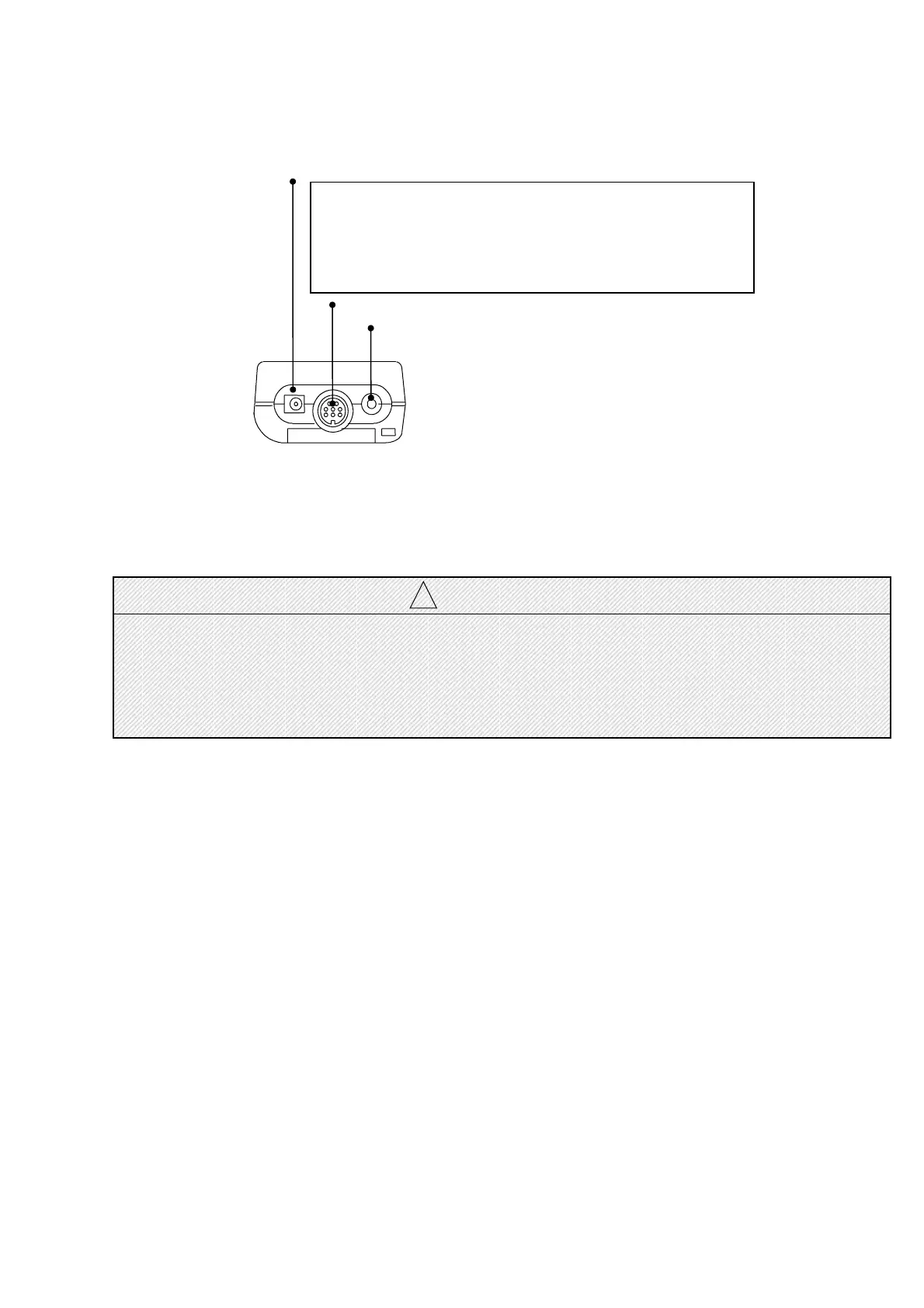

Names and functions of various parts
Base
Interface connector
AC/Headphone output terminal
AC Adapter Terminal (External Power Source Contact Terminal; EXT/DC)
Connect to AC Adapter AC-1046(Option)
！ CAUTION
●
AC adapter of an option Please do not use it except AC-1046. If AC adapter besides
specification is used, it will become the cause of failure, incorrect operation, an electric
shock, and a fire.
●
AC adapter AC-1046 should not take out and insert a power supply plug by the wet hand.
It becomes the cause of an electric shock.
Interface Connector (I/O)
Connect to Personal Computer with Interface cable BC-0026PC.
AC/Portable Headphone Output Terminal
A waveform signal is outputted when Menu 3/3 Moni / Level is “AC”. Moreover, you can act as
the monitor of the vibration value which plug adapter connect with portable headphone of an
option at the time of a level ADJ "-3 and –2････+3".
AC Adaptor terminal
Type：MP-121WH
Manufacturer：MARUSHIN ELECTRIC MFG. CO.,LTD
Plug Type：φ3.4×1.4
Polarity；Outside+
To Next Page
