Vehicle Diagnostics
4

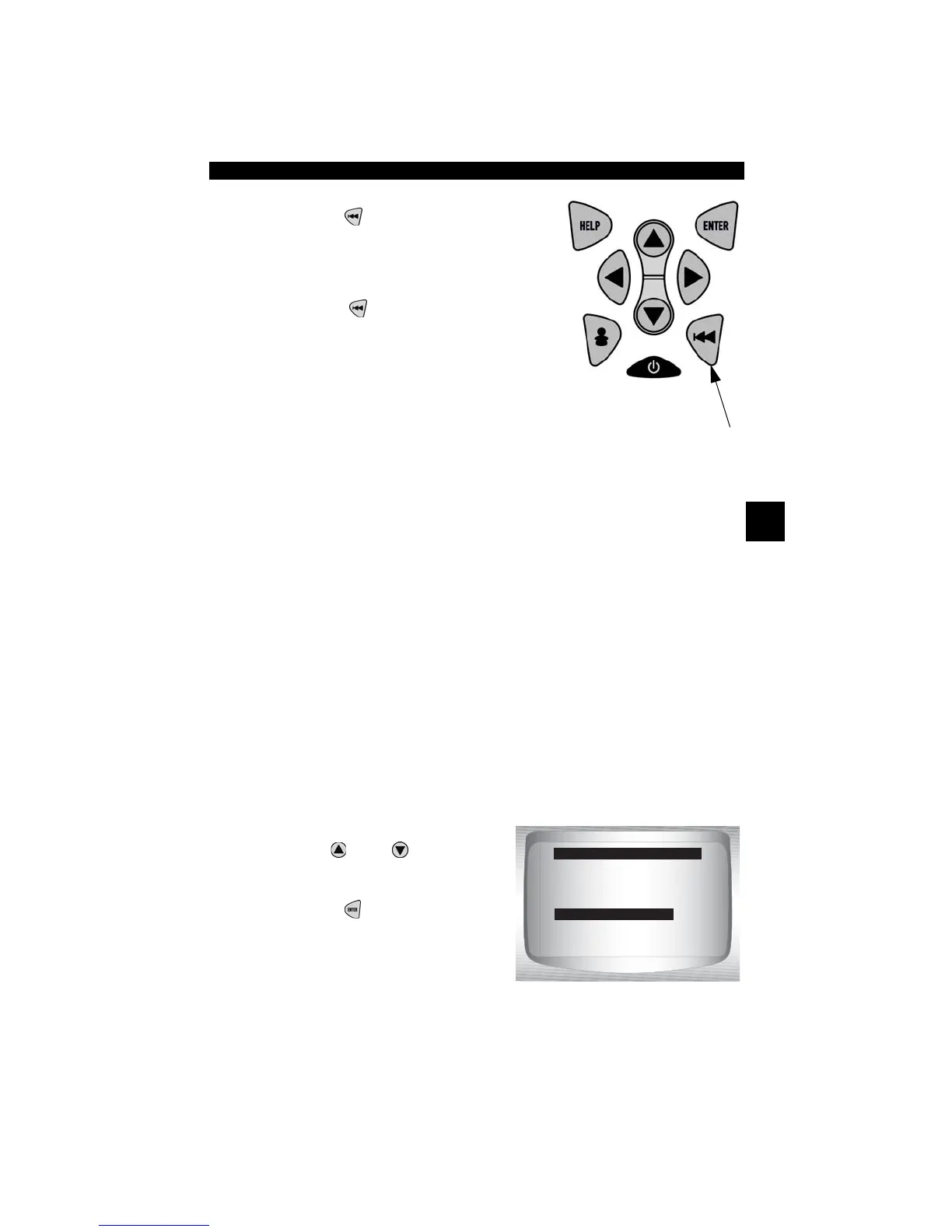

4. Return to O2 Monitor Tests menu.
•Press
BACK
.
5. Return to OBD II Function List.
•Press
BACK
.
Diagnostic Monitor Tests
The Diagnostic Monitor Test function is useful after servicing or after
erasing a vehicle’s memory. Test results do not necessarily indicate a
faulty component or system.
✓ Non-CAN vehicles Diagnostic Monitor Test receives test results for
emission-related powertrain components and systems that are not
continuously monitored.
✓ CAN vehicles Diagnostic Monitor Test receives test results for
emission-related powertrain components and systems that are and
are not continuously monitored.
✓ Vehicle manufacturer is responsible for assigning test and component
IDs.
From the OBD II Function List:
1. Select
Diag Mon Tests.
•Use
UP
or
DOWN
arrow
key until Diag Mon Tests is
highlighted.
•Press
ENTER
.
✓ Applicable Diagnostic Monitor Tests are displayed.
OBD II Function List
=====================
View Fre eze Data
Drive Cycle Monitor
O2 Monitor Test
Diag Monitor Test
On-Board Systems
Record Data
Vehicle Information
To Next Page
