Ferroresonant L-828/L-829 CCR Description

 2009 ADB Airfield Solutions, Incorporated

96A0288T 2-1

Section 2

Description

This section describes the ADB Airfield Solutions Signature Series.

Ferroresonant, L-828/L-829, constant current regulators (CCRs). These

CCRs are manufactured according FAA specification AC 150/5345-10F.

NOTE: Signature Series is a trademark of ADB Airfield Solutions.

See Figure 2-1. This subsection describes the L-828 CCR. The L-828

uses a Universal Regulator Controller (URC) to provide regulator and

control functions.

NOTE: Figure 2-1 shows a ferroresonant 15 kW/6.6 A L-828 CCR. The

other L-828 CCRs (4, 7.5, 10, 20-30 kW/6.6 A/20 A and 50/70kW) may

differ in size and appearance.

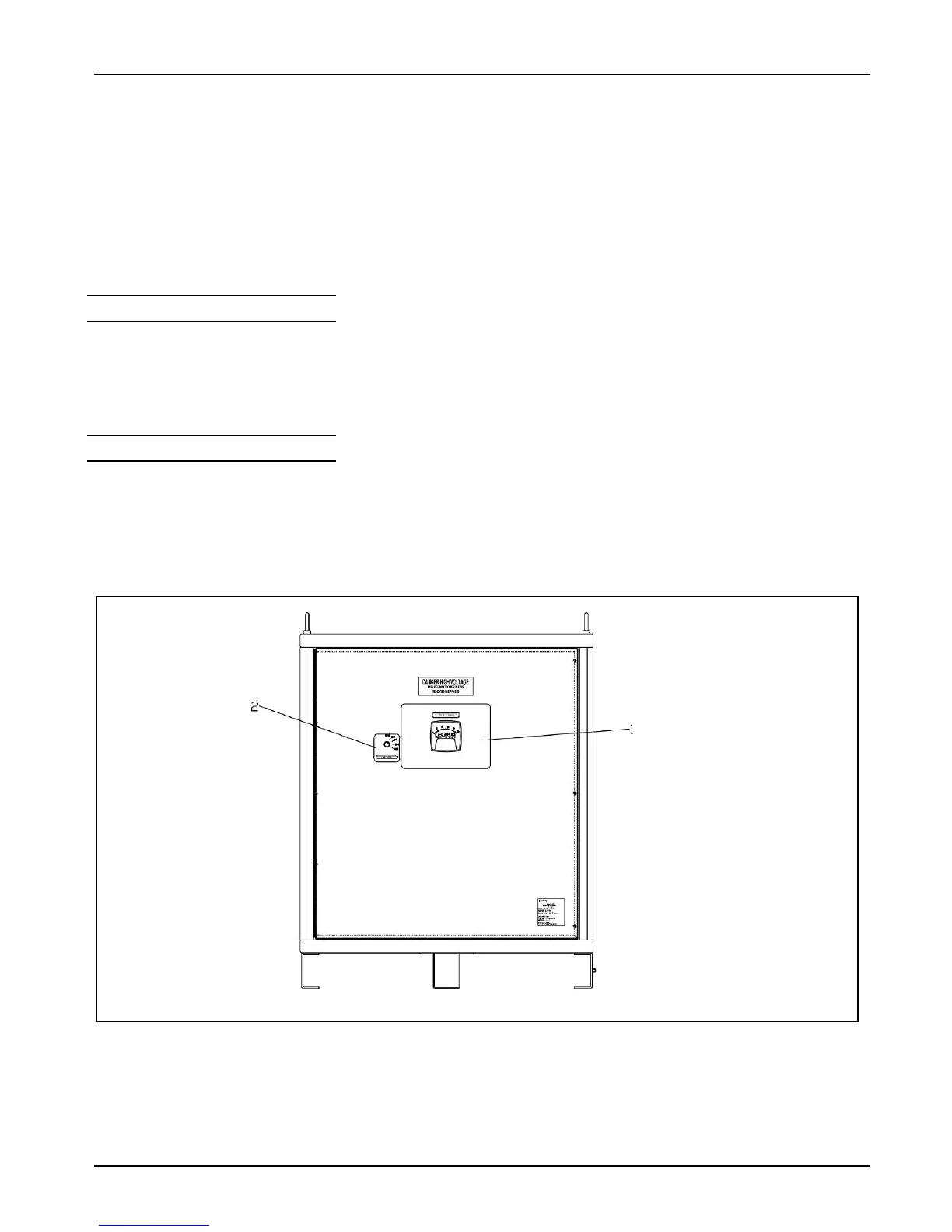

Figure 2-1 L-828 CCR (4 -30kW/6.6 A)

1. Ammeter (shown) or Digital Power Meter

2. Rotary Switch

Introduction

2. L-828 CCR
