Ferroresonant L-828/L-829 CCR Installation

 2009 ADB Airfield Solutions, Incorporated

96A0288T 3-7

3. Remove the 4 eye bolts from the anchored CCR.

4. Stack the second CCR by positioning its 4 holes carefully on top of

the holes of the CCR anchored to the concrete floor.

5. Install the 4 hex head bolts and split lock washers (See Figure 3-3,

Item 1 and Figure 3-4, Item 1).

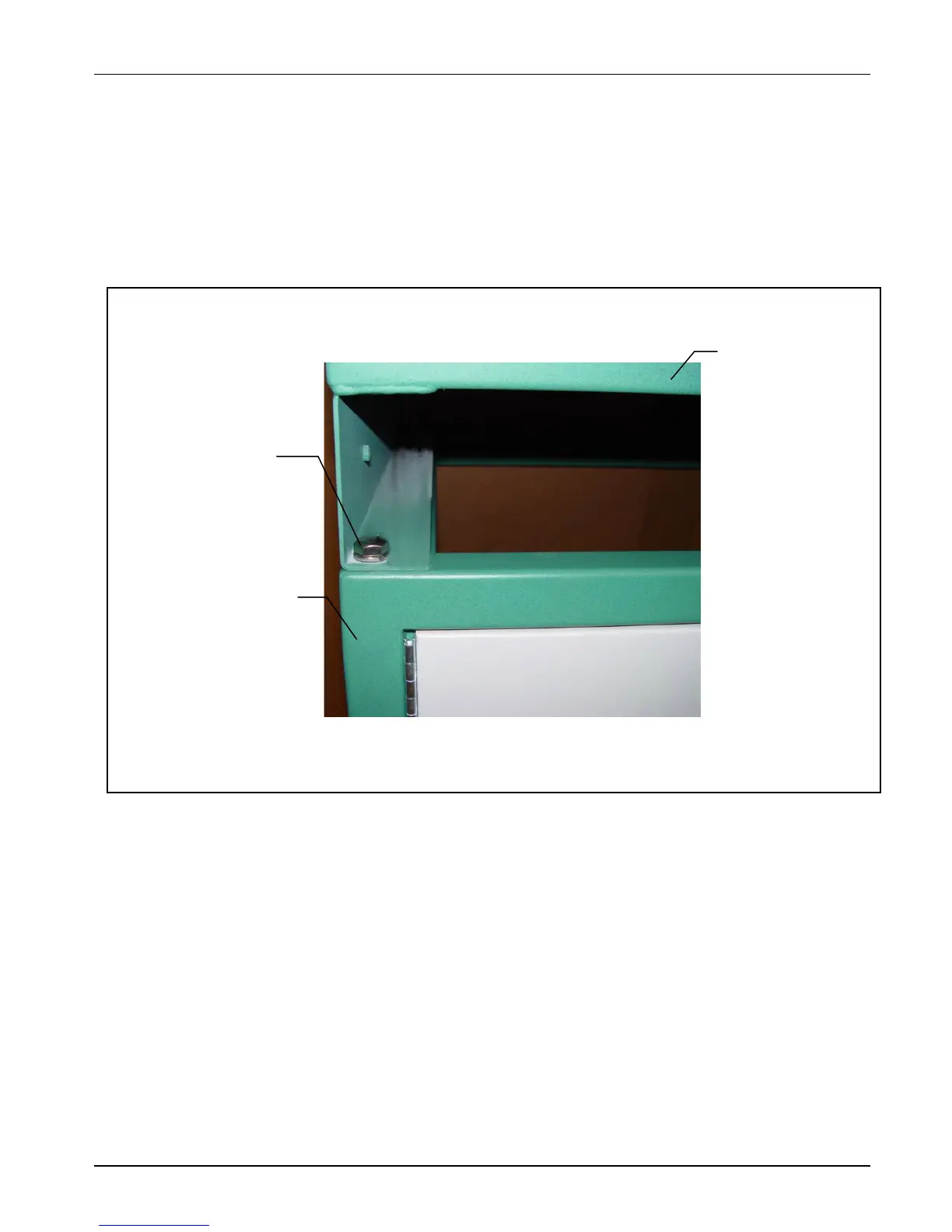

Figure 3-3 Stacking Bolt

1. Stacking Bolt

2. Bottom CCR Anchored to Concrete

3. Top CCR

Stacking CCRs (Optional)

(contd.)
