ADB Signature Series - Figure 4-7 S1 Cutout Maintenance Position; Figure 4-8 S1 Cutout Test and Measure Position

Ferroresonant L-828/L-829 CCR Operation
 2009 ADB Airfield Solutions, Incorporated
96A0288T 4-7
All rights reserved Issued 9/04

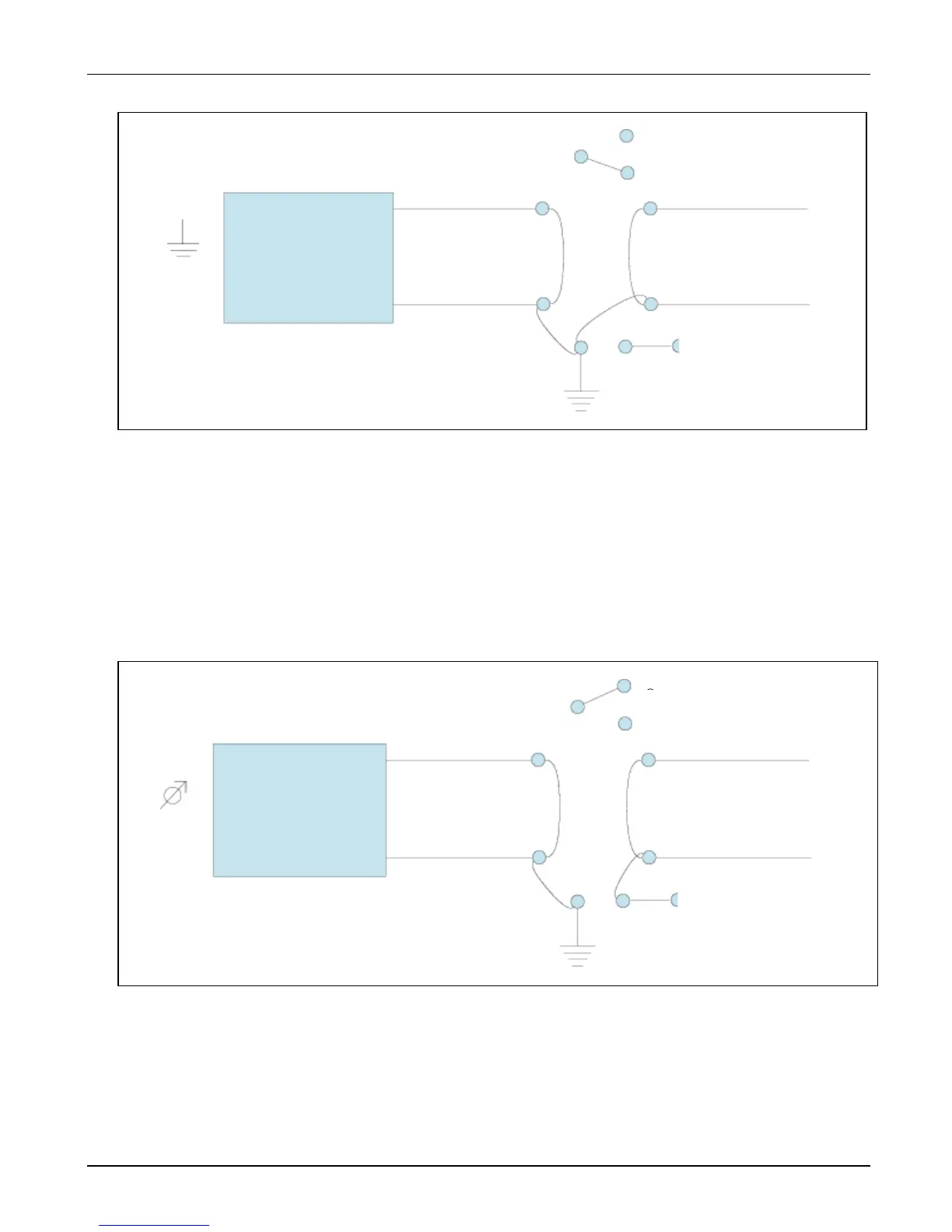

Figure 4-7 S1 Cutout Maintenance Position
You can determine the current orientation by observing the cutoff corner of
the handle.
See Figure 4-8. In the test and measure position, the insulation resistance of
the series circuit can be measured. The regulator operation can be tested
under short-circuited output conditions.
In the test and measure position, the regulator is shorted and grounded; the
series circuit is shorted and connected to the measurement socket. The
microswitch is activated.
Figure 4-8 S1 Cutout Test and Measure Position
Ground
Series Circuit
Regulator
N
O
NC
Measurement
Socket
Ground
Series Circuit
Microswitch
