Ferroresonant L-828/L-829 CCR Parts

 2009 ADB Airfield Solutions, Incorporated

96A0288T 7-8

REAR VIEW

FRONT VIEW

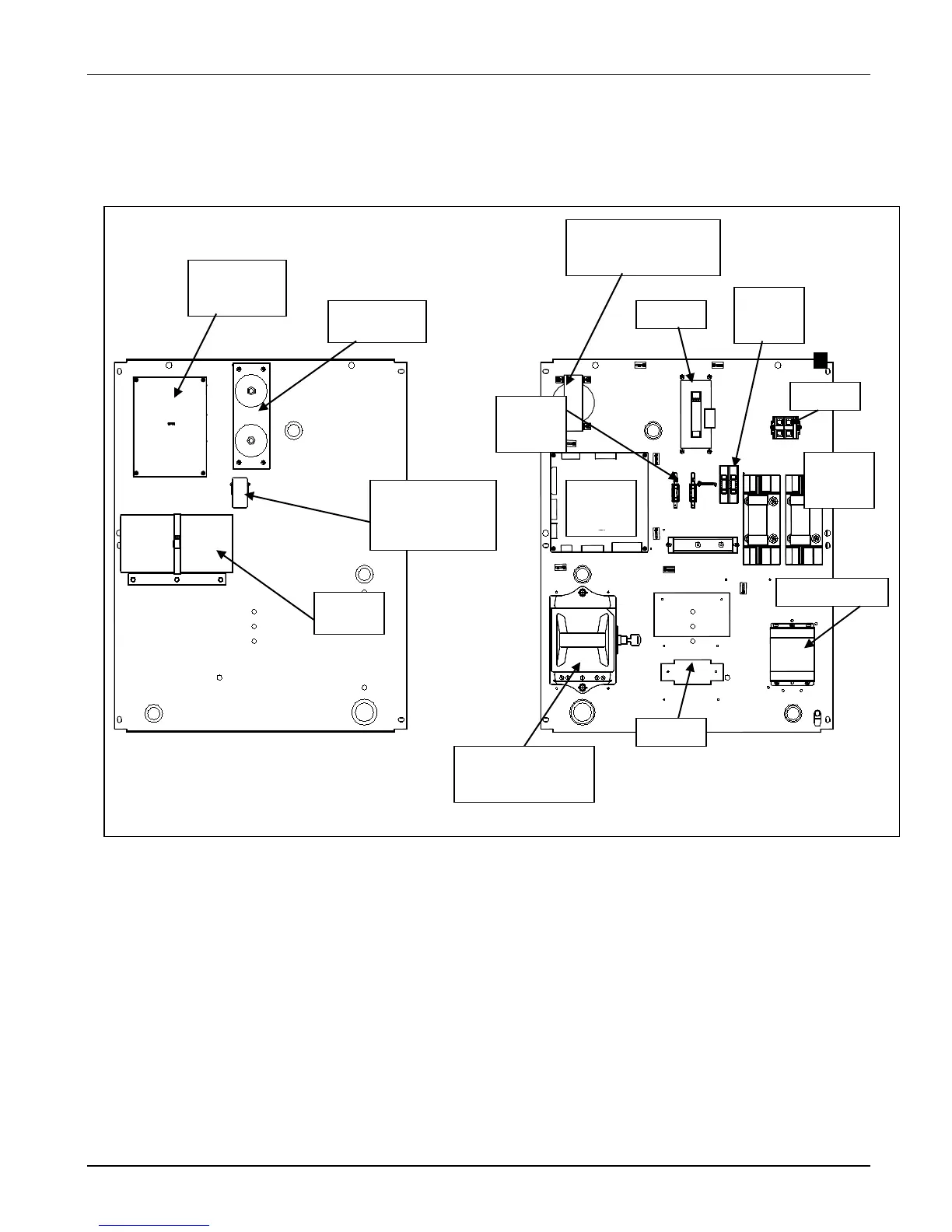

Figure 7-3 CCF-828/L-829 CCR Component Mounting Plate Parts (Part 1 of 3)

NOTE: Location of components may vary depending upon the size of the regulator. See Numerical Parts Listing

Tables for component part numbers and complete description for a specific size ccr.

L-828/L-829 CCR General

Assembly Parts List (contd.)

Varistors

IRMS

PCB

Current

Sensing

Transformer

CVM

Power Supply

Transformer

Fuses

F3/F4

SCR

Contactor

SMR

TB3

Fuses

F1/F2

Fuses

F5/F6

S1/SCO

Series Cutout

URC
