Ferroresonant L-828/L-829 CCR Operation
2009 ADB Airfield Solutions, Incorporated
96A0288T 4-6
All rights reserved Issued 9/04
No adjustment is necessary.

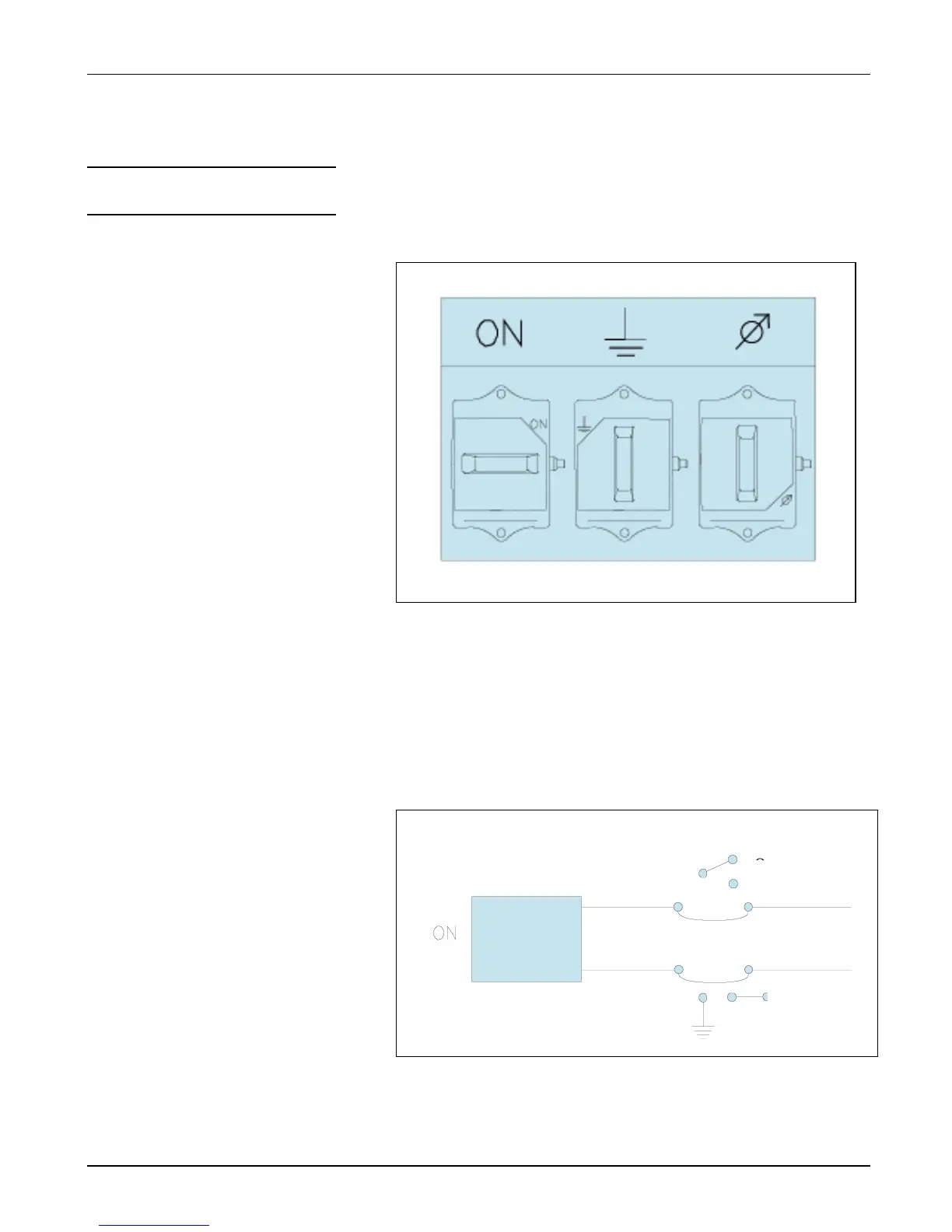

See Figures 4-5 and 4-6. The S1 cutout can be plugged in three
orientations. For additional information on the SCO cutout, refer to
manual 96A0294, SCO Cutout.
Figure 4-5 Handle Orientations
In the operation position, the regulator is connected to the series circuit, and
the microswitch is activated.
NOTE: An activated microswitch means that the normally open contact is
closed and that the normally closed contact is open. For interlocking with
the CCR, only the normally open contact is used. When the cover is
removed, the microswitch is not activated.
Figure 4-6 S1 Cutout Operation Position
See Figure 4-7. In the maintenance position, the regulator and the series
circuit are both shorted and grounded. The microswitch is not activated.
Working Positions
