Ferroresonant L-828/L-829 CCR Description
2009 ADB Airfield Solutions, Incorporated
96A0288T 2-5
All rights reserved Issued 9/04
See Figure 2-2 and picture below. The L-829 ACE (or ACE2) control and
monitoring unit consists of an integrated control unit that is interfaced to
each CCR either internally or within a small external enclosure. The ACE
printed circuit boards are mounted inside a small and rugged
environmental enclosure that is directly attached to the door of the L-829
CCR. The ACE consists of microprocessor-based module(s) that
processes communication, control commands, input/output interface, and
failsafe functionality for controlled elements in the airfield lighting vault.

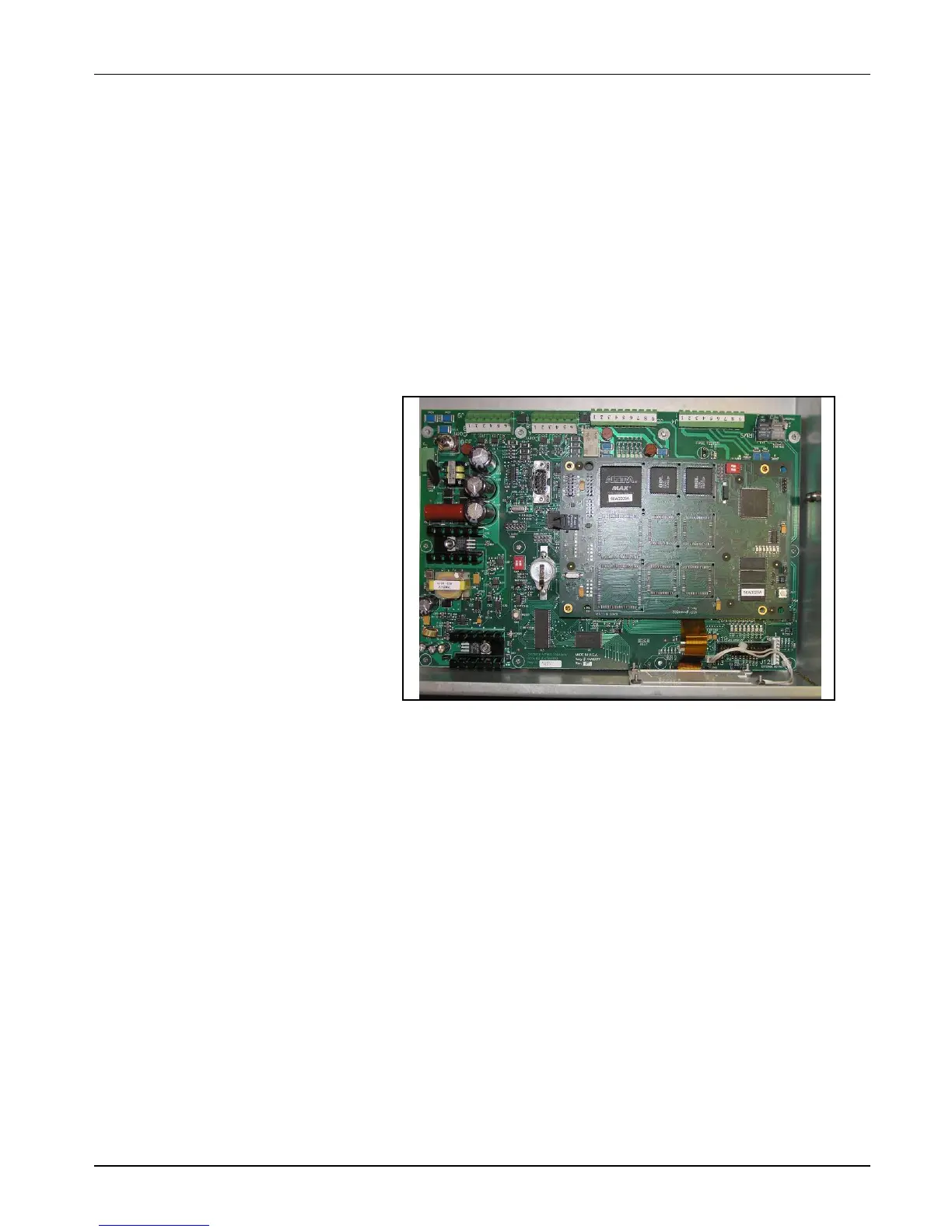

ACE2 Control Board
For more information about the ACE, See:
Advanced Control Equipment (ACE) manual 96A0287 or the
Advanced Control Equipment (ACE2) manual 96A0357.
See manual 96A0348 for the ACE Programming Manual.
