ADB Signature Series User Manual

Ferroresonant L-828/L-829 CCR Installation
 2009 ADB Airfield Solutions, Incorporated
96A0288T 3-5
All rights reserved Issued 9/04
CAUTION: Before stacking CCRs larger than 10 kW or
stacking more than 2 CCRs, contact the ADB Airfield Solutions
Sales Department.
To stack CCRs, perform the following procedure:
1. Remove the four ½ x 3−3/4 HILTI anchor bolts with 4 nuts and lock
washers for anchoring the CCRs to concrete, and the four 1/2−13 x ¾
hex head bolts and ½ split lock washers from the stacking kit (Part
Number 94A0355).
2. See Figure 3-2 for anchor bolt template. Use the four ½ x 3.75 Lg
HILTI anchor bolts with 4 nuts and lock washers to anchor the CCR to
the concrete floor.
NOTE: Make sure the clearance behind the CCR is far enough from
the wall for easy access to the regulator.
CCR SIZE
(Reference Table 2-12)
A
B
C
D
33 x 24 x 25 in
22.50
23.50
23.75
24.75
36 x 29 x 30 in
27.50
28.50
28.75
29.75
40 x 33 x 34 in
31.50
32.50
32.75
33.75
70 x 33 x 34 in
30.00
32.00
33.00
34.00

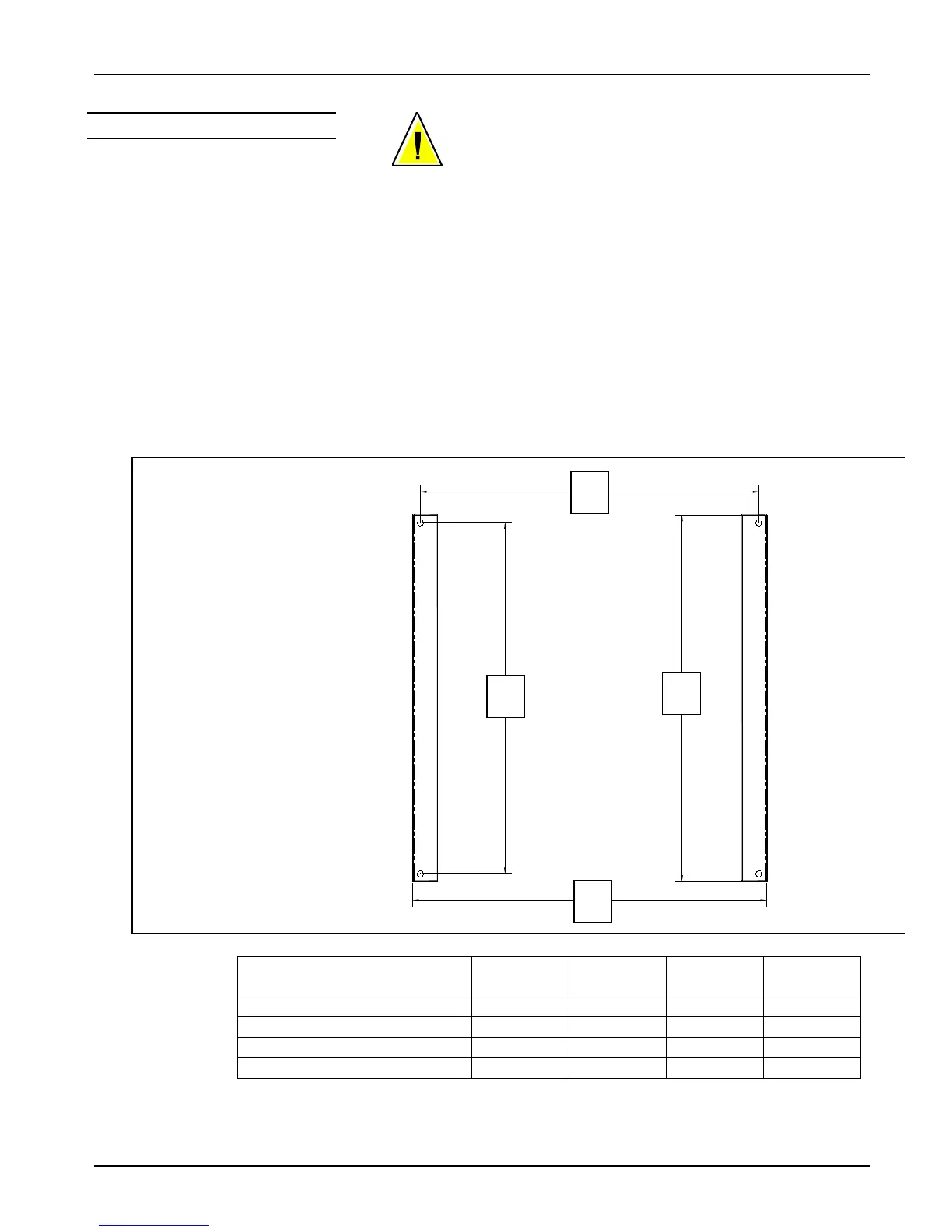

Fig 3-2 Anchor Bolt Template
4. Stacking CCR’s (Optional)
D
B
A
C
