Ferroresonant L-828/L-829 CCR Wiring Schematics

 2009 ADB Airfield Solutions, Incorporated

96A0288T Page 8-4

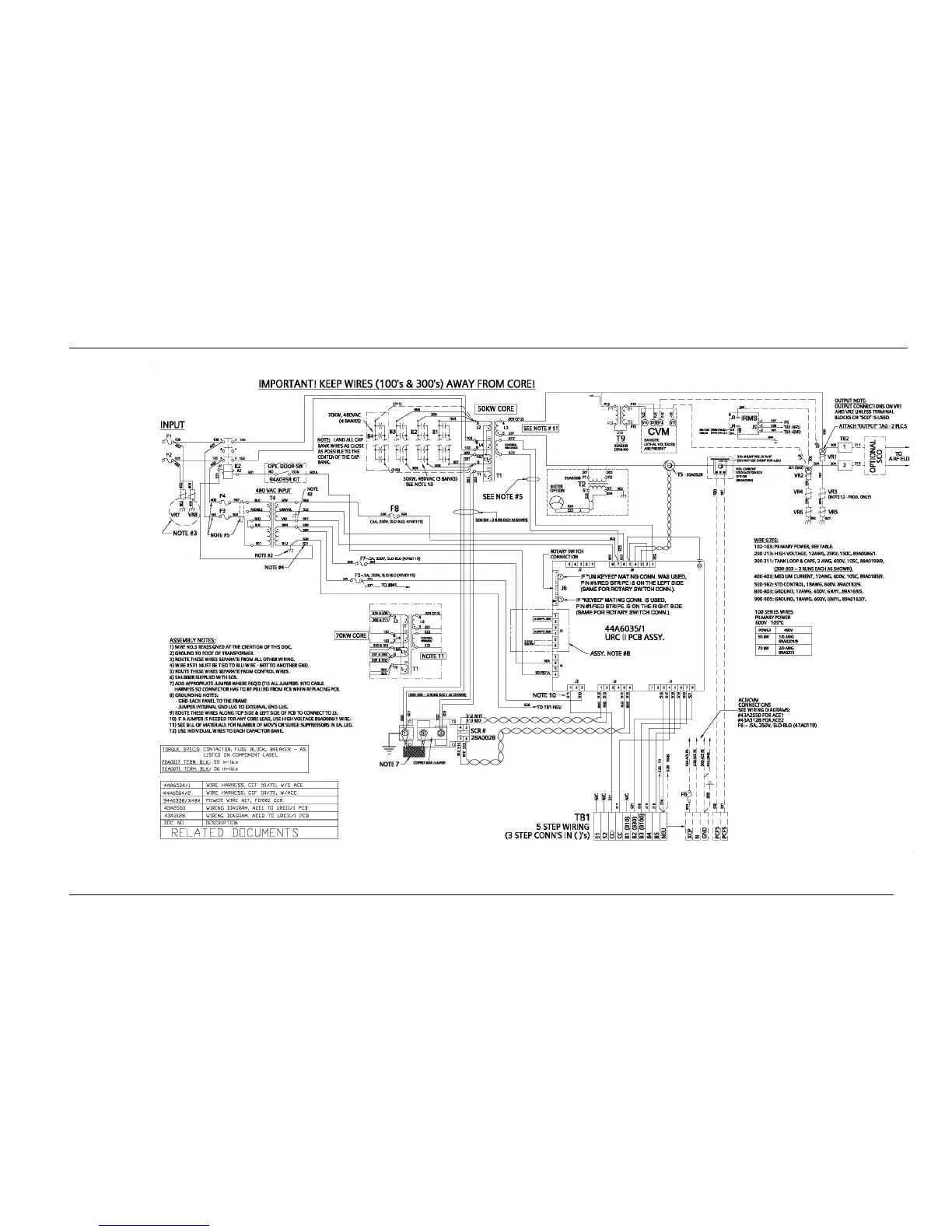

Figure 8-3 L828 Ferro CCF 20A, 50-70kW Internal Wiring Schematic (Part 1 of 1 )
