Adtech TV5600-B01 Series User Manual

User Manual of TV5600-B01 Series Dispensing Control System
11
1.03 Dispenser related terms
Assume that every revolution of the screw or pulley is L mm and the required pulse per
revolution is P.
Pulse equivalent: the length a pulse travels in millimeters, i.e. L/P.
Speed: Indicates the speed of the axis movement, unit: mm/s
Acceleration: Indicates the speed of the axis speed change, unit: mm/s
2
Starting speed: The starting speed of general stepping motor should be less than 3L mm/s,
and the starting speed of servo motor should be less than 5L mm/s.
Maximum speed: 20L mm/s for stepping motor, 50L mm/s for servo motor

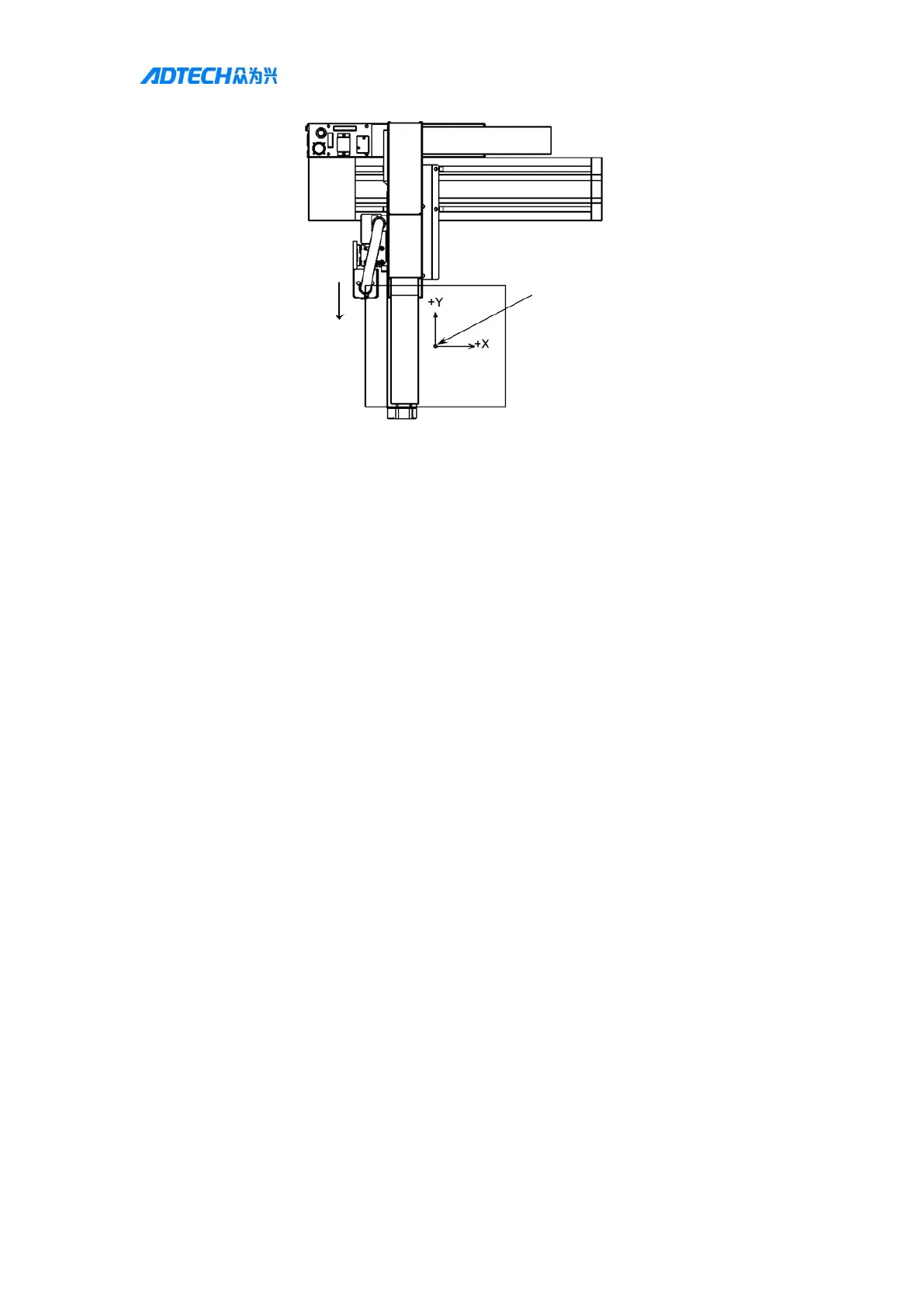

-Z looking
down
Origin
