User Manual of TV5600-B01 Series Dispensing Control System
82
ADT-9143 (DB15 needle,3 pins)
Connection
8860(DB9 female)
Pin
Function
Function
Pin
1
GND
GND
5
2
RXD
TXD
2
3
TXD
RXD
3
15
VCC (5.0V)
VCC(5.0V)
8(or 7)

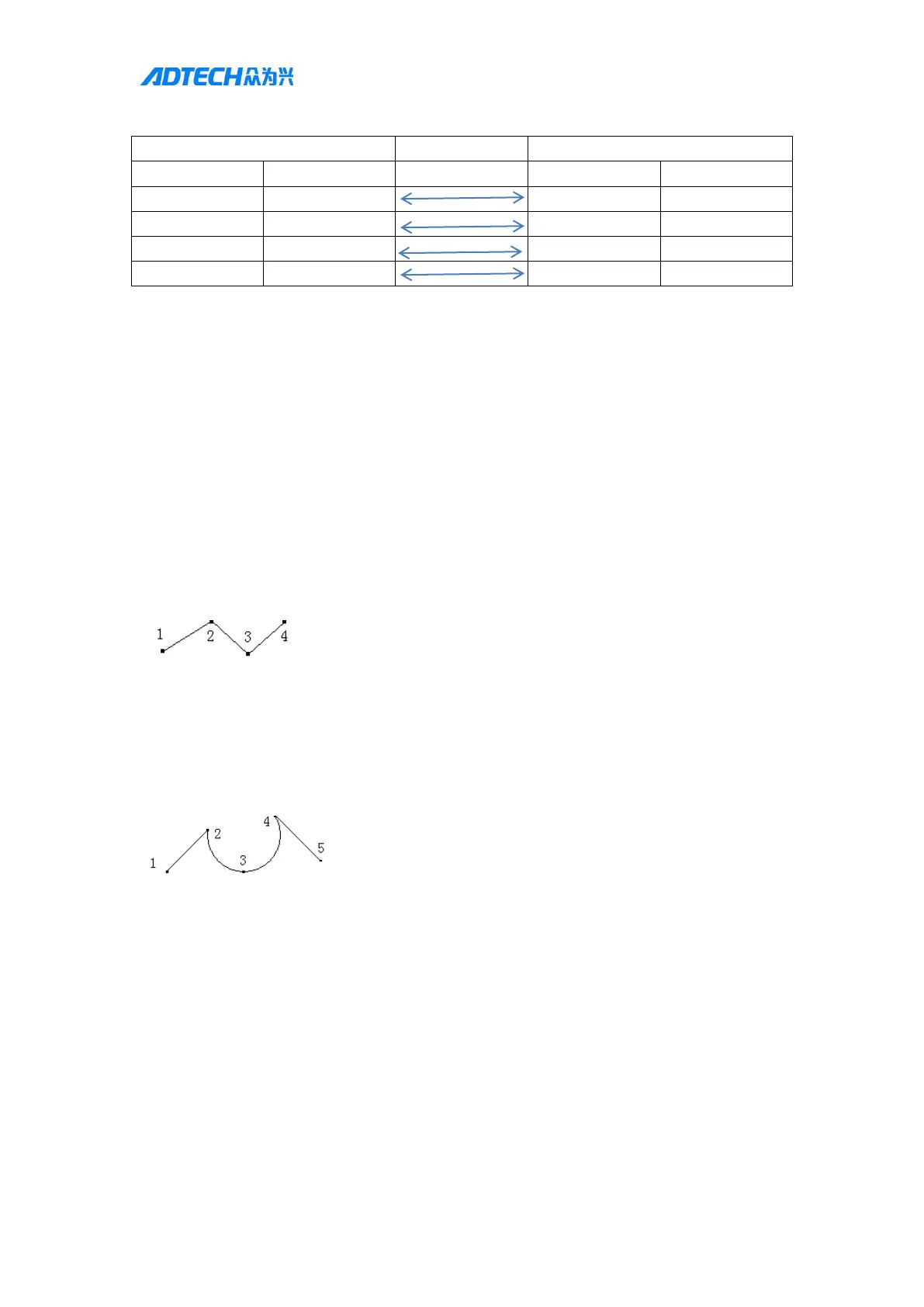

10.Transition arc instruction
New instruction: transition arc instruction[Edit status - Other instructions--- Transition arc]
Parameters:
1. Transition speed mode: follow, custom [follow: follow the track speed to make the corner;
custom: use the set speed]
2. Transition speed: Custom corner speed
3. Transition error: Custom corner angle
Function: Customized automatic fillet operation for the next corner
Eg:
1.
The track is: Start point - straight line - straight line - end point
If a 
Start point - transition arc - straight line - straight line - end point
2.
Track: Start point - straight line - arc - end point of arc - end point

Start point - straight line - arc - transition arc - end point of arc - end point
11.Settings of script custom address content
Function: Cooperate with script to develop non-standard items (requires custom variables)
Location: System settings - Custom functions:
Straight line
End point
Start point
Straight line
Straight line
End point of arc
Start point
End point
Arc
