User Manual of TV5600-B01 Series Dispensing Control System

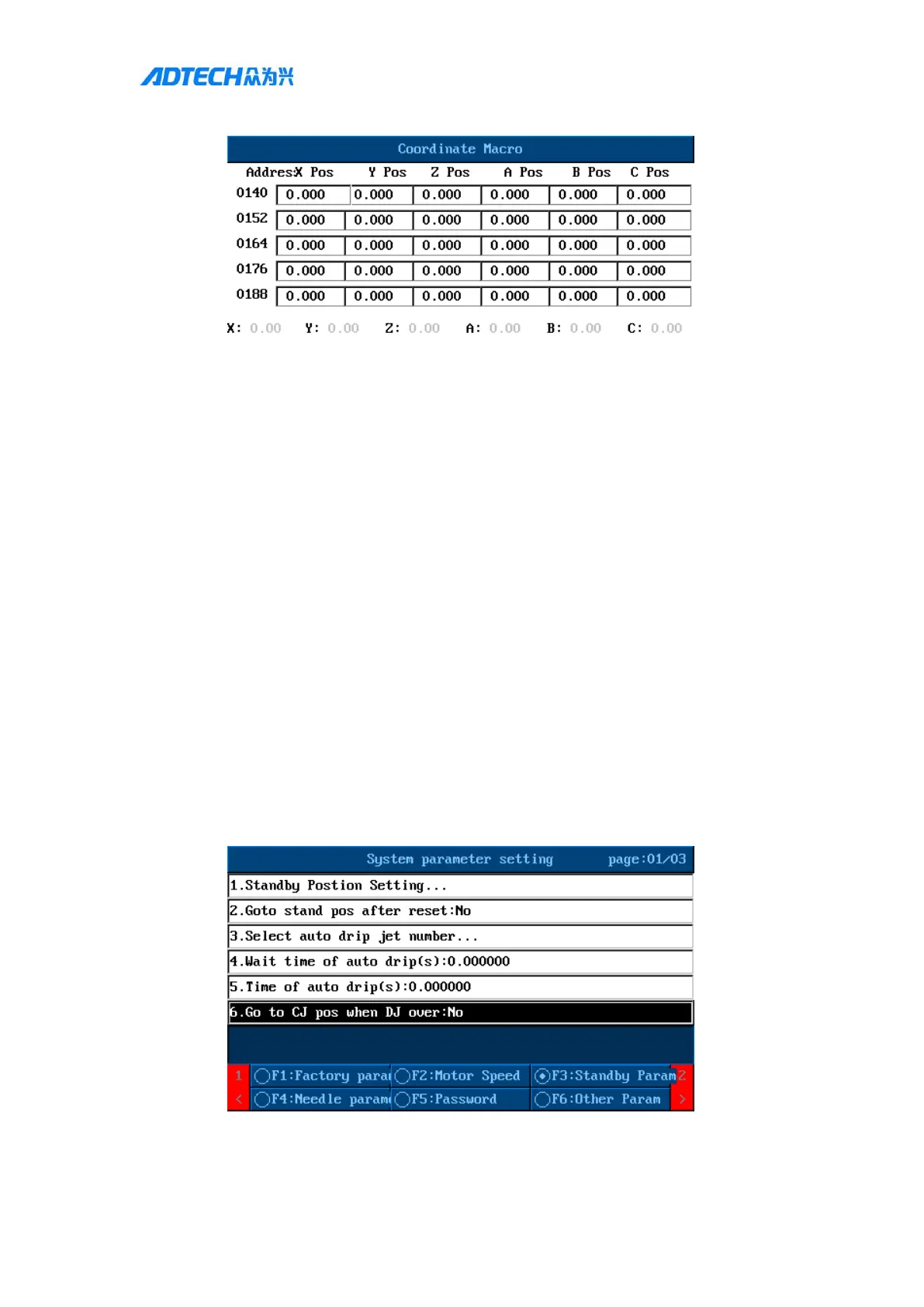

Coordinate variable
The first column is the corresponding system parameter, the user-defined coordinate start
address (the address saved by the X coordinate); other columns represent the coordinates
corresponding to each axis, and support the teaching and modification functions.
12.Boot interface logo production
You can create a24-
handh\
13.Wiping function operation
Function: Clean and wipe glue gun, two modes: 1. Wipe:wipe glue by XY movement; 2. Custom:
after reaching the position, output in-place signal to wipeglue [for cylinder, PLC wiping]; can be
set by parameters
Parameter position: System settings - Standby parameters:
