User Manual of TV5600-B01 Series Dispensing Control System
103

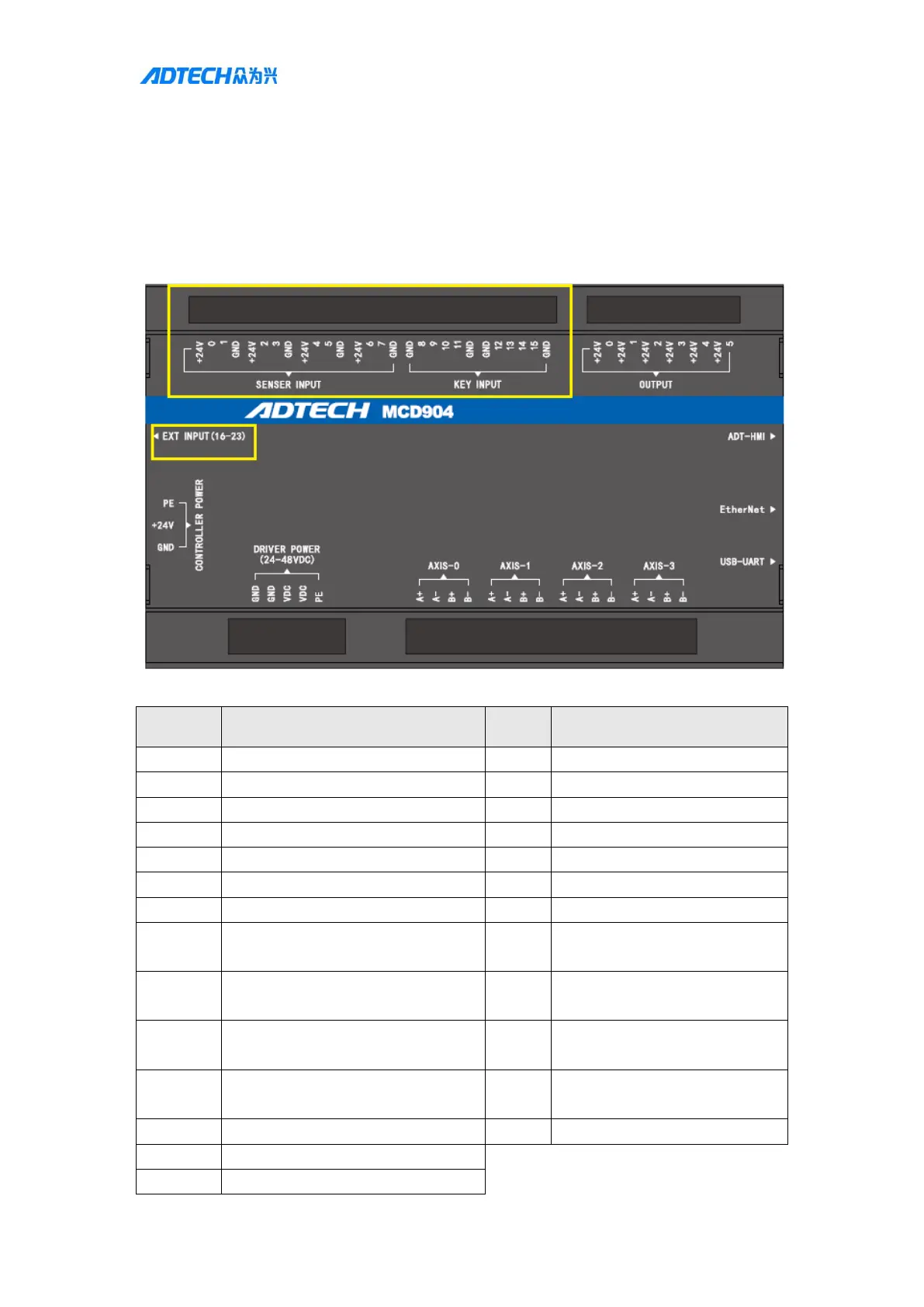

Appendix 6: MCD904 Wiring Instructions
1. Input port wiring instructions
1.01 Common input ports
SENSER
INPUT
Function
KEY
INPUT
Function
+24V
Input common (+24V power supply)
GND
Internal 24V power ground
0
Xhome
8
Custom
1
Yhome
9
Custom
GND
Internal 24V power ground
10
Custom
+24V
Input common (+24V power supply)
11
Custom
2
Z home
GND
Internal 24V power ground
3
R home
GND
Internal 24V power ground
GND
Internal 24V power ground
12
Start, system configuration
required
+24V
Input common (+24V power supply)
13
Emergency stop, allow
configurationand modification
4
Xtravel limit
14
Reset, allow configurationand
modification
5
Ytravel limit
15
Pause, system configuration
required
GND
Internal 24V power ground
GND
Internal 24V power ground
+24V
Input common (+24V power supply)
6
Ztravel limit
