Adtech TV5600-B01 Series User Manual

User Manual of TV5600-B01 Series Dispensing Control System
104
7
Rtravel limit
GND
Internal 24V power ground

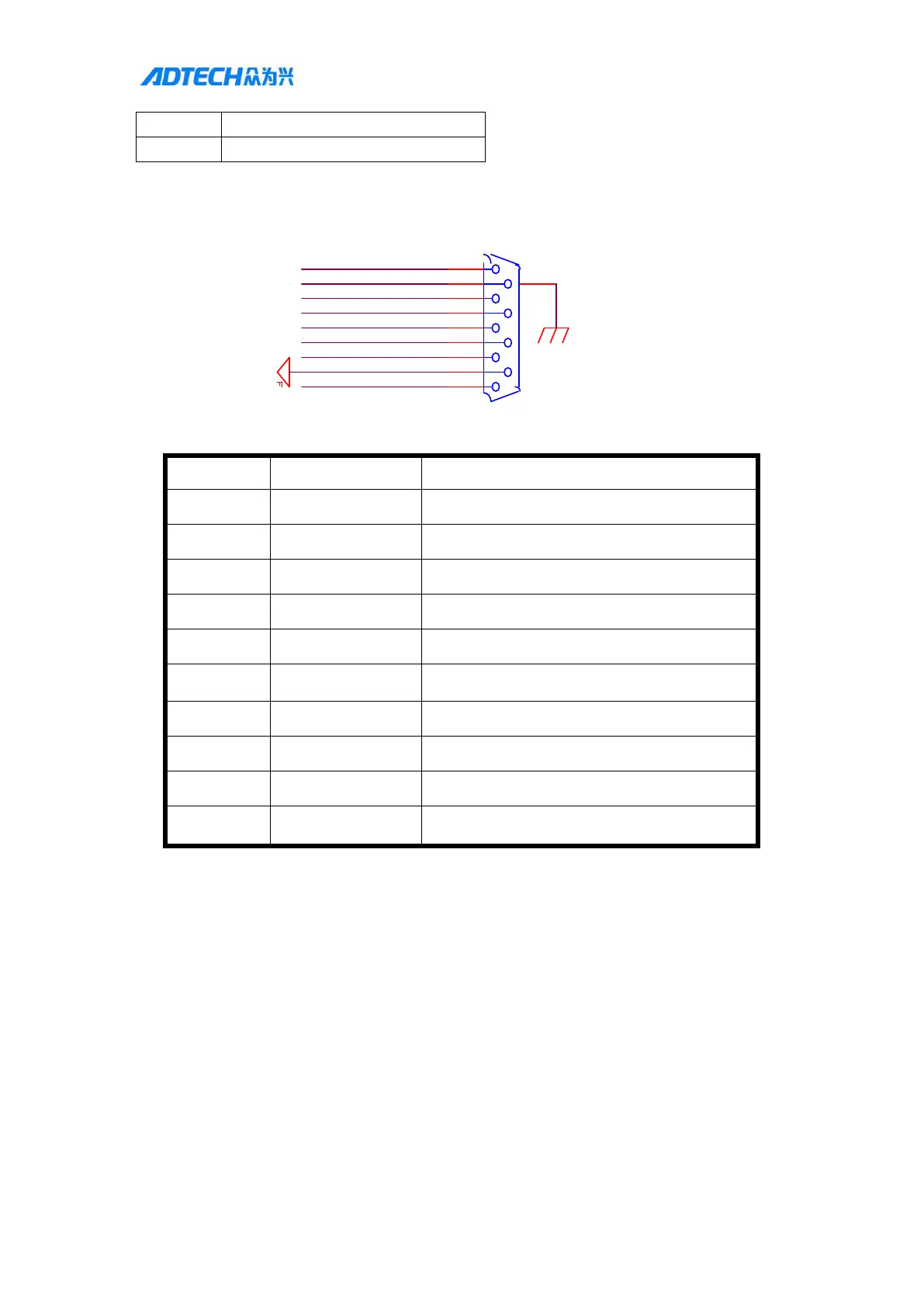

1.02 EXT INPUT (16-23) terminal pin description
Wire No.
Definition
Function
1
EX_IN16
Universal input signal 16
2
EX_IN17
Universal input signal 17
3
EX_IN18
Universal input signal 18
4
EX_IN19
Universal input signal 19
5
EX_IN20
Universal input signal 20
6
EX_IN21
Universal input signal 21
7
EX_IN22
Universal input signal 22
8
EX_IN23
Universal input signal 23
9
24VGND
Internal 24V power ground
10
PE
Protective earth
※Note: Multiple +24V and GND terminals on the common input port are convenient for
multiple sensor wiring. Only one set of +24V and GND need to be connected.
※-
-
※Note: All the above input ports are universal input ports. To occupy the home and limit
ports, simply turn the home and limit configuration function of the corresponding
axis.
※ Note: The input points are all low level effective.
COM1
DB9 angle, female connector, welded plate
5
9
4
8
3
7
2
6
1
10
EX_IN23
EX_IN22
EX_IN19
EX_IN21
EX_IN16
EX_IN17
EX_IN18
EX_IN20
