User Manual of TV5600-B01 Series Dispensing Control System
1.03 Input port wiring method

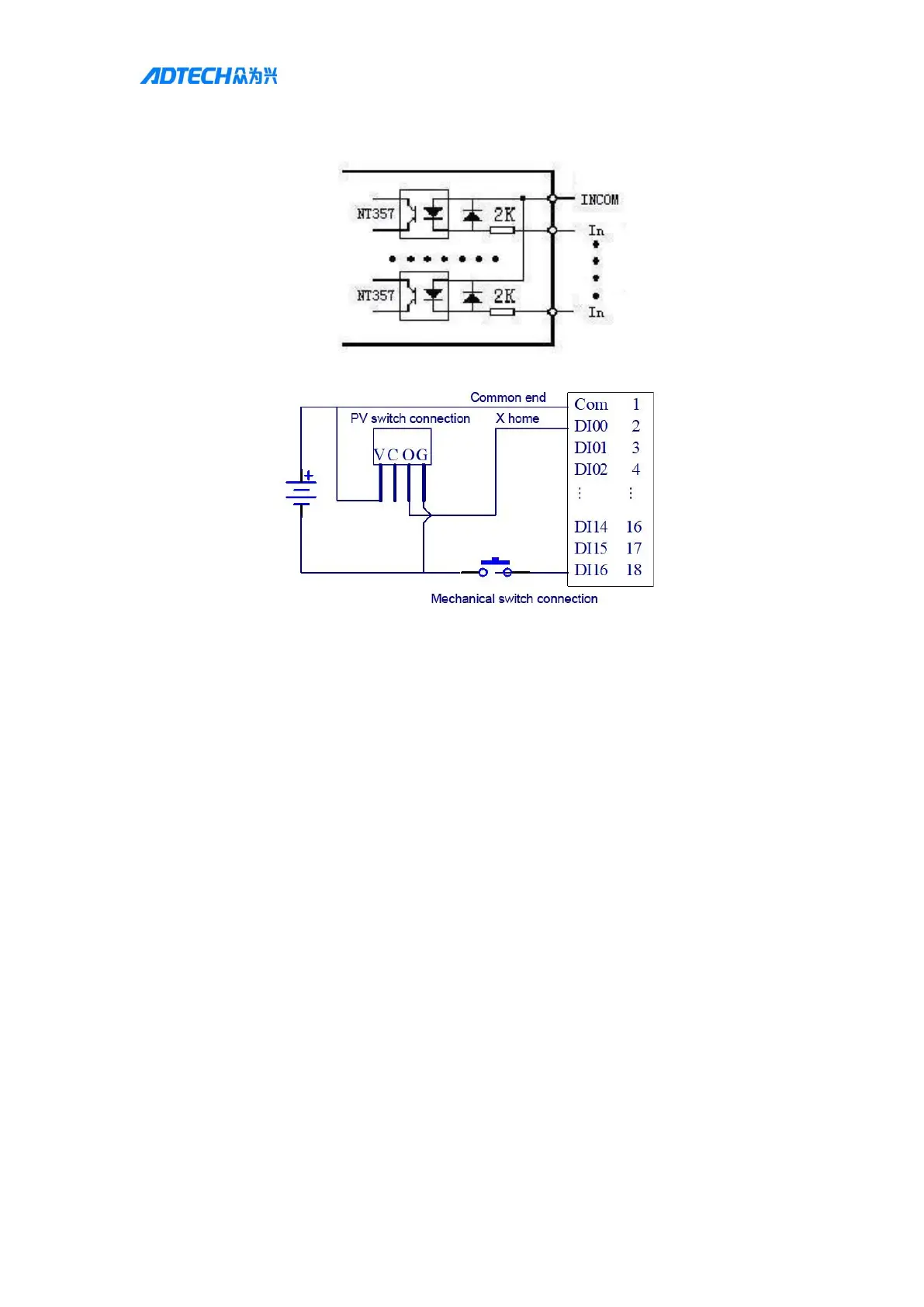

Controller internal input port diagram:
Controller general input connection: (PV switch V means VCC, G means GND, O means output)
The INCOM terminal is connected to the positive terminal of the external power supply, and
the input signal is connected to the corresponding terminal pin. The common end of
IN0-IN16 is INCOM1; the common end of IN17-IN33 is INCOM2; when used, the common
end needs to be connected to +24V power supply, the input point is low level effective, and
the current of single input does not
