User Manual of TV5600-B01 Series Dispensing Control System
85

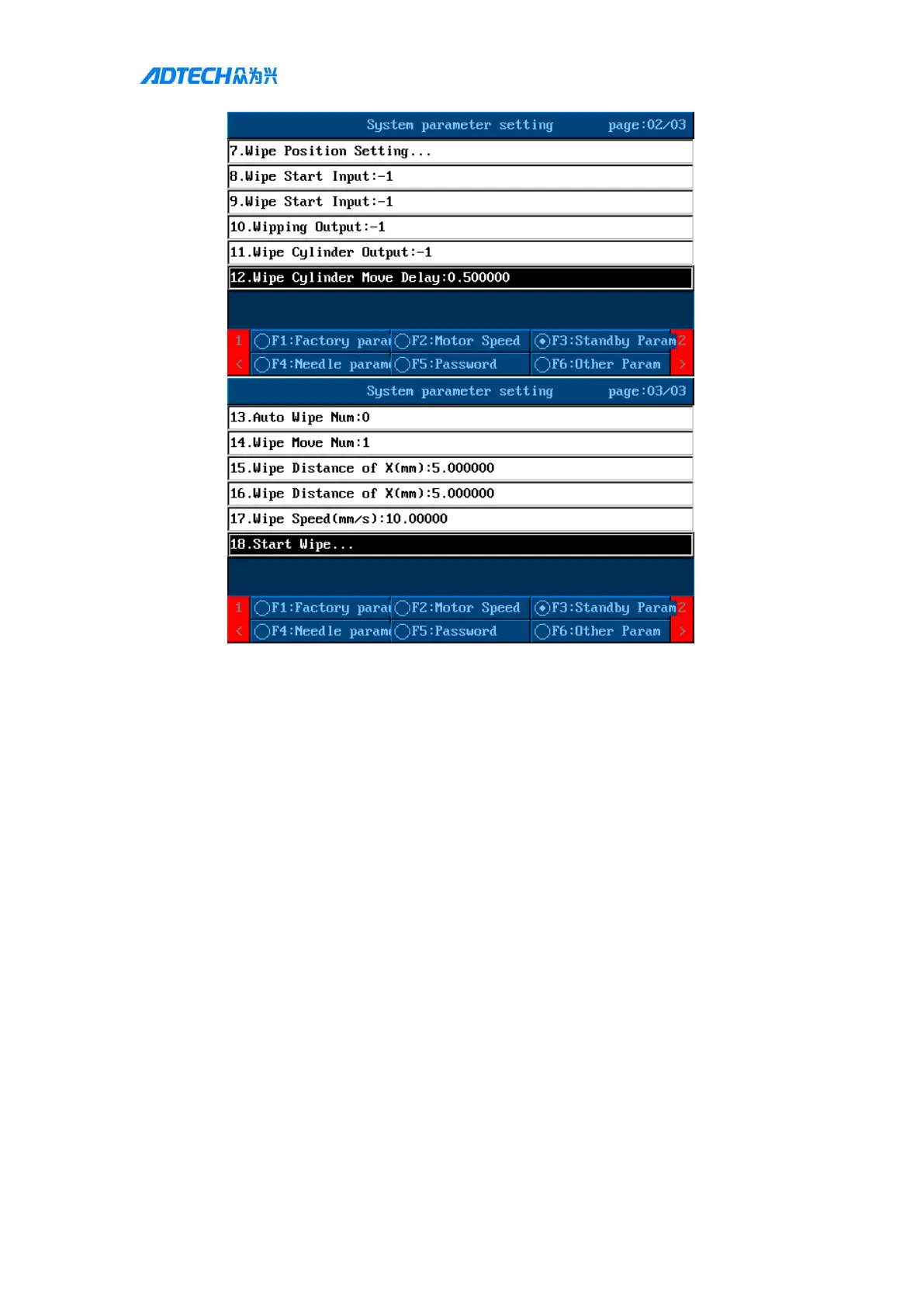

a) Wipe after dispensing: Automatically start wipingwhen the dispensingis finished
b) Wipingposition: The initial position of wiping(cleaning)
c) Wipingstart input signal: Corresponding input signal configuration of external start and
PLC start
d) Wipingend input signal: Input signal of custom wipingend
e) Wipingrunning status output signal: Output signal of wipingrunning
f) Wipingin-place output signal: Output port to wipingposition [configure this port to
determine the wiping mode used; initial setting is -1; if the port is configured, the
custom wipingmodeis used]
g) Auto wipinginterval times: The times of processing before the wipingis performed
automatically [0 indicate that the process will not automatically trigger wiping]
h) Number of wipingactions: The times of action repeatedin XY directionwhen wiping
i) Wiping in-place output time: Response time when customizing wiping
j) Wiping movement distance in X direction: X movement distance when wiping
k) Wiping movement distance inY direction: Y movement distance when wiping
l) Wiping speed: Speed of XY movement when wiping
m) Start wiping: Trigger wiping actionon the hand-held box, used for debugging
