User Manual of TV5600-B01 Series Dispensing Control System

117

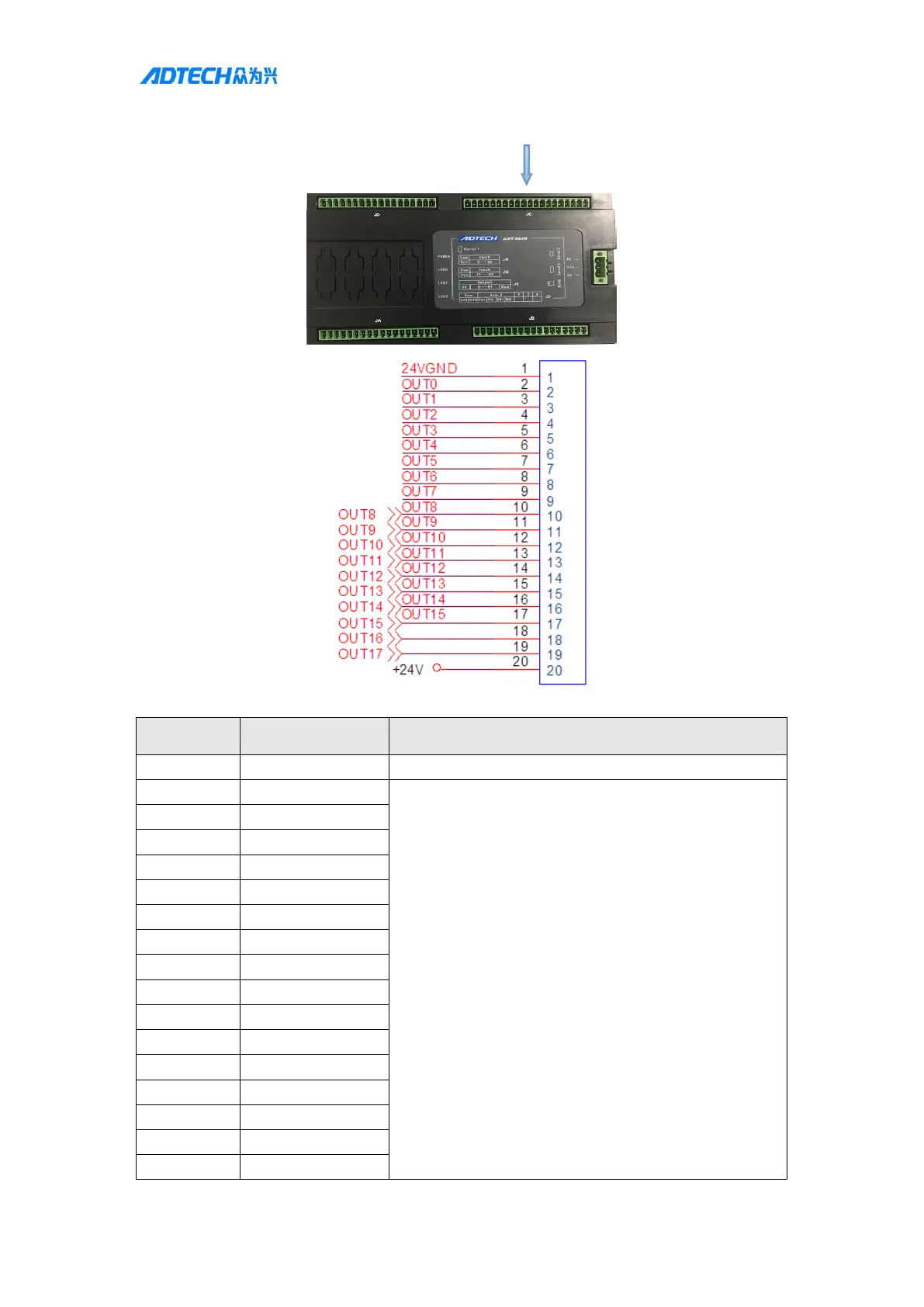

3.ADT-8849 output ports

8849 output ports

JCWire No.

Name

Function

1

24VGND

Output common, 24V ground

2

OUT0

Output0--17

3

OUT1

4

OUT2

5

OUT3

6

OUT4

7

OUT5

8

OUT6

9

OUT7

10

OUT8

11

OUT9

12

OUT10

13

OUT11

14

OUT12

15

OUT13

16

OUT14

17

OUT15
