Adtech TV5600-B01 Series User Manual

User Manual of TV5600-B01 Series Dispensing Control System
119

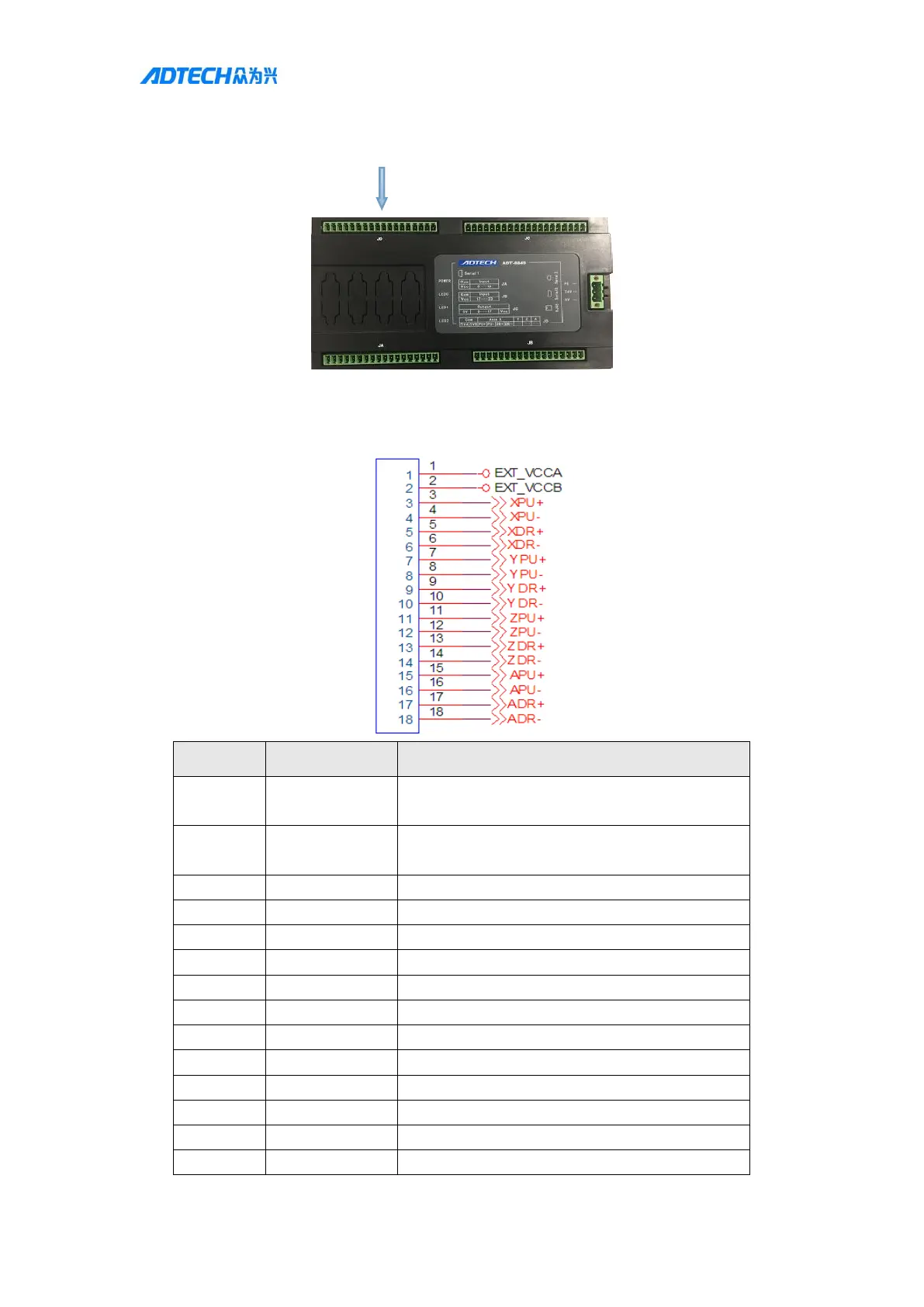

5. ADT-8849 motor driver interface definition
ADT-8849 motor driver interface
ADT-8849 has four motor drive interfaces, which are on the terminal block JD.
Wire No.
Name
Function
1
EXT_VCCA
Supply 5V power externally for X, Y-axis power
supply of common anode connection
2
EXT_VCCB
Supply 5V power externally forZ, A-axis power
supply of common anode connection
3
XPU+
X pulse signal+
4
XPU-
X pulse signal-
5
XDR+
Xdirection signal +
6
XDR-
Xdirection signal -
7
YPU+
Y pulse signal+
8
YPU-
Y pulse signal-
9
YDR+
Ydirection signal +
10
YDR-
Ydirection signal -
11
ZPU+
Z pulse signal+
12
ZPU-
Z pulse signal-
13
ZDR+
Zdirection signal +
14
ZDR-
Zdirection signal -
