Adtech TV5600-B01 Series User Manual

User Manual of TV5600-B01 Series Dispensing Control System
128

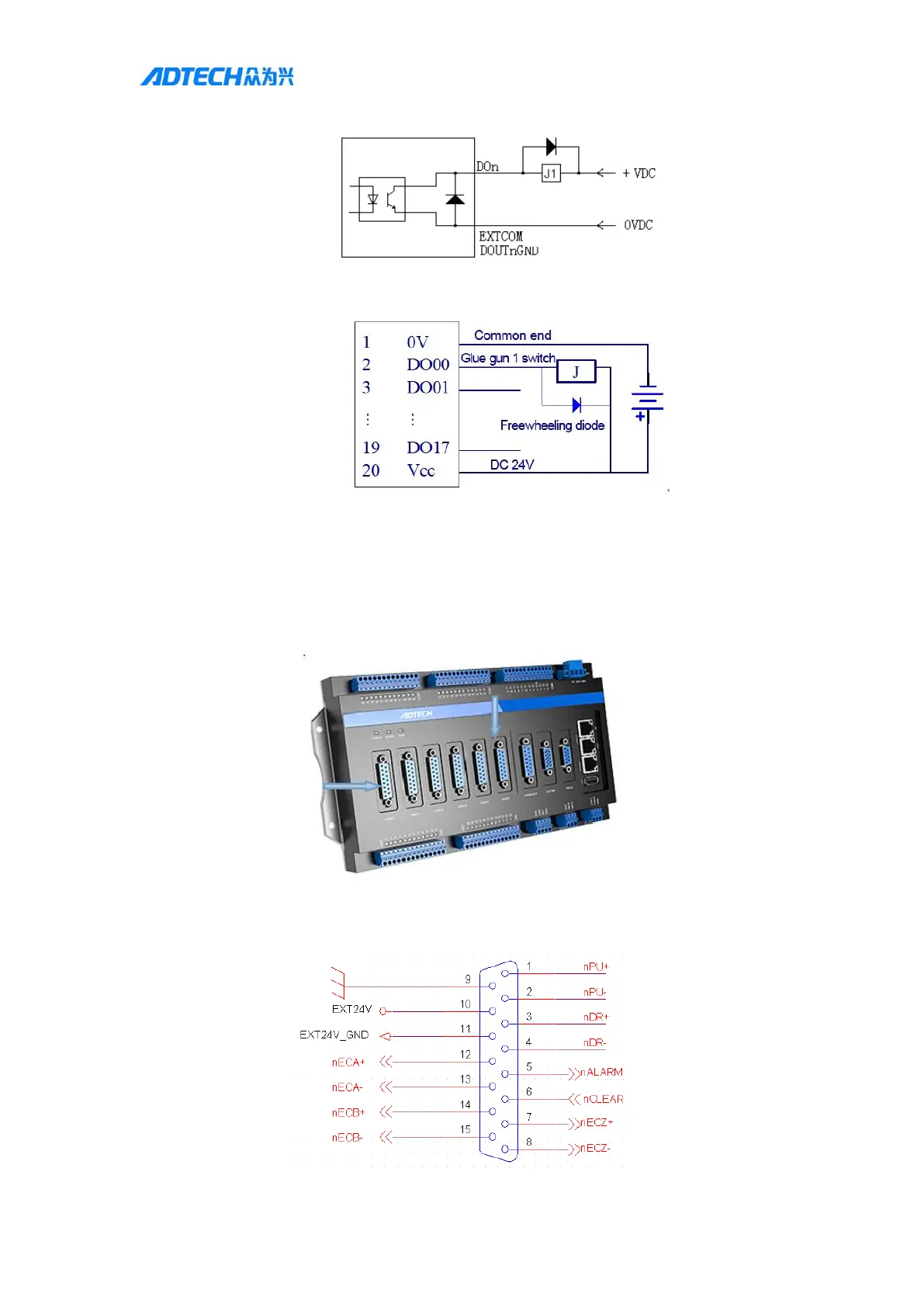

Controller internal output structure diagram
Controller output port general wiring
※Note: The recommended power supply voltage is 24V, preferably not more than 30V. The
positive and negative poles must not be reversed, and the load should not be
short-circuited, or else it will cause accidents!
5. AMC1600P motor driver interface definition
AMC-1600 motor driver interface
or
