A3.2.2. "Hardware Configuration" menu.
A3.2.2.1. "Board Configuration" submenu.

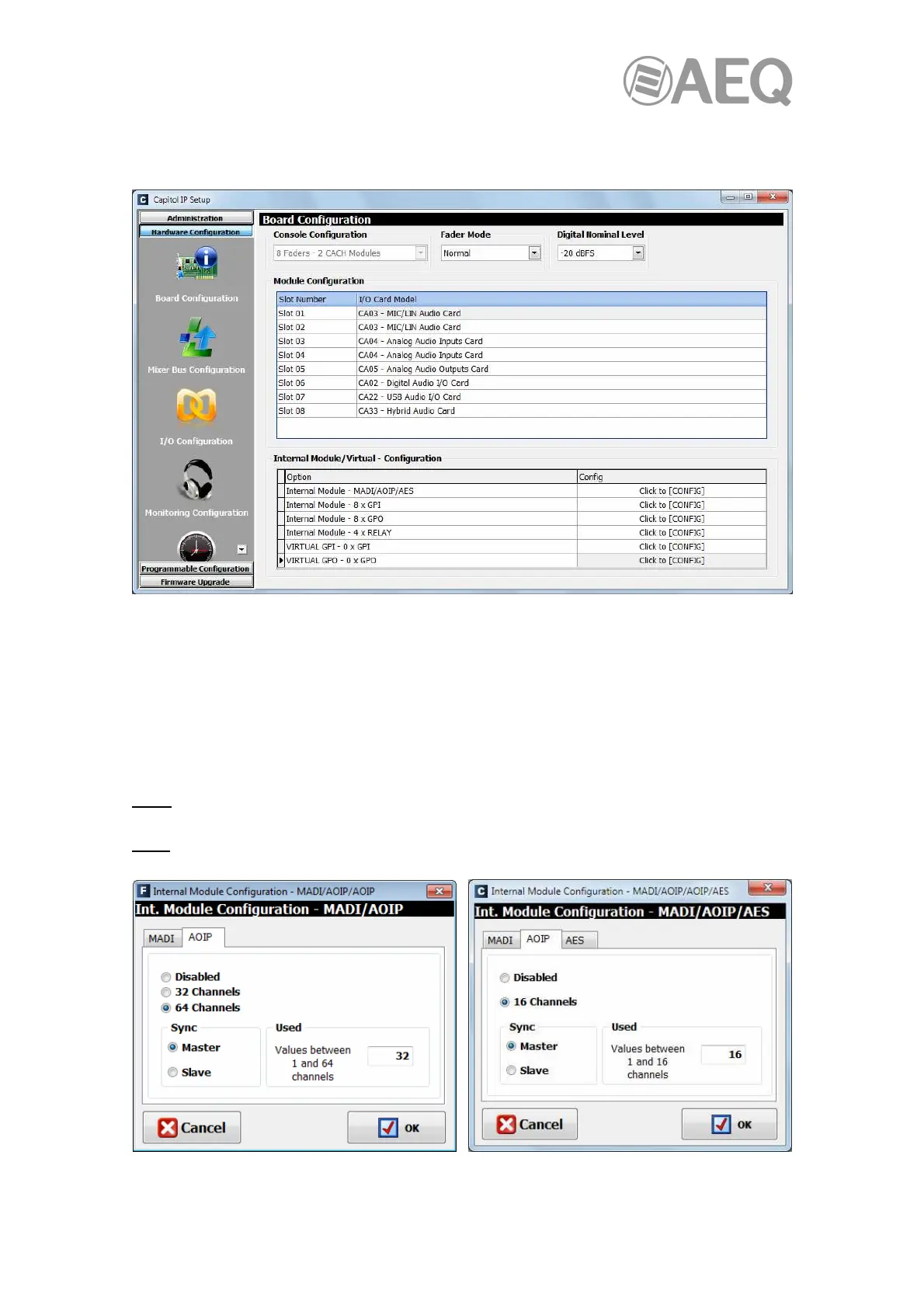

In order to configure the multichannel modules, first you need to access the "Internal Module -
MADI/AOIP/AES" option for CAPITOL IP, or "Internal Module - MADI/AOIP" in the FORUM
case, by clicking first "Click to [CONFIG]" and then clicking again on the "CONFIG" button that
will appear.
A window will appear then, comprising 2 tabs in FORUM and 3 in CAPITOL IP.
IMPORTANT NOTE: MADI and AoIP functions are mutually EXCLUDING, so they can not be
enabled at the same time. In order to change from MADI tab to AoIP tab, the first one must be
"Disabled", and the same the other way round.
MADI: the first tab allows the user to configure the synchronous AES 10 MADI link. For more
information, please consult the console user manual.
AOIP: the second tab allows the user to configure the asynchronous AoIP link based on
DANTE technology.
