AEQ Audio Over IP
Routing System
126

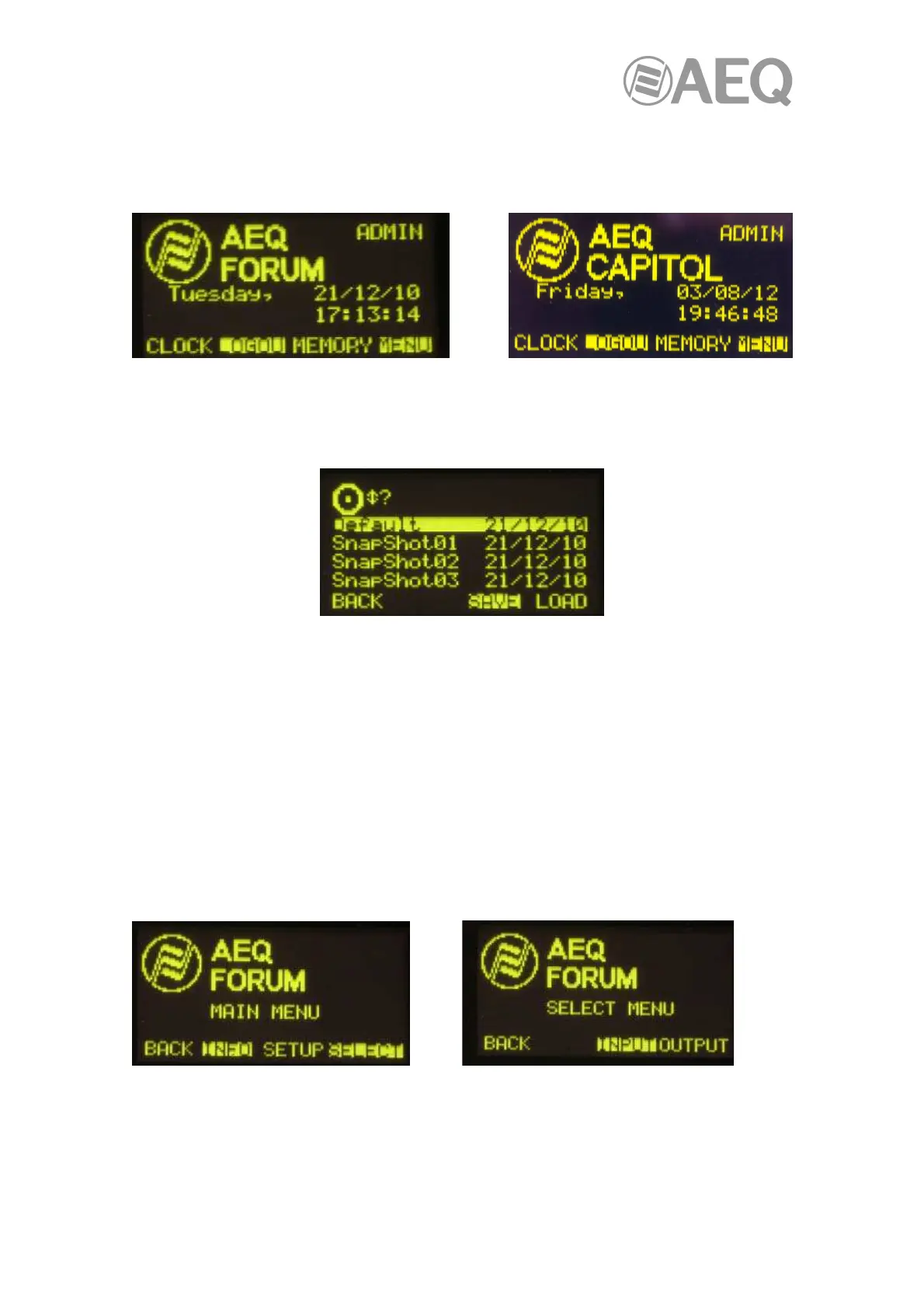

A3.3. Multichannel audio configuration internal menu options.
Among other options, the internal menu of the console allows for the online modification of the
routing configured from the setup software, and also the activation of the different memories or
snapshots.
A3.3.1. "MEMORY" menu.
This menu enables you to manage the configuration memories as snapshots. In two
consecutive screens, the 7 memory positions available for user-defined configurations are
shown.
The options available through the contextual keys below the screen, from left to right, are:
• "BACK": pressing this key allows you to return to the previous menu screen. No change
you may have made is saved.
• "SAVE": stores in the selected memory position the configuration of the console at that
moment. The system will ask for your confirmation (in the screen that appears, you can
confirm by pressing "SAVE" again or return to the memories list by pressing "BACK").
• "LOAD": allows you to load the configuration you stored previously in the selected
memory position. The system will ask for your confirmation (in the screen that appears,
you can confirm by pressing "LOAD" or return to the memories list by pressing "BACK").
You can also create snapshots with different configurations from the configuration software.
For more information, please consult the user's manual of the unit.
A3.3.2. Multichannel routing configuration.
Pressing the "MENU" key in the initial screen will take you to the "MAIN MENU" screen and,
from this one, by pressing "SELECT" you can access to the menu that allows you to perform
advanced configuration of audio inputs/outputs, internal routing and processes. There are two
options, "INPUT" and "OUTPUT", within "SELECT" menu.
